Best selling Power plugs + connectors from Ceag
This page always stays fresh and updates automatically.

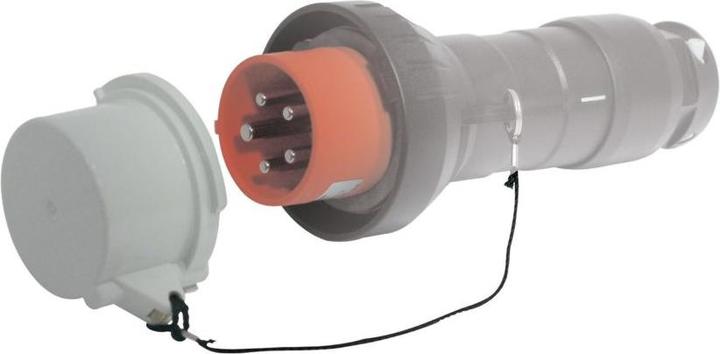

1. Ceag Locking flap
Ceag Security flap GHG 510 1901 R0005 Manufacturer :Ceag Safety damper Designation :Locking cover for 32A Type :GHG 510 1901 R0005 Rated current :32 A Number of poles :5 Protection class (IP) :IP66 Ceag safety cover GHG 510 1901 R0005 GHG 510 1901 R0005: more details Accessories for plugs and socketsProtective cap 32 A 5-pole , EAN: 4250217408656.
2. Ceag Ex-couplerZone1,32A,5pole,380-415V
Rated current: 32A
Contact format: 3PN+E
Plug/socket: Female
Operating voltage: 415 V
Mounting type: Cable mounting
Color: Black
IP class: IP54, IP66
Gender: Female
Housing orientation: Straight
Connection type: Screws
Operating temperature min: -20°C
Operating temperature max: +40°C
Series: GHG
BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039. CEAG coupling. CEAG Crouse-Hinds BS4343 (IEC309) plugs, sockets, and couplings are specifically designed for hazardous locations. Hazardous area versions offer mechanical advantages compared to common standard versions. The hazardous area version replaces the standard range. Patented plug and swivel connection protection up to IP66/67. Suitable for Zone 1 and Zone 2 environments and dusty Zone 21 and Zone 22 environments. CEAG standard hazardous area plugs mate with hazardous area sockets and couplings. CEAG hazardous area plugs do not mate with standard sockets and couplings. Couplings mate with enhanced and standard plugs.

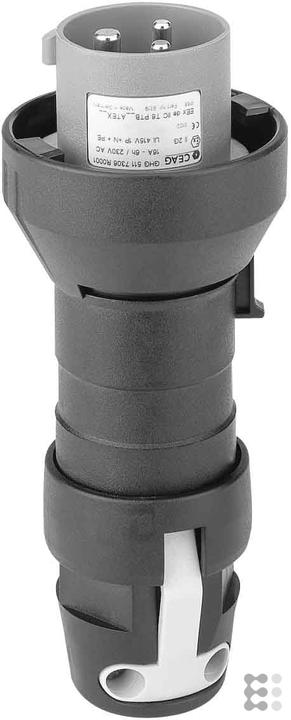

3. Ceag 2P+E hazardous area plug,16A 240V
The Ex-area plug 240V/16A from Ceag is a reliable solution for applications in explosive environments. This 3-pole plug is designed for use in Zone 1 and 21, offering a rated voltage of 415 V AC and a rated current of 16 A. With a robust construction made of polyamide and an IP66 protection rating, this plug is optimally protected against dust and water. The permissible ambient temperature ranges from -55 °C to +55 °C, making it suitable for extreme conditions. The cable entry has a diameter of 8 to 18 mm, allowing for flexible installation. The plug is equipped with a protective contact and meets the requirements of Ex-class IIC, making it a safe choice for use in hazardous environments.
- Ex-protected for Zone 1/21
- IP66 protection rating for high durability
- Permissible temperature from -55 °C to +55 °C
- Robust polyamide housing.
4. Ceag Safety st. Ex-plug GHG5422200V0000
The safety plug GHG5422200V0000 from Ceag is a high-quality Ex plug specifically designed for use in explosion-prone areas. With a rated voltage of 24 volts and a maximum rated current of 16 amperes, this plug provides a reliable connection for various applications. The polyamide housing ensures high resistance to environmental influences, while the IP54 protection class offers additional protection against dust and splashes. The plug is suitable for an ambient temperature range of -25 °C to 45 °C and meets the requirements of the ATEX Directive 2014/34/EU, making it ideal for use in industrial and commercial applications. The cable entry has a diameter of 9 to 17 mm, allowing for flexible installation. Weighing only 0.35 kg, the plug is easy to handle and install.
- ATEX certified according to 2014/34/EU for use in explosion-prone areas
- IP54 protection class for additional protection against dust and splashes
- Operating temperature range of -25 °C to 45 °C
- Housing material made of robust polyamide for high resistance
- Suitable for frequencies up to 400 Hz.
5. Ceag CEAGEX GHG 511 3506 R0001 Ex-coupling for zone 1/21, 16 A, 5-pole, GHG5113506R0001
The CEAGEX GHG 511 3506 R0001 Ex coupling is a high-quality female coupling specifically designed for use in explosion-prone areas of zones 1 and 21. With a rated current of 16 A and a 5-pole design, it provides a reliable connection for electrical applications. The coupling is rated for a voltage of up to 690 V AC and can support frequencies of up to 400 Hz. Its robust polyamide housing ensures high resistance to environmental influences, while the IP66 protection rating offers effective protection against dust and water. The permissible ambient temperature ranges from -20 °C to +55 °C, highlighting the versatility of the coupling in various applications. This coupling is an ideal solution for industrial applications where safety and reliability are of utmost importance.
- Ex-certified for Zone 1/21
- Robust polyamide housing
- IP66 protection rating for dust and water resistance
- Permissible ambient temperature of -20 °C to +55 °C
- Suitable for frequencies up to 400 Hz.
Power plugs + connectors
EUR689,–
Ceag CEAGEX GHG 511 3506 R0001 Ex-coupling for zone 1/21, 16 A, 5-pole, GHG5113506R0001
6. Ceag Ex-plug 5-pole 16A GHG5117506R0001
Ceag Safety St. Plug GHG 511 7506 R0001 Manufacturer :Ceag Sicherheitst. Designation :Plug 16A 5p. 380-415V Type :GHG 511 7506 R0001 Mains voltage :415 V Rated current :16 A No. of poles :5 Voltage according to EN 60309-2 :400 V (50+60 Hz) red Time position :6 h Identification colour :red Version :Plug Material of housing :Plastic Cable entry :straight Earth contact :yes Contact material :other Surface treatment Contacts :untreated For Ex-zone gas :1, 2 For Ex-zone dust :21, 22 Ex-class :IIC Ceag Safetyst. Plug GHG 511 7506 R0001: more details Ex-plug 16A-5P-6H for zone 1/21 Voltage: 690 V AC Rated current: 16A Number of poles: 5-pole Contents: 6 o'clock Permissible ambient temperature: -55 °C to +55 °C Protection class: I Protection class: IP66 Housing material: polyamide Housing colour: black Cable entry: Ø 12 - 21mm , EAN: 4250217426926.
7. Ceag Ex-plugZone1,32A,4pole,380-415V
Rated current: 32A
Contact format: 3P+E
Plug/Socket: Male
Operating voltage: 415 V
Mounting type: Cable mounting
Color: Black
IP Class: IP54, IP66
Gender: Male
Housing orientation: Straight
Connection type: Crimp
Operating temperature min.: -20°C
Operating temperature max.: +40°C
Serial number: GHG 512
BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039. CEAG connectors. Enhanced plugs, sockets, and couplings from CEAG Crouse-Hinds to BS 4343 (IEC 309) are specifically designed for hazardous areas. The Enhanced series offers mechanical advantages over the popular, widely used standard versions.
Features and benefits:
- Patented drop-lock connections
- Protection from media ingress to IP66/67
- Suitable for Zone 1 and Zone 2, and Zone 21 and Zone 22 dust applications
- CEAG standard hazardous area plugs mate with hazardous area jacks and couplers
- CEAG hazardous area plugs do not mate with standard jacks and couplers. The plugs only fit extended sockets and extended couplings.
8. Ceag Plug
Ceag safety plug GHG 511 7407 R0001
Manufacturer: Ceag Sicherheitst.
Designation: Plug 480-500V 4p
Type: GHG 511 7407 R0001
Mains voltage: 500 V
Rated current: 16 A
Number of poles: 4
Voltage according to EN 60309-2: 500 V (50+60 Hz) black
Time position: 7 h
Identification colour: black
Design: Plug
Material of housing: Plastic
Cable entry: straight
Earth contact: yes
Contact material: other
Surface treatment contacts: untreated
For Ex zone gas: 1, 2
For Ex zone dust: 21, 22
Ex class: IIC
Ceag safety plug GHG 511 7407 R0001: further details plug 16A-4POL-7H, zone 1/21, cable entry: 8 - 21 mm diameter.

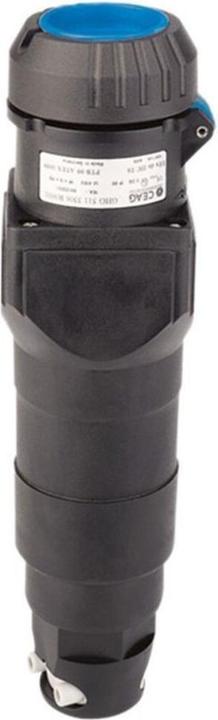

9. Ceag 2P+E hazardous area coupler,16A 240V
Type: Coupler
Plug/Socket: Plug, Socket
Mounting type: Cable mounting
Contact format: 2P+E
Operating voltage: 250 V
Rated current: 16 A
IP class: IP66
Housing material: Nylon
Contact material: Brass
Contact coating: Nickel
Strain relief: Yes
Gender: Female, Male
Hazardous area approval: ATEX
CEAG coupling. CEAG Crouse-Hinds BS4343 (IEC309) plugs, sockets, and couplings are specifically designed for hazardous locations. Hazardous area versions offer mechanical advantages over common standard versions. The hazardous area version replaces the standard range. Patented plug and swivel connection provides protection up to IP66/67. Suitable for Zone 1 and Zone 2 environments and for dusty Zone 21 and Zone 22 environments. CEAG standard hazardous area plugs mate with hazardous area sockets and couplings. CEAG hazardous area plugs do not mate with standard sockets and couplings. Couplings mate with enhanced and standard plugs.
10. Ceag Ex-plug
The CEAG GHG5177506R0001 Ex plug is a specially designed connector for use in explosion-hazardous areas of Zone 2. With a rated current of 32 Amperes and a rated voltage of 415 Volts, this 5-pole plug provides a reliable and safe connection for electrical devices. Made from robust polyamide, the plug ensures high resistance to mechanical influences and chemicals, making it ideal for industrial applications. The design complies with the IEC 60309 standard, guaranteeing high quality and safety. Its use in demanding environments is supported by the careful selection of materials and thoughtful construction, providing the plug with a long lifespan and reliability.
- Suitable for explosion-hazardous areas of Zone 2
- Made from robust polyamide for high resistance
- Complies with the IEC 60309 standard for safety and quality
- 5-pole design for versatile applications.
