Best selling Surge protection from Hager
On this page you'll find a ranking of the best Hager products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Hager Surge arrester
Hager Surge Protection Device SPB413
Manufacturer: Hager
Designation: Surge Protection Device
Type: SPB413
DC Network Form: No
IT Network Form: No
TN Network Form: No
TN-C Network Form: No
TN-C-S Network Form: No
TN-S Network Form: Yes
TT Network Form: Yes
Number of Conductors (excluding ground): 4
Nominal Surge Current (8/20): 20 kA
Maximum Surge Current (8/20): 40 kA
Nominal Voltage AC: 400 V
Highest Continuous Operating Voltage AC: 275 V
Max. PV Voltage: 0 V
Protection Level: 1.35 kV
Protection Level L-N: 1.35 kV
Protection Level N-PE: 1.6 kV
Max. Overcurrent Protection Device for Wiring (Fuse): 125 A
Max. Overcurrent Protection Device for V-Wiring (Fuse): 80 A
Short-Circuit Strength (Isccr): 25 kA
Integrated Short-Circuit Protection: No
Integrated Selective Short-Circuit Protection for gG Fuse: 125 A
Integrated Pre-Fuse: No
Leakage Current Free: No
Mounting Type: TH35 Rail
Size: 4 TE
Max. Conductor Cross-Section Rigid (Single-Core/Multi-Stranded): 35 mm²
Max. Conductor Cross-Section Flexible (Fine-Stranded): 25 mm²
With Remote Monitoring Contact: No
Device Display: Optical
Test Class Type 2: Yes
Protection Class (IP): IP20
Hager Surge Protection Device SPB413: Additional Details
Surge protection device T2 4P 40kA TT/TN-S fault indication. Type 2 surge protection device in a 3+1 configuration, designed to protect three-phase TT and TN-S systems. Consisting of a fourfold base unit, three protective plugs with temperature-monitored high-performance varistors, and one plug as an overall short-circuit spark gap with a dynamic disconnection device. Optical fault indication on the plugs in case of overload. Connections for the active conductors from below and for ground/PE from above. Biconnect connections for connecting round conductors and wiring bridges. Labeling option on the base unit.
2. Hager T1+T2+T3 4P 12.5kA SPA412FM TNS/TT
The Hager SPA412 surge arrester is a highly advanced device designed to protect electrical installations from surges. With a nominal voltage of 415 volts and a nominal discharge current of 50 kA, this combined arrester offers a reliable solution for safeguarding electrical systems. It is suitable for mounting on a DIN rail and meets the requirements of test class Type 3. The protection level of 1.5 volts ensures that connected devices are protected from harmful voltage spikes. The Hager SPA412 is a Type 1 and Type 2 surge arrester, suitable for both TNS and TT systems. With its compact dimensions and IP20 protection rating, it is ideal for use in various applications where space and safety are critical.
- Combined surge protection for Type 1 and Type 2
- Nominal discharge current of 50 kA for high safety
- Protection level of only 1.5 volts for optimal device protection
- Suitable for DIN rail mounting, space-saving and efficient.
3. Hager SPV340
The Hager SPV340 is a Type 2 surge protector specifically designed to protect electrical systems from transient overvoltages. With its three-part design, this device is ideal for mounting on a DIN rail and provides a reliable solution for the protection of PV systems. The SPV340 ensures a high nominal voltage of 1000 volts and a nominal discharge current of 15 kiloamperes, making it a robust choice for various applications. The IP20 protection rating ensures that the device can be used in dry indoor environments, while the protection level of 3.7 volts offers effective safeguarding against overvoltages. Made in Germany, the Hager SPV340 combines quality and reliability in a compact design.
- Type 2 surge protection for reliable safeguarding
- Three-part design for easy DIN rail installation
- Nominal discharge current of 15 kA for high load capacity
- Protection level of 3.7 V for effective surge protection
- Made in Germany for high quality standards.
4. Hager SPA001N Plug-in module N-PE Uc 350V
The Hager SPA001N plug-in module N-PE Uc 350V is a high-quality accessory for distribution cabinets that provides a reliable connection between the neutral and protective conductors. With a rated voltage of 240 volts and a maximum input voltage of 350 volts, this module is suitable for various applications in electrical installations. It features a compact design that allows for easy integration into existing systems. The protection class IP20 ensures that the module is intended for use in dry indoor environments. With a high interrupting capacity of 100 kiloamperes, it also offers effective protection against overloads and short circuits. This product is manufactured in Germany and meets high quality standards.
- Protection class IP20 for use in dry indoor environments
- High discharge current capacity of 100 kA
- Compact design for easy integration into distribution cabinets
- Reliable connection between neutral and protective conductors.
5. Hager SPA800 Combination arrestor T1+T2 3P
The Hager SPA800 combined surge protector T1+T2 3P is a highly advanced surge protection device specifically designed for use in electrical installations. This combined surge protector offers effective protection against surges caused by lightning strikes or other electrical disturbances. With a rated voltage of 400 volts and a testing class of type 1, it is suitable for various applications. The combined surge protector is designed for mounting on a DIN rail, which facilitates installation and provides a space-saving solution. With a nominal discharge current of 50 kA and a lightning discharge current of 25 kA, the SPA800 ensures reliable performance and safety. The protection class IP20 ensures that the combined surge protector can be used in dry indoor environments, while its compact design allows for easy integration into existing systems.
- Combined surge protection type 1 for effective protection
- Nominal discharge current of 50 kA for high load capacity
- Lightning discharge current of 25 kA for additional protection
- Mounting on DIN rail for easy installation
- Protection class IP20 for use in dry indoor environments.
6. Hager SPA080
The Hager SPA080 is a high-quality plug-in module designed for use in modern electrical systems. With an input voltage of 264 volts and an output voltage of also 264 volts, this module provides reliable performance for various applications. It is compatible with smart home systems, making it a flexible solution for integration into intelligent buildings. The module has compact dimensions of 113.4 mm in height, 64.2 mm in length, and 35.5 mm in width, facilitating installation in different environments. The package includes a plug-in module T1+T2, suitable for a wide range of electrical applications. The Hager SPA080 is characterized by its high quality and durability, making it a trusted choice for professionals and technology enthusiasts who value safety and efficiency.

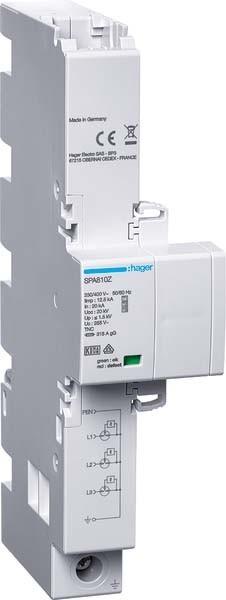

7. Hager SPA810Z Combination arrestor T1+T2+T3 3P
The Hager SPA810Z combination surge protector T1+T2+T3 3P is a highly advanced device designed for effective surge protection in electrical installations. This combination surge protector integrates the protective functions of types 1, 2, and 3, providing comprehensive protection against transient overvoltages that can occur due to lightning strikes or switching operations. With a rated voltage of 400 volts and a lightning impulse current of up to 12.5 kiloamperes, the combination surge protector ensures reliable safeguarding of electrical systems. The IP20 protection rating ensures that the device is suitable for use in dry indoor environments. The Hager SPA810Z is designed for use in three-phase systems and offers a protection level of only 1.5 volts, making it an effective solution for the safety of electrical devices and systems. Manufactured in Germany, this combination surge protector meets high-quality standards and is a valuable addition to any electrical installation.
8. Hager SPB215
The Hager SPB215 is a Type 2 surge protector specifically designed to protect electrical systems from transient overvoltages. With a compact design suitable for mounting on a DIN rail, this device offers a reliable solution for safeguarding electrical systems in residential and commercial buildings. The SPB215 can handle nominal surge currents of up to 40 kA, ensuring a high level of protection. The IP20 protection rating makes it suitable for use in dry indoor environments. With a nominal voltage of 240 V and a protection level of 1.35 V, the Hager SPB215 is an effective choice for anyone looking to protect their electrical installations from surges.
- Type 2 surge protection for reliable safeguarding
- DIN rail mounting for easy installation
- Nominal surge current of 40 kA for high durability
- IP20 protection rating for use in dry indoor environments.
9. Hager SPK700Surge arrester coaxial for SAT+BK system.
The Hager SPK700 surge arrester is a reliable protection device specifically designed for use in satellite and broadband cable systems. It provides effective protection against surges caused by lightning strikes or other electrical disturbances. With a nominal voltage of 20 volts and a nominal discharge current of 2.5 kA, this surge arrester ensures high performance and safety. Installation is straightforward on a DIN rail, making it easy to integrate into various electrical systems. The SPK700 is designed for indoor use and has an IP20 protection rating, making it ideal for dry environments. Its compact dimensions allow it to fit easily into standard distribution boxes, enhancing the safety of your electrical installations.
- Surge protection for satellite and broadband systems
- Nominal discharge current of 2.5 kA
- Easy installation on DIN rail
- IP20 protection rating for indoor use.
10. Hager Combination arrestor SPA800Z
Hager combi arrester SPA800Z
Manufacturer: Hager
Designation: Combination arrester 3P T1+T2+T3
Type: SPA800Z
Mains form DC: No
Mains form IT: No
Mains form TN: No
Mains form TN-C: Yes
Mains form TN-C-S: No
Mains form TN-S: No
Mains form TT: No
Mains form other: No
Number of poles: 3
Lightning impulse current (10/350 µs): 7.5 kA
Maximum continuous voltage AC: 255 V
Rated voltage AC: 400 V
Max. PV voltage: 0 V
Protection level: 1.5 kV
Protection level L-N: 1.5 kV
Consecutive current extinguishing capacity: 25 kA
Mounting type: Busbar
Size: Other
Max. conductor cross-section rigid (single): No
Conductor cross-section rigid (solid/multi-stranded): 50 mm²
Max. conductor cross-section flexible (fine-stranded): 35 mm²
Remote signalling: No
Signalling on the device: Optical
Test class: Type 1, 2, and 3
Integrated back-up fuse: No
Protection class (IP): IP20
Hager combined lightning current and surge arrester SPA800Z: further details
Combined lightning current and surge arrester T1+T2+T3 3P Iimp 12.5 kA TNC. Combination arrester for use in the pre-metering area according to VDE-AR-N 4100. Type 1 + type 2 arrester according to DIN EN 61643-11. Resistive current-free, encapsulated spark gap technology. Can be mounted directly on 40 mm busbar system. Compatible with infeed adapter and busbar box for voltage tapping for RfZ and APZ. Optional remote signalling contact can be retrofitted.
