Best Busch-Jaeger products in the Timers category
On this page you'll find a ranking of the best Busch-Jaeger products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Busch-Jaeger 6422 UJ-214
This compact timer is suitable for roller shutter and blind drives with mechanical or electronic limit switches. It does not contain an extension unit input. The product consists of the blind compact timer 6422 U, a Reflex SI central disc for the timer control element 6435-214 and a Reflex SI cover frame, single 2511-214.
2. Busch-Jaeger Busch-Jäger central disc with rotary knob, with imprint 1770-914-102
The Busch-Jaeger central plate with rotary knob (model 1770-914-102) is a mechanical special switch specifically designed for use in Busch timers (model 1070 U). This central plate allows for easy and precise control of time functions with a runtime of up to 15 minutes. It features a simple, alpine white design that harmoniously integrates into various interiors. Installation is facilitated through a clamp, making it easy to mount. With an IP20 protection rating, the central plate is suitable for use in dry indoor environments. Its compact dimensions, with a width and height of 55 mm and a slim depth of 11.8 mm, enable flexible integration into existing installations.
- Designed for Busch timers (model 1070 U)
- Mechanical rotary knob for precise time control
- Runtime of up to 15 minutes
- Easy installation via clamp.
3. Busch-Jaeger Timer 15 min 1070U 1070U (1070U)
Busch-Jaeger Timer Module 1070 U
Manufacturer: Busch-Jaeger
Description: Timer Module 15 min
Type: 1070 U
Composition: Basic element
Number of contacts as switches: 2
Design: Mechanical
Time setting: 0 min
With semiconductor output: No
Mounting type: Other
Material: Other
Material quality: Other
Halogen-free: Yes
Surface protection: Untreated
Color: Other
Transparent: No
Suitable for protection class (IP): IP20
Nominal voltage: 250 V
Rated current: 16 A
Minimum depth of device box: 32 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Busch-Jaeger Timer Module 1070 U: Additional details
Runtime: 15 min
For time-controlled switching of electrical consumers. Mechanical operation (rotary operation). Screw terminals for connection wires. After the set time has elapsed, the closed contacts will reopen. For screw mounting only. To be installed only in conjunction with commercially available flush-mounted device boxes according to DIN 49073. No expansion option, only screw mounting on the flush-mounted box through keyholes.
EAN: 4011395019405.
4. Busch-Jaeger BJ - Insert - Blind control
The Busch-Jaeger blind control is a mechanical timer designed for the manual and time-controlled operation of roller shutters, blinds, awnings, and lighting. With a high-resolution display and backlighting, the control unit allows for easy programming and adjustment of switching times. The integrated Astro program function offers the ability to set individual astro shifts and blocking times to meet lighting conditions and personal needs. The control is power failure-proof, ensuring that all programmed switching times are retained even during power outages. Additionally, the blind control features a reserve of over 10 years for time and date, ensuring reliable usage. The combination with other Busch-Jaeger products enables extended functionality, such as a temperature and brightness-dependent sun protection feature.
- Easy programming via high-resolution display with backlighting
- Adjustable individual astro shift and blocking time
- Power failure-proof storage of switching times
- Reserve for time and date of over 10 years
- Freely adjustable twilight and running times for shading and ventilation.
5. Busch-Jaeger Busch-Jäger 62731/UJ-914-WL Venetian blind flex, set, WL 62731/UJ-914-WL
The Busch-Jäger 62731/UJ-914-WL Jalousie flex is an innovative set for controlling roller shutters, blinds, and awnings. This product allows for both manual and automated control and offers a variety of features that enhance comfort and user-friendliness. With a built-in timer that includes an astronomical function, users can set individual schedules for controlling their blinds. Operation is conveniently done via a wireless push-button control element, allowing for easy integration into existing smart home systems. Remote control is facilitated through a smartphone or tablet app, enabling flexible control from anywhere. The set includes all necessary components for installation and is suitable for mounting in standard flush-mounted device boxes.
- Manual and automated control of blinds and roller shutters
- Integrated timer with astronomical function
- Remote control via Bluetooth using smartphone/tablet app
- Compatible with smart home systems like IFTTT and Google Assistant
- Easy installation in standard flush-mounted device boxes.
Timers
EUR135,14
Busch-Jaeger Busch-Jäger 62731/UJ-914-WL Venetian blind flex, set, WL 62731/UJ-914-WL
6. Busch-Jaeger UP timer 1071U 2-pole 120min
Busch-Jaeger Timer Module 1071 U
Manufacturer: Busch-Jaeger
Designation: Timer Module 120 min
Type: 1071 U
Composition: Base element
Number of contacts as switches: 2
Design: Mechanical
Time setting: 0 min
With semiconductor output: No
Mounting type: Other
Material: Other
Material quality: Other
Halogen-free: Yes
Surface protection: Untreated
Color: Other
Transparent: No
Suitable for protection class (IP): IP20
Nominal voltage: 250 V
Rated current: 16 A
Min. depth of the device box: 32 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Busch-Jaeger Timer Module 1071 U: Additional details
Runtime: 120 min
For time-controlled switching of electrical consumers. Mechanical operation (rotary operation). Screw terminals for connection wires. After the set time has elapsed, the closed contacts will reopen. Only install in conjunction with commercially available flush-mounted device boxes according to DIN 49073. No expansion option, only screw fastening on the flush-mounted box via keyholes.

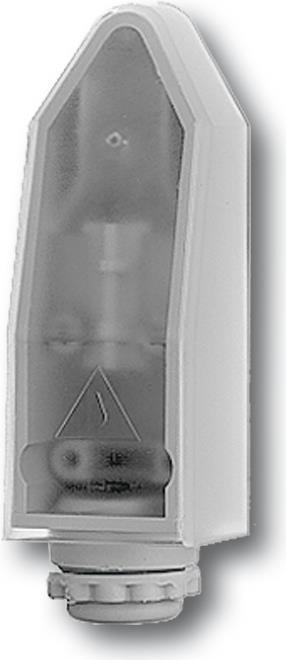

7. Busch-Jaeger Busch Jaeger 2CKA006410A0203 Smart Home ambient sensor
For Busch-Jalousiecontrol® II device 6411U/S-101. Measurement range: 5-50,000 Lux. Main features: Measurement of ambient conditions, sunlight intensity, sunlight measurement range 5 - 50,000 Lux. Product color: Gray. Compatible products: Busch 6411U/S-101. Certification: RoHS. Weight and dimensions: Depth 27 mm, Height 73 mm.
8. Busch-Jaeger Short-time tuner insert 6465 U-101 6410-0-0391
Busch-Jaeger short-time timer insert 6465 U-101
Manufacturer: Busch-Jaeger
Designation: Short-time timer insert count-down
Type: 6465 U-101
Assembly: Other
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Power reserve: 12 h
Rated voltage: 230 V
Frequency: 50 Hz
Max. power: 2300 W
Power: 2300 W
Busch-Jaeger short-time timer insert 6465 U-101: Further details
For time-programmed switching of electrical loads. With operating element, without central disc. Minimum timer time: 1 second. Maximum timer time: 9:59:59 hours. Only in connection with commercially available flush-mounted device boxes according to DIN 49073, mount or Busch-Jaeger art. no. 3040 flush-mounted box masonry, 3050 flush-mounted box cavity wall or 3060 flush-mounted box concrete. EAN: 4011395164914.

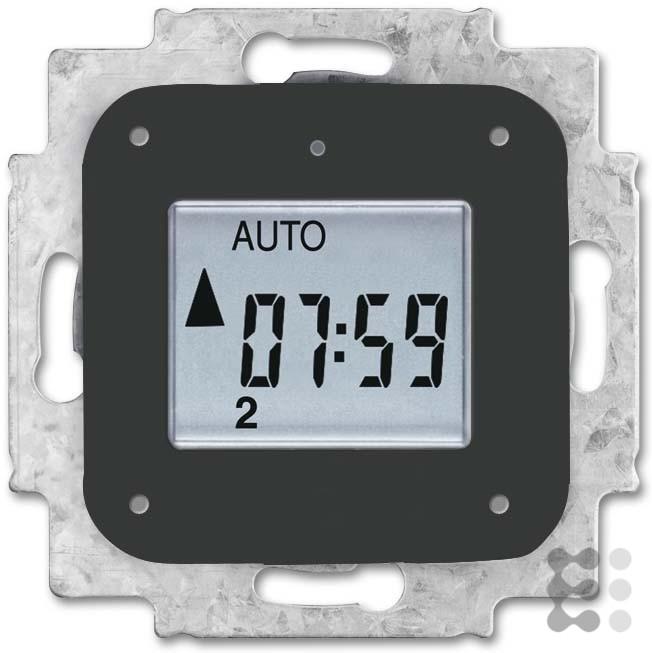

9. Busch-Jaeger 6422 U
Busch-Jaeger compact blind timer 6422 U
Manufacturer: Busch-Jaeger
Designation: Compact blind timer
Type: 6422 U
Integrated timer: Yes
With memory function: Yes
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Matt
Colour: Black
Suitable for protection type (IP): IP20
Max. switching capacity: 690 W
Power reserve: 63000 h
Rated voltage: 230 V
Mounting type: Claw/screw mounting
Busch-Jaeger compact timer for shutters 6422 U: Further details
Suitable for roller shutter and venetian blind drives with mechanical or electronic limit switching. Without extension unit input. Running time: 3 min. N-wire connection required. For manual and time-controlled switching of roller shutters and venetian blinds. Memory function for easy storage of switching times. Manual operation of the shades possible at any time. Simple setting via display with segment display and background lighting. Factory preset switching times, individual adjustment possible. Two switching times per day can be freely set for each day of the week. Automatic summer/winter time changeover (can be switched off). Switching times and programme are stored in a power-failure-proof memory. Power reserve for time and date greater than 10 years. Simple switchover for manual, automatic, and holiday operation. Programming only possible with the operating element plugged in and live. EAN: 4011395271100.

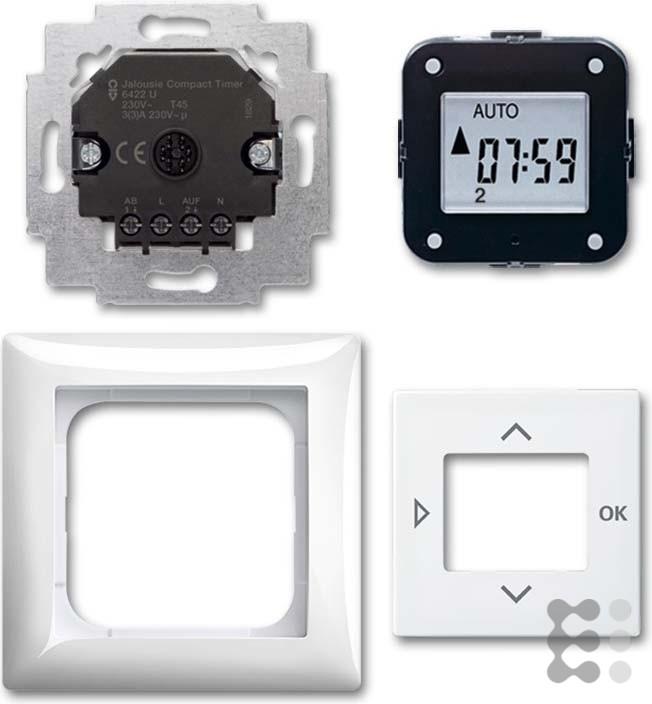

10. Busch-Jaeger Busch-Jäger Compact blind timer, complete set, blind management, blind control without slave
Busch-Jaeger compact blind timer 6422 UJ-914
Manufacturer: Busch-Jaeger
Designation: Compact blind timer
Type: 6422 UJ-914
Integrated timer: Yes
With memory function: Yes
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Matt
Colour: Black
Suitable for protection class (IP): IP20
Max. switching capacity: 690 W
Power reserve: 63000 h
Rated voltage: 230 V
Mounting type: Claw/screw mounting
Busch-Jaeger compact timer for shutters 6422 UJ-914:
Suitable for roller shutter and venetian blind drives with mechanical or electronic limit switching. Without extension unit input. Consisting of blind compact timer 6422 U. Consisting of Busch-balance central plate for timer operating element 6435-914. Consisting of Busch-balance SI cover frame, 1-fold 1721-914.
EAN: 4011395271148.
Timers
EUR75,97
Busch-Jaeger Busch-Jäger Compact blind timer, complete set, blind management, blind control without slave
