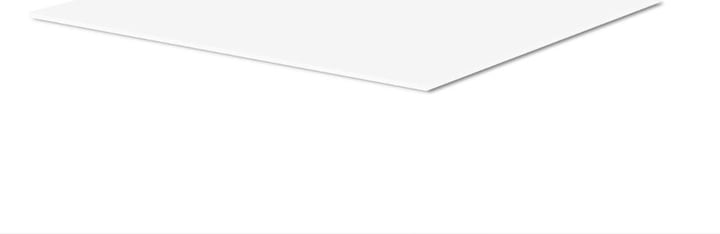

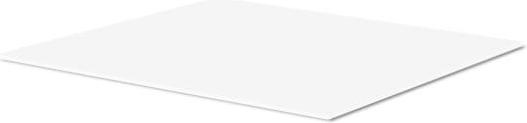

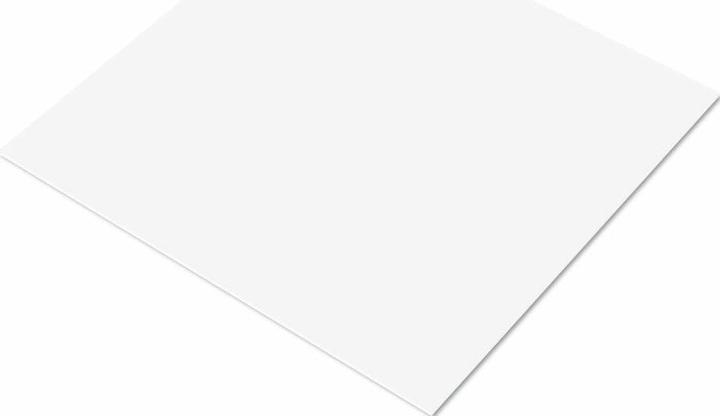

Alphacool offers a wide range of thermal pads to enable effective heat dissipation from electrical components. The Apex heat transfer pad is the most powerful option and can reliably dissipate heat. Thanks to its high compressibility, it can also be used for a wide range of applications. The silicone-based Ultrasoft Apex heat transfer pad from Alphacool has optimal compressibility. Due to its low hardness and natural stickiness, it can be perfectly adapted to surfaces and compensates for unevenness between components. In this way, it significantly improves heat transfer.

Thanks to its unique material composition, the risk of silicone bleeding is significantly reduced with the Apex heat transfer pad. It can cool reliably for a much longer period of time without suffering any significant loss of performance.

Due to its excellent electrical insulation, the thermal pad is suitable for cooling electrical components in a wide range of devices such as electric vehicles, autopilot systems, mobile phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunication devices, access points, memory modules, and many others.

Technical Data:
Thermal pad dimensions (L x W x H): 100 x 100 x 1mm
Thermal conductivity (ASTM D5470): 17.8 W/mK (±10%)
Hardness (ASTM D2240): 65 (Shore 00) (±5)
Operating temperature: -50 to ~150°C
Volume resistivity (ASTM D257): 6 x 10^9 Ohm-m
Dielectric constant (ASTM D149): 4 KV/mm (±10%)
Density (ASTM D792): 3.5 g/cm³ (±10%)
Elongation (ASTM D412): 20%
Weight loss (ASTM E595): less than 1%
Flame class (UL 94): V-0
Colour: light grey.
