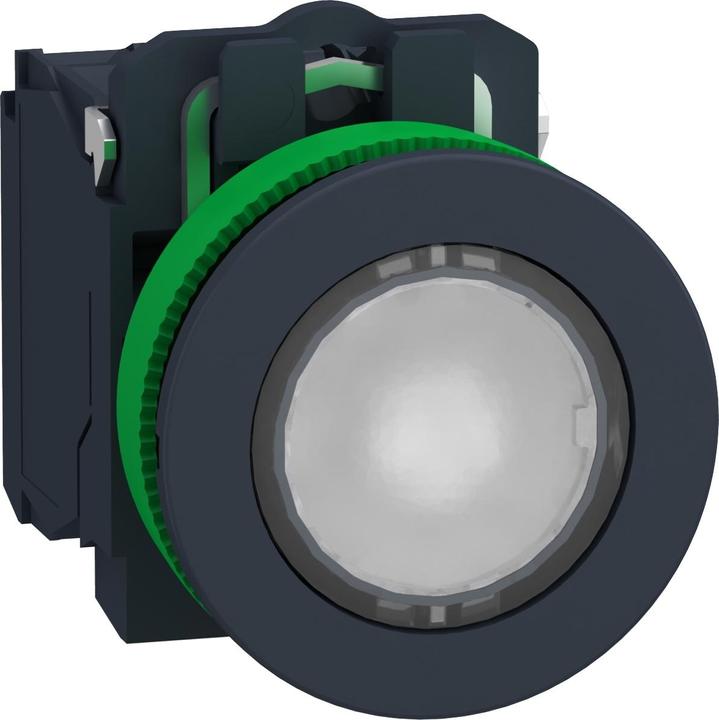

Schneider Electric Illuminated Push Button XB5FW31G5

Manufacturer: Schneider Electric
Description: Illuminated push button, white, 30 mm, 110 V, IP69K
Type: XB5FW31G5
Number of command points: 1
Button design: flat
Button color: white
Lens design: round
Hole diameter: 30.5 mm
Suitable for lighting: yes
Latching switch function: no
Momentary: yes
Lamp supply voltage: 120 V
Number of contacts as normally closed: 1
Number of contacts as normally open: 1

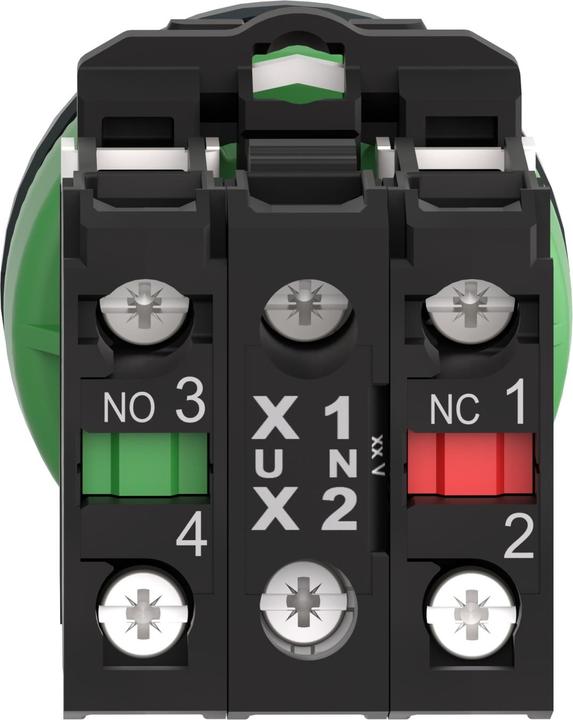

Electrical connection type: screw connection
With front ring: no
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): 4X

Schneider Electric Illuminated Push Button XB5FW31G5: Additional Details
The Harmony XB5F series made of plastic offers a wide range of 30 mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, the modular design of the devices allows all components to be purchased as individual elements, as well as optionally for 22 mm mounting size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated push button in white features a universal LED and requires a supply voltage of 120 V AC. The button has 1 normally closed contact and 1 normally open contact. Installed in a 30 mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information about material contents, environmental impacts, and circular economy, which support your sustainability goals.
