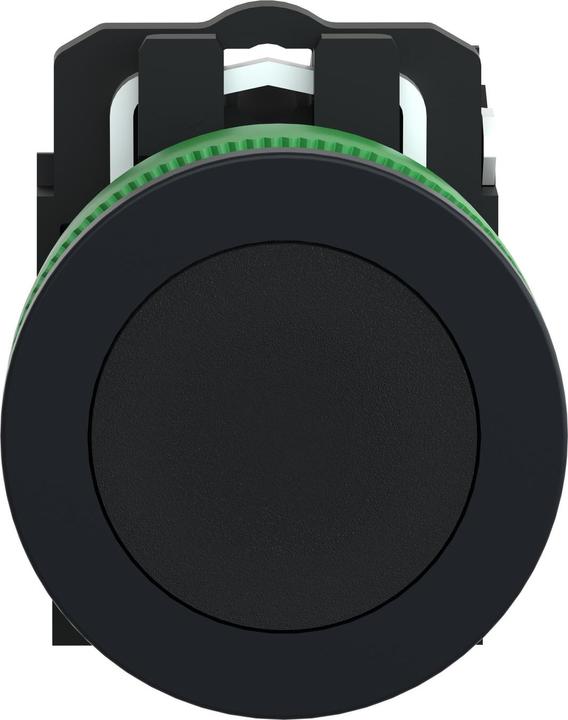

Schneider Electric Push Button Complete XB5FA21

Manufacturer: Schneider Electric
Designation: Complete black push button, 30mm, 1S, IP69K
Type: XB5FA21
Number of command points: 1
Button shape: flat
Button color: black
Lens shape: round
Hole diameter: 30.5 mm
Suitable for lighting: no
Latching switch function: no
Momentary: yes
Number of contacts as normally open: 1
Electrical connection type: screw terminal
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): 4X

Schneider Electric Push Button Complete XB5FA21: further details
The Harmony XB5F series made of plastic offers a wide range of 30mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements, and they can optionally be adapted for 22mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. Installed in a 30mm hole, the device is connected via screw terminals on the back of the product. The antimicrobial property of the surface also prevents the growth of viruses and bacteria on the actuator of the product. This push button features 1 normally open contact and is unmarked. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
