Astro Strobel Coax-Cable CSA 111A Box250 ECA

Manufacturer: Astro Strobel
Description: Coax-Cable Class A+, white
Type: CSA 111A Box250 ECA
Inner conductor diameter: 1.13 mm
Inner conductor material: Copper
Inner conductor surface: Bare
Inner conductor class Kl.1: Solid
Outer conductor diameter: 4.8 mm
Outer conductor material: Aluminium
Outer conductor surface: Bare
Outer conductor form: Foil + braiding
Dielectric: Polyethylene, foamed (Foam PE)
Number of shield layers: 3
Reinforcement: No
Sheath material: Polyvinyl chloride (PVC)
Specification of sheath material: Other
Sheath colour: White
Fire behaviour class according to EN 13501-6: Eca
Smoke emission class according to EN 13501-6: None
Dripping behaviour class according to EN 13501-6: None
Acid emission class according to EN 13501-6: None
Halogen-free according to EN 60754-1/2: No
UV-resistant: No
Characteristic impedance: 75 Ohm
Outer diameter approx.: 6.8 mm
Min. permissible bending radius, flexible use with forced guidance: 68 mm
Min. permissible bending radius, flexible use/free movement: 68 mm
Min. permissible bending radius, stationary use/fixed installation: 35 mm
Suitable for installation in the ground: No
Permissible cable outer temperature during installation/handling: -5 to 40 °C
Permissible cable outer temperature after installation without exposure: -40 to 70 °C

Astro Strobel coaxial cable CSA 111A Box250 ECA: further details

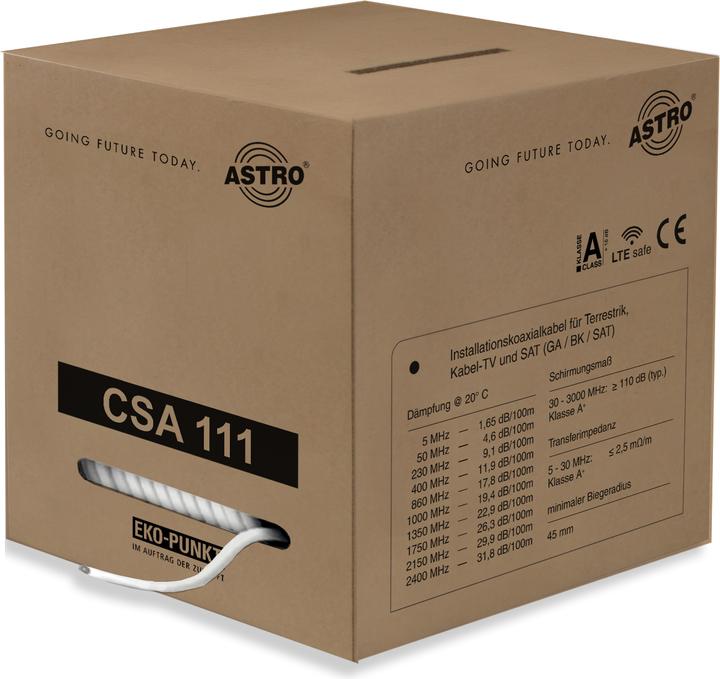

Coaxial cable, triple shielded (2x AL-foil + AL-braid), 250 m unroll box, 1.13 mm solid copper inner conductor, 6.9 mm sheath PVC white, Class A+, fire protection class Eca.
