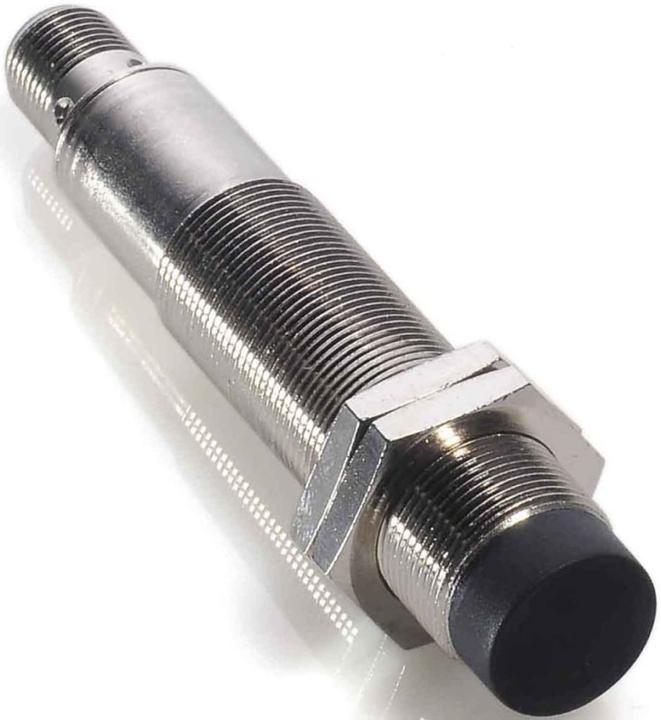

Bernstein Proximity Switch KIN-M18PS/008-KLS12

Manufacturer: Bernstein
Designation: Proximity Switch
Type: KIN-M18PS/008-KLS12
Sensor Length: 97 mm
Sensor Diameter: 18 mm
Mechanical Installation Condition for Sensor: non-flush
Switching Distance: 8 mm
Suitable for Safety Functions: no
Switching Function Type: Normally Open
Switch Output Type: PNP
Electrical Connection Type: M12 Connector
Actuation Type: metallic target
Interface Type: none
Interface Type for Safety-Related Communication: none
Housing Design: Cylinder, Threaded
Housing Coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Supply Voltage: 10..60 V
Voltage Type: DC
Switching Frequency: 200 Hz
With Monitoring Function for Downstream Devices: no
Housing Material: Metal
Pressure Resistant: no
Explosion Protection Category for Gas: none
Explosion Protection Category for Dust: none

Inductive proximity switches according to DIN EN 60947-5-2. They detect the presence of metallic, electrically conductive objects in their sensing field without contact. The robust sensors can be used in various industrial applications, such as in speed applications or for position detection.
