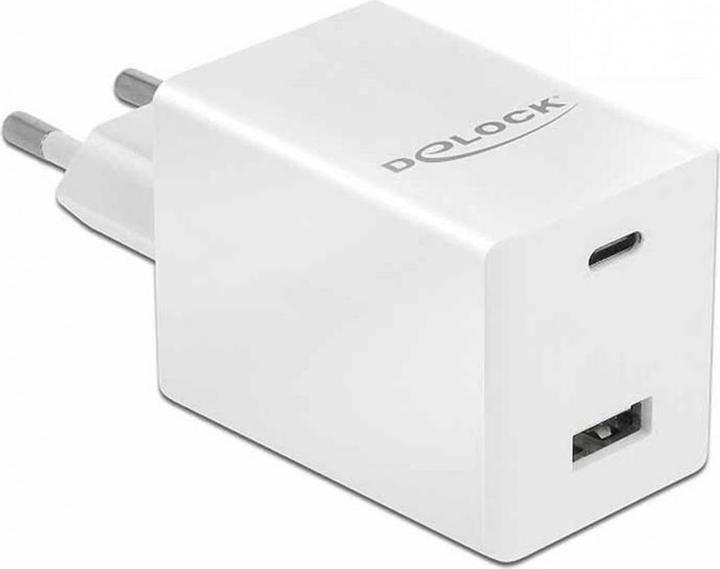

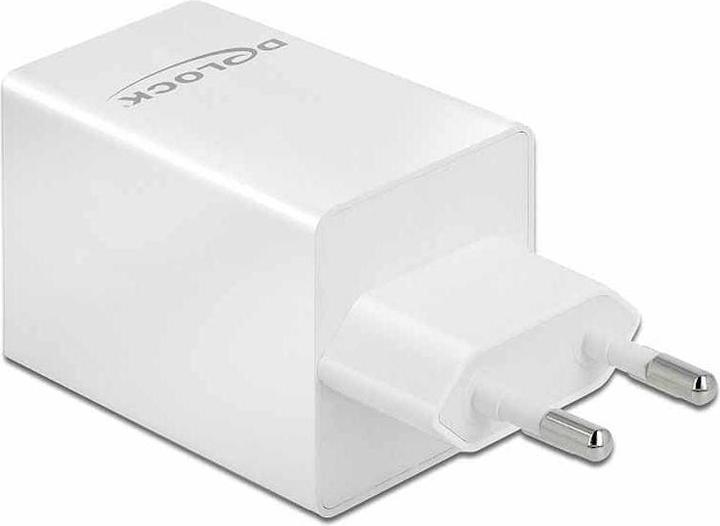

This USB charger from Delock can be used to power two USB devices. One port is equipped with USB Type-C Power Delivery (PD), allowing supported devices to be charged with up to 45 watts. Additionally, there is a USB Type-A port with fast charging technology of up to 18 watts for smartphones.

GaN Technology
By using innovative GaN (gallium nitride) transistors, the efficiency is improved compared to conventional silicon technology. This allows for high output power even with very compact dimensions.

Specifications

• Connections:

1 x USB Type-C socket
1 x USB Type-A socket
1 x CEE 7/16 plug

• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.0 A
• Output Option 1:

USB-C 5.0 V / 9.0 V 3.0 A, 15.0 V 3.0 A, 20.0 V 2.25 A (45.0 W)
USB-A no load

• Output Option 2:

USB-C 5.0 V / 9.0 V 3.0 A, 15.0 V 2.0 A, 20.0 V 1.5 A (30.0 W)
USB-A 5.0 V 3.0 A, 9.0 V 2.0 A, 12.0 V 1.5 A (18.0 W)

• Total output power: max. 48.0 W
• Average efficiency in operation 85.32 %
• Efficiency at low load (10 %) 80.90 %
• Power consumption at no load 0.095 W
• Overload protection
• Overcurrent protection
• Overheating protection
• Short circuit protection
• Color: white
• Dimensions without plug (LxWxH): approx. 39.5 x 37.5 x 36.0 mm

Package contents

• USB charger
• User manual.
