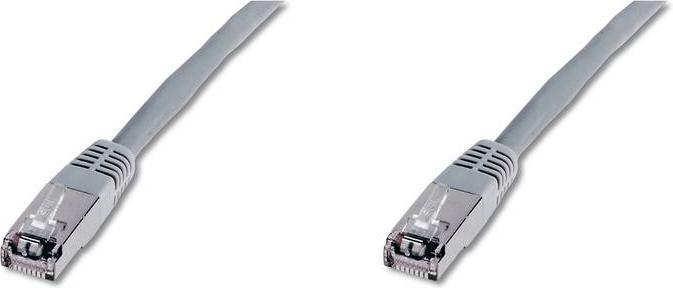

DIGITUS Patch Cable Cat6 S/FTP DK-1644-300

Manufacturer: DIGITUS
Description: Patch cable Cat6 S/FTP LSOH, AWG 27/7, 30 m
Type: DK-1644-300
Cable Type: S/FTP
Category: 6
Length: 30 m

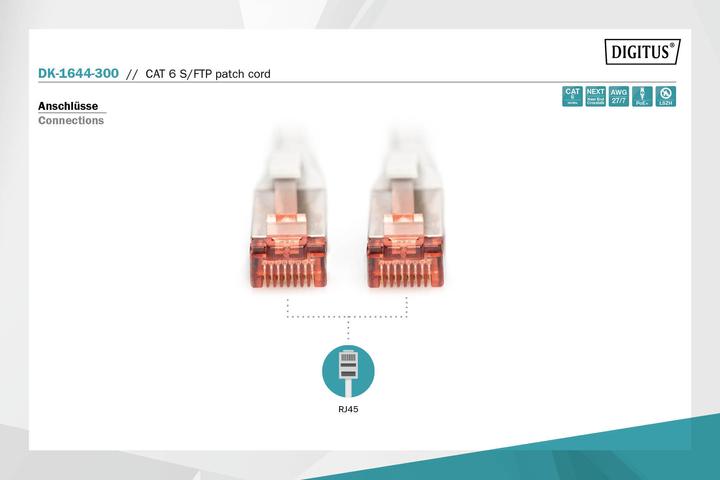

Connector Type Connection 1: RJ45 8(8)
Connector Type Connection 2: RJ45 8(8)
Outer Jacket Color: gray
Bend Protection Boot: molded
Latch Protection: yes
Color of Bend Protection Boot: gray
Flame Retardant: yes
Halogen Free: yes
Oil Resistant according to EN 60811-404: no

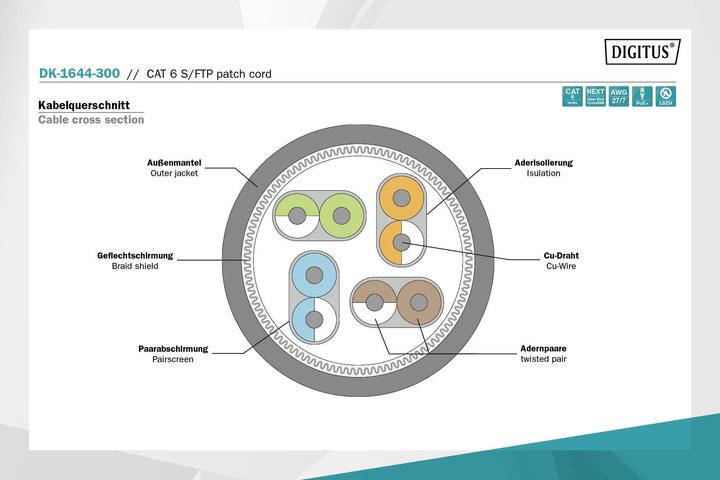

Cable Construction: 4x2
AWG Cross Section: 27
Pin Assignment: 1:1
NVP Value: 76%

The DIGITUS Patch Cable Cat6 S/FTP DK-1644-300 is a CAT 6 S-FTP patch cable made of copper with a LSZH outer jacket (Low Smoke Zero Halogen) for optimal fire behavior and low smoke emission. It has a length of 30 m and is gray. The transparent red-colored connector with metal shielding allows for easy identification of category 6 (250 MHz).

The DIGITUS Category 6 Class E patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 6 standard. They ensure that the cable installation complies with the ISO & EN Channel specification and provide excellent performance in DIGITUS CAT 6 cabling. The performance has been tested up to 250 MHz, including performance characteristics such as Near-End Crosstalk (NEXT).

The patch cables are specifically designed to meet all requirements in various application areas. Each cable is equipped with a molded bend protection boot with strain relief, which features latch protection to prevent the cables from snagging and the latch from breaking off the connector. Easy identification of category 6 is facilitated by the red coloring of the connectors.
