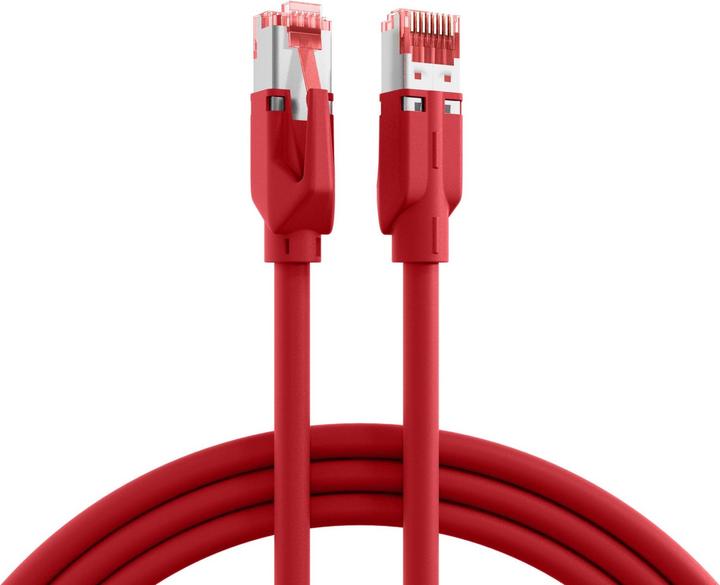

EFB-Elektronik Patch Cable Cat.6A K8052 2m red

Manufacturer: EFB-Elektronik
Description: Patch Cable Cat.6A 2xHRS TM21 2m red
Type: K8052.2m rt
Cable Type: S/FTP
Category: 6A (TIA)
Length: 2 m
Connector Type Connection 1: RJ45 8(8)
Connector Type Connection 2: RJ45 8(8)
Sheath Color: red
Bend Protection Sleeve: attached
Latch Lever Protection: yes
Color of Bend Protection Sleeve: red
Flame Retardant Design: yes
Oil Resistant according to EN 60811-404: no
Cable Construction: 4x2
AWG Cross Section: 27
Pin Assignment: 1:1

The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and features gold-plated contacts.

Technical Product Features:

• Cat.6A (TIA) S/FTP cable with AWG27/7
• Sheath material made of halogen-free LSZH
• Fire Protection: flame retardant, halogen-free, low smoke
• Connector: RJ45 to RJ45 with latch lever protection
• Gold-plated contacts

The sheath of the shielded patch cable is made of halogen-free LSZH material. Additionally, the cable provides the option for power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at, and 4PPoE according to IEEE802.3bt. The wiring of the red TM21 connectors is 1:1 and follows TIA/EIA 568B. The Ethernet cable features copper conductor material and is ideally suited for use in structured building cabling, Industrial Ethernet, and data centers. The frequency range is 500 MHz.
