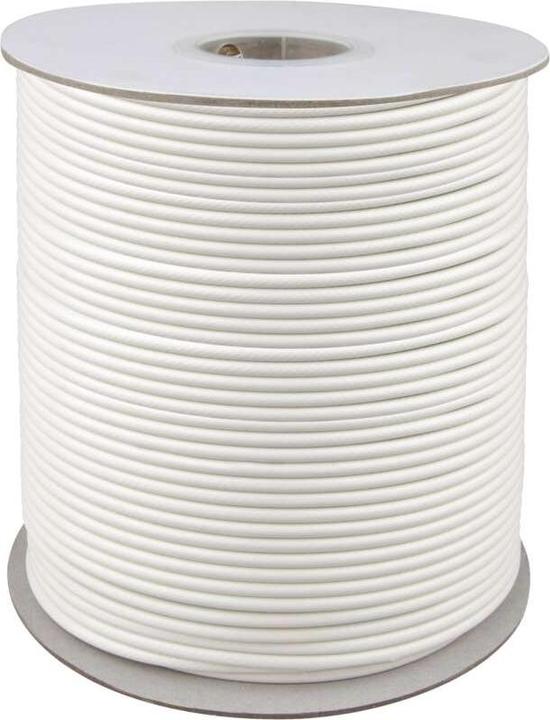

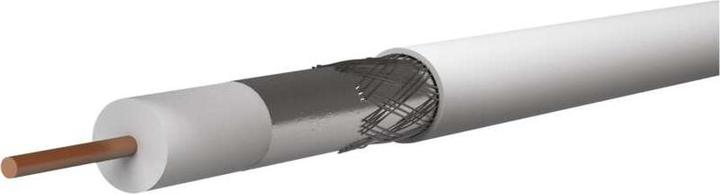

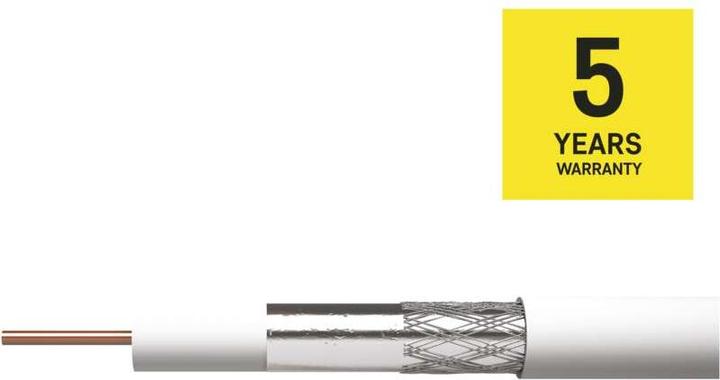

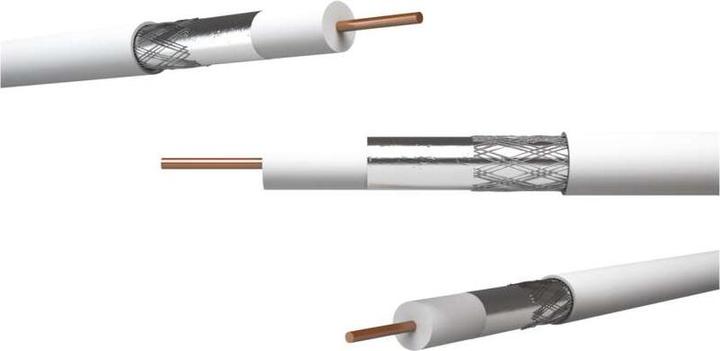

Type of coaxial cable: CB100F, Impedance: 75 Ohm, Usage: internal wiring, universal cable, Material of inner conductor: copper (Cu), Diameter of inner conductor: 1.0 mm, Dielectric type, average: FPE 4.6 mm, Number of shields: 2, Shielding I foil: 1× Al/PES, Material of shielding: tinned copper (CuSn), Number of wires in shielding: 48× 0.12 mm, Diameter of shielding: 48× 0.12 mm², Shield coverage: 38%, Diameter of cable jacket: 6.5 mm, Material of cable jacket: PVC, Color of cable jacket: white, Capacitance (pF/m): 54, Velocity factor: 0.82, Max. attenuation at 20 °C (dB/100m) 10 MHz: 2, Max. attenuation at 20 °C (dB/100m) 100 MHz: 7, Max. attenuation at 20 °C (dB/100m) 450 MHz: 14.1, Max. attenuation at 20 °C (dB/100m) 650 MHz: 17.5, Max. attenuation at 20 °C (dB/100m) 860 MHz: 20.5, Max. attenuation at 20 °C (dB/100m) 1,000 MHz: 21, Max. attenuation at 20 °C (dB/100m) 2,000 MHz: 31, Min. reflection attenuation at 20 °C (dB) 300–600 MHz: 23, Min. reflection attenuation at 20 °C (dB) 600–900 MHz: 20, Min. attenuation of dusk (dB) 10 ~ 800 MHz: 75, Max. DC resistance at 20 °C (Ohm/km) - inner core: 23.7, Max. DC resistance at 20 °C (Ohm/km) - outer core: 38.2, Insulation resistance between the cores at 20 °C (MOhm/km): 500, Min. bending radius single/multiple: 30/60 mm, Weight (kg/km): 40.5, Min. reflection attenuation at 20 °C (dB) 10–300 MHz: 25, Storage temperature: -20 °C to +75 °C, Installation temperature: +5 °C to +60 °C, Packaging - Length: 250 m, Packaging - Type of spool: PVC spool in paper box, Packaging - Designation of footage: 1–250 m, Recommended types of connectors - F-connectors Quickfix (plugged): *K7220, Recommended types of connectors - F-connectors screwed: *K7331, FPE = foam dielectric, Fire behavior class: Eca, Hazardous substances: none, Sales packaging: 250 m, box, Warranty period: 5 years.
