Quantity discount
Gelid GP-Extreme - 12 W/m-K - Gray - 80 mm - 40 mm - 0.5 mm
0.50 mm, 12 W/m KPrice in EUR including VAT
Free shipping starting at 30,–

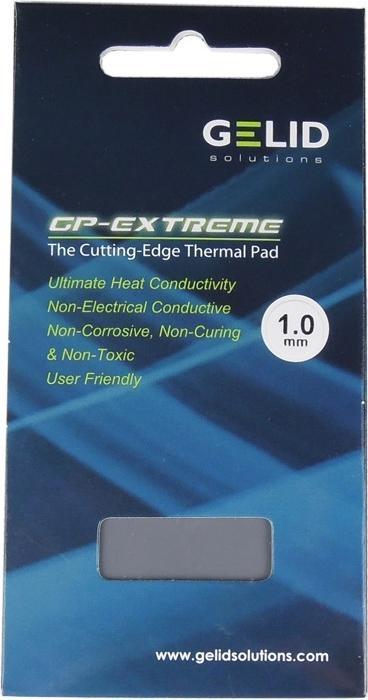

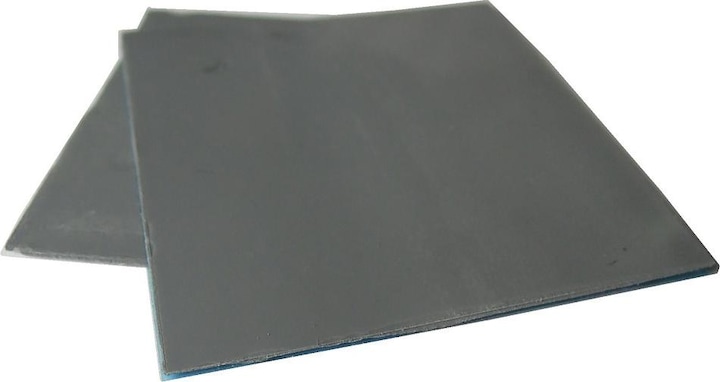

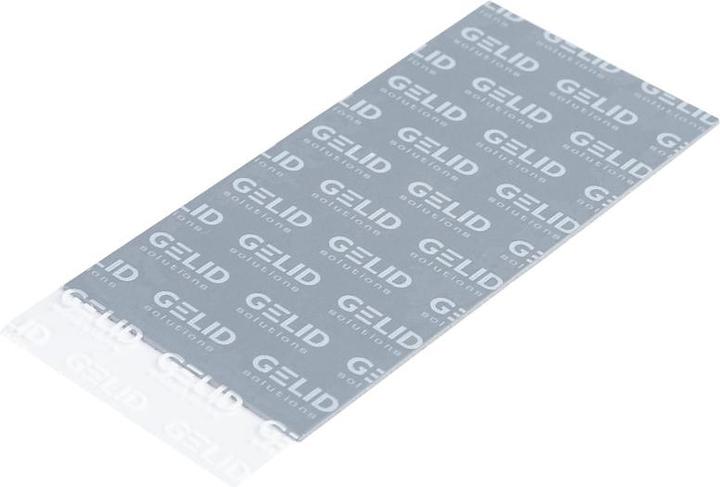

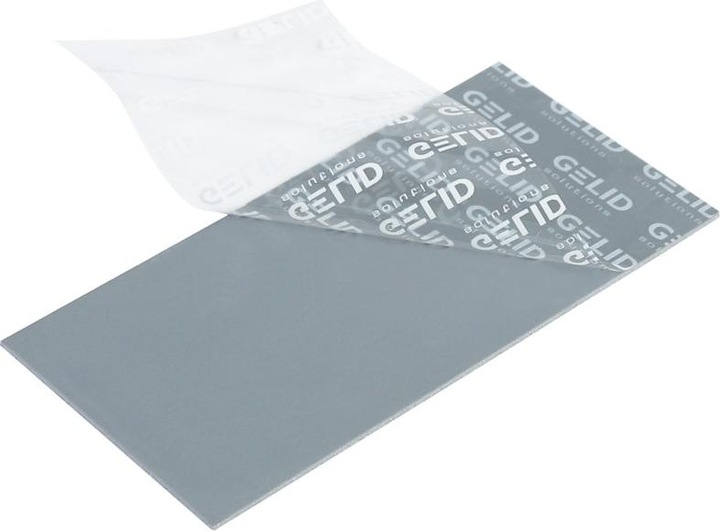

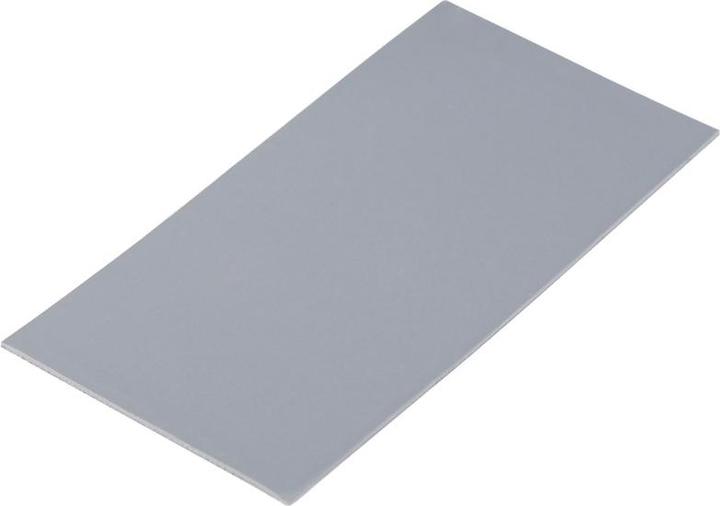

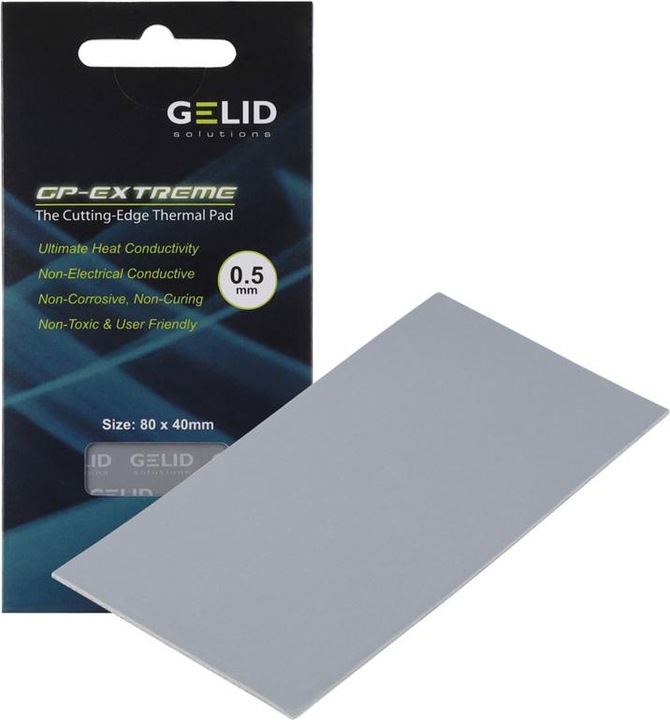

The GP-Extreme is designed to provide perfect thermal contact to the heatsink when installed on PCBs with height differences and uneven surfaces, such as microcontroller units, memory ICs, analog ICs, and other SMD components. Thanks to its softness and ultimate thermal conductivity, the GP-Extreme fills spaces properly and offers the best performance in its class. The GP-Extreme is non-electrically conductive, non-corrosive, non-curing, and non-toxic. It ensures easy application, and the thermal pad dimensions of 80×40 mm optimally fit large PCB surfaces of VGA cards, high-speed HDDs, and other densely packed devices.
Length | 40 mm |
Width | 80 mm |
Thickness | 0.50 mm |
Density | 2.80 g/cm³ |
Shore hardness | Shore 00-35 |
Electrical conductivity | Non-conductive (0 S/m) |
Item number | 15720408 |
Manufacturer | Gelid |
Category | Thermal pads |
Manufacturer no. | TP-GP01-A |
Release date | 22.4.2021 |
External links |
Colour | Grey |
Thermal paste type | Heat conducting pad |
Thermal conductivity | 12 W/m K |
Density | 2.80 g/cm³ |
Shore hardness | Shore 00-35 |
Electrical conductivity | Non-conductive (0 S/m) |
Items per sales unit | 1 x |
CO₂-Emission | |
Climate contribution |
Length | 40 mm |
Width | 80 mm |
Thickness | 0.50 mm |
Weight | 10 g |
Length | 13.20 cm |
Width | 6.80 cm |
Height | 0.60 cm |
Weight | 8 g |
