Output voltage: 12V DC
Output current: 4.2A
Rated power: 50W
Input voltage: 120 to 373V DC, 85 to 264V AC
Mounting type: Cabinet mounted
Enclosure type: Closed
Length: 99mm
Width: 82mm
Depth: 30mm
Hum and noise voltage: 120mV SS
Load regulation: ±0.5%
Mains regulation: ±0.5%
Temperature min: -30°C
Temperature max: +70°C
Weight: 230g

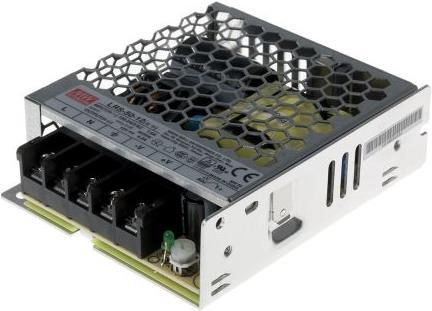

Compliant with EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1, and GB4943. The Mean Well LRS switch mode power supply provides a 50W output. The LRS-50 series of sealed 50W power supplies are low-profile and highly efficient. Designed with a metallic grid and air convection for optimum heat dissipation, it is suitable for demanding applications. The LRS-50 series offers high efficiency and extremely low power consumption at zero load. It features 5-G vibration resistance for installation in challenging environments.

Features and benefits include universal AC input with a 5-second overvoltage protection input of 300V AC, up to 89% efficiency, and less than 0.2W power consumption at zero load. Free air convection cooling is also provided.

Typical applications include industrial automation and control equipment, mechanical and electrical equipment, and household appliances.
