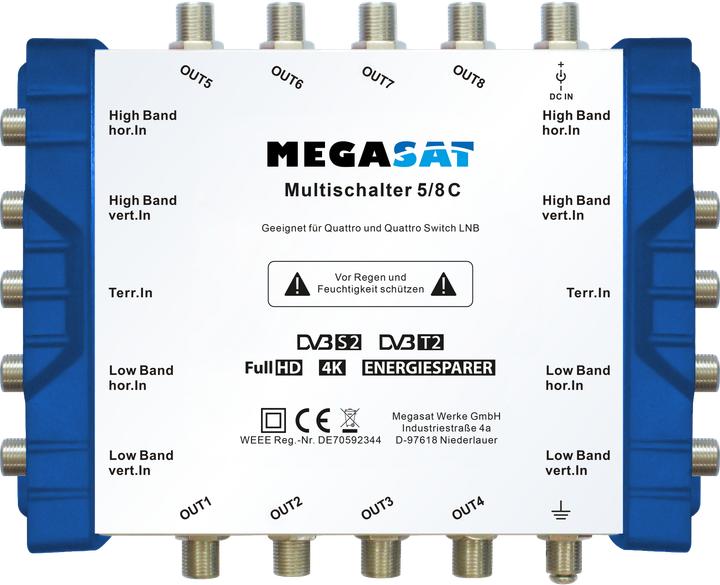

The Megasat Cascade Multiswitch 5/8 C is suitable for receiving signals from one satellite and can support up to 8 participants. Additionally, it can be expanded with another multiswitch.

Multiswitches of the highest quality with the latest technology: A multiswitch allows you to receive signals from multiple satellites simultaneously over a coaxial cable. One LNB is required per satellite. It does not matter whether the second LNB is installed on the same satellite dish (multifeed) or on a second dish. The signals are bundled by the multiswitch and forwarded to the connected receivers.

The Megasat multiswitch series is equipped with the latest technology. All switches are compatible with Quad LNB (Quattro-Switch LNB) and allow you to integrate the multiswitch into an existing system later on.

Low attenuation and high isolation of the reception levels ensure the highest picture and sound quality even over long cable runs.

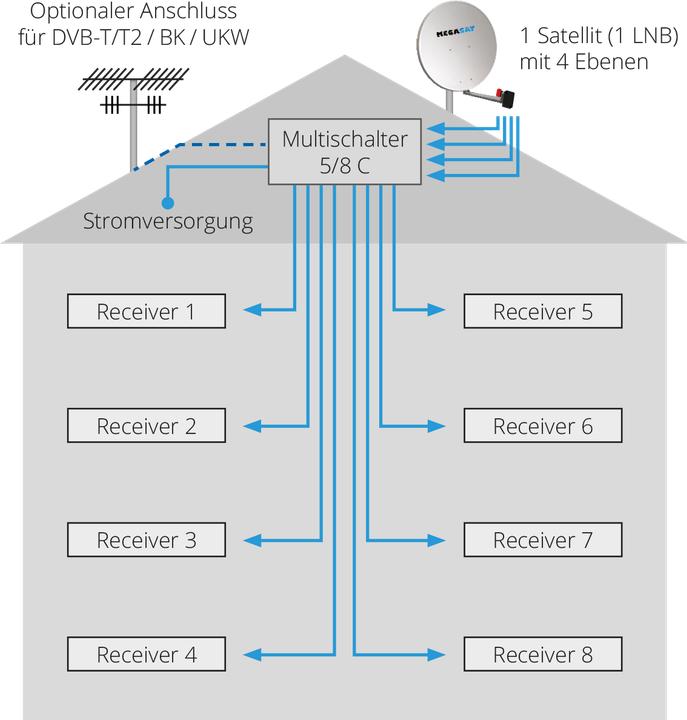

Cascade multiswitches can be connected in series. This allows you to customize the home distribution according to your needs. Whether in a central or floor distribution: The Megasat cascade multiswitches always provide a flexible solution.

Technical specifications:
Frequency range DVB-S/S2: 950 – 2250 MHz
Frequency range DVB-T/T2: 47 – 862 MHz
Attenuation DVB-S/S2: 3 dB
Attenuation DVB-T/T2: 4 dB
Switching isolation: 28 dB
Isolation DVB-S/S2: 30 dB
Isolation DVB-T/T2: 25 dB
Output level DVB-S/S2: 100 dBμV
Output level DVB-T/T2: 85 dBμV
LNB power output: max. 800 mA
Power supply: AC 90 ~ 260 V, DC 18 V, 47 ~ 63 Hz
Operating temperature: -20° C ~ +50° C

Inputs:
1 × DVB-S/S2 (Horizontal Low)
1 × DVB-S/S2 (Vertical High)
1 × DVB-S/S2 (Vertical Low)
1 × DVB-T/T2
1 × DC In

Outputs:
8 × DVB-S/S2 (to the receiver)
1 × DVB-S/S2 (Horizontal High)
1 × DVB-S/S2 (Horizontal Low)
1 × DVB-S/S2 (Vertical High)
1 × DVB-S/S2 (Vertical Low)
1 × DVB-T/T2

Included in delivery: Megasat Multiswitch 5/8 C, power supply, user manual.
