Niedax Central suspension ZCB 200
0.21 mPrice in EUR including VAT
Free shipping starting at 30,–

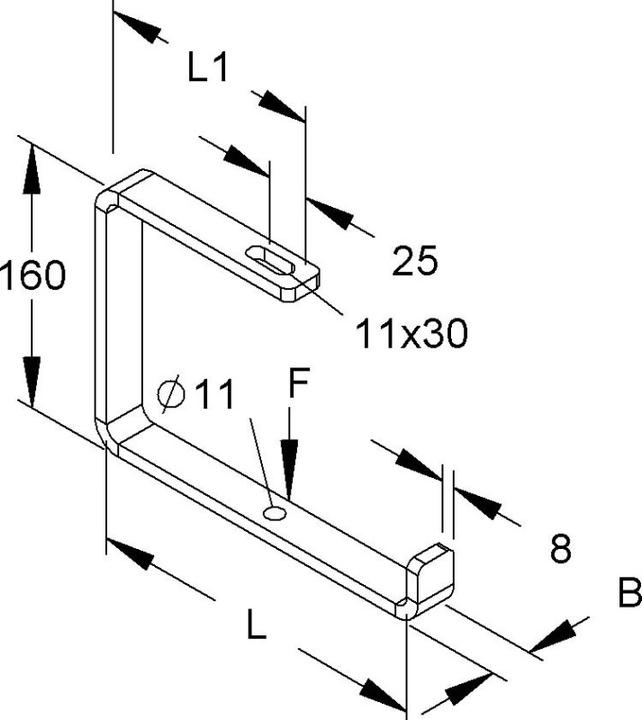

Central suspension, C-bracket for ceiling mounting. Central suspension using a threaded rod of 10 mm. The load capacity specifications apply only with adequate anchoring to the supporting substrate. Dimensions approx. Upper bracket length L1 outer dimension 135 mm. Mounting hole in the upper bracket 11 30 mm. Height outer dimension 160 mm. Support length inner dimension 210 mm. Width 25 mm. Material thickness: mm. Load capacity at L2 0.6 kN. Material steel, hot-dip galvanized according to DIN EN ISO 1461. ZCB 200.
Item number | 23023260 |
Manufacturer | Niedax |
Category | Network cables |
Manufacturer no. | ZCB 200 |
Release date | 7.11.2022 |
Material | Hot-dip galvanised in accordance with DIN EN ISO 1461, Steel |
Material of the isolation | Metal |
Temperature range | -20° - 120° C |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 10 x |
Scope of delivery | Angle 90 °, by means of threaded rod M 10, C-bracket for central cable tray suspension, Central suspension, Design of cantilever arm, Height 160 mm, Hot-dip galvanised surface protection, Length 210 mm, Material grade other, Material steel, Operating temperature -20..120 °C, Safe working load according to IEC 61537 600 N, Suitable for cable support system width 50 - 200 mm, Suitable for functional integrity no, Width 25 mm |
Length | 0.21 m |
Width | 25 mm |
Depth | 210 mm |
Weight | 9000 g |
