Active GPS/GLONASS Antenna - GPS-0001-V2-01

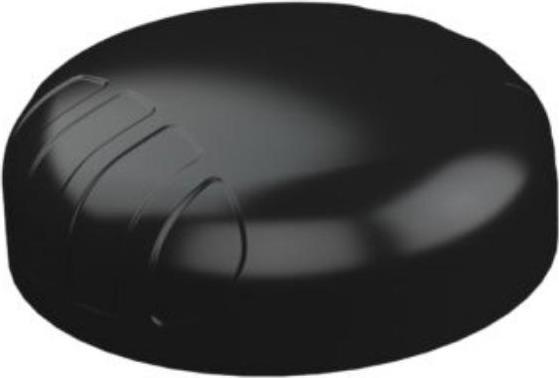

The new V2 version of Poynting's GPS-1 antenna offers a low-profile antenna designed for use in the IoT/M2M and transportation markets, where robust and accurate positioning as well as timing synchronization are required. The new housing of the active GPS antenna allows for easy implementation with numerous mounting options. The frequency band of the GPS/GLONASS system is 1575.42/1600 MHz, and the system operates at temperatures of up to -40 °C.

Electrical specifications of the GPS/GLONASS antenna:

• Frequency range (GPS): 1575.42 MHz/1600 MHz
• Gain (max.): 21 +/- 2 dBi
• VSWR: ≤ 1.5:1
• Supply voltage: 2.7-3.3 V
• Supply current: 5-15 mA
• Noise figure: ≤ 1.5 dB
• Nominal impedance: 50 Ohm
• Polarization: RHCP
• Band attenuation filter: 12 dB min. f0+50 MHz, 16 dB min. f0-50 MHz
• Cable: RTK-031
• Connector: SMA connector
• Voltage: 2.7 - 3.3 V
• Max. power: 50 W
• Coaxial cable and connector type: GPS
• Cable length: 2 m +/- 5%
• Coaxial cable type: RTK-031
• Connector type: SMA (male)

* The coaxial cables and connectors are factory-mounted on the antenna.

Package contents:

• Antenna: A-GPS-0001-V2-01
• Mounting bracket: Threaded stud 20 (up to 60 mm clamping thickness), surface mount, and magnetic mount

Mechanical specifications:

• Product dimensions: 99.3 x 36 mm
• Packed dimensions: 150 x 150 x 120 mm
• Weight: 0.312 kg
• Packaging weight: 0.443 kg
• Radome material: PC + ABS (halogen-free)
• Radome color: Pantone Black
• Mounting type: Threaded stud 20, pole, wall, surface, and magnetic mount

Environmental specifications, certifications, and approvals:

• Wind resistance: Temperature range (operating): -40 °C to +80 °C
• Environmental conditions: Outdoor/Indoor
• Water ingress protection rating/standard: IP 68
• Salt fog: MIL-STD 810F/ASTM B117
• Relative operating humidity: Up to 98%
• Storage humidity: 5% to 95% - non-condensing
• Storage temperature: -40 °C to +80 °C
• Flammability class of the housing: UL 94-HB, ECE-R118.02 certified.
