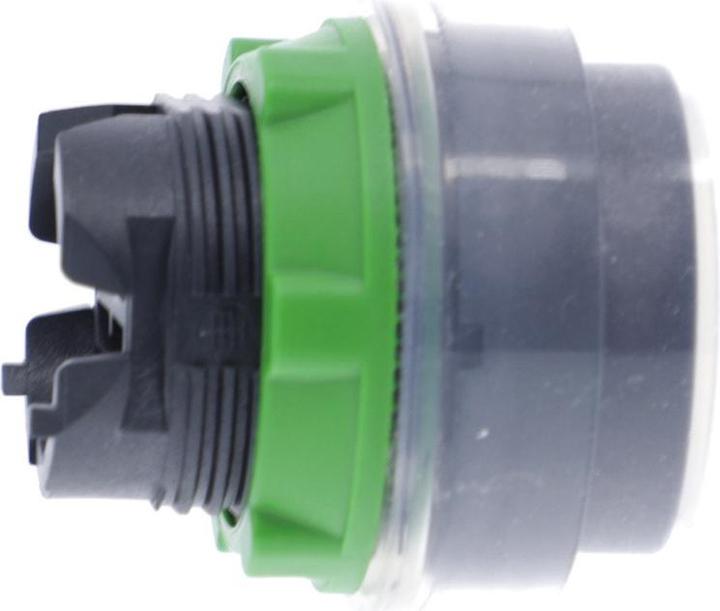

Schneider Electric Push Button ZB5AP2

Manufacturer: Schneider Electric
Description: Push button, black, with protective collar.
Type: ZB5AP2
Button color: black
Number of command positions: 1
Lens shape: round
Hole diameter: 22.5 mm
Opening width: 0 mm
Opening height: 0 mm
Button shape: high
Suitable for lighting: no
With protective cover: no
Labeled: no
Latching switch function: no
Momentary: yes
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: other

Additional details:
Front element for Harmony ZB5 push button. Front black, plastic bezel, unlabeled.
Front element for push button, white.
Dimensions (WxHxD): 30 x 30 x 35 mm
Mounting diameter: 22 mm
Weight: 0.014 kg
With transparent protective cap DM 22 without latching.
Mechanical lifespan: 10,000,000 cycles.
Head shape: round, standard.
With high vibration resistance and chemical resistance, ambient temperature: -40 to +70 degrees C.
The modular plastic program with 22 mm installation dimensions combines easy installation, efficiency, modern design, flexibility with maximum robustness.
Certifications according to UL listed, LROS (Lloyds Register of Shipping), BV, GL, DNV, RINA, CSA.
Product standards according to EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C 4520, EN/IEC 60947-5-1, EN/IEC 60947-1, UL 508.
EAN: 3389110906646.
