Schneider Electric Hand pendulum control unit 3 function
More than 10 pieces in stock at supplier
Colour2
Product details

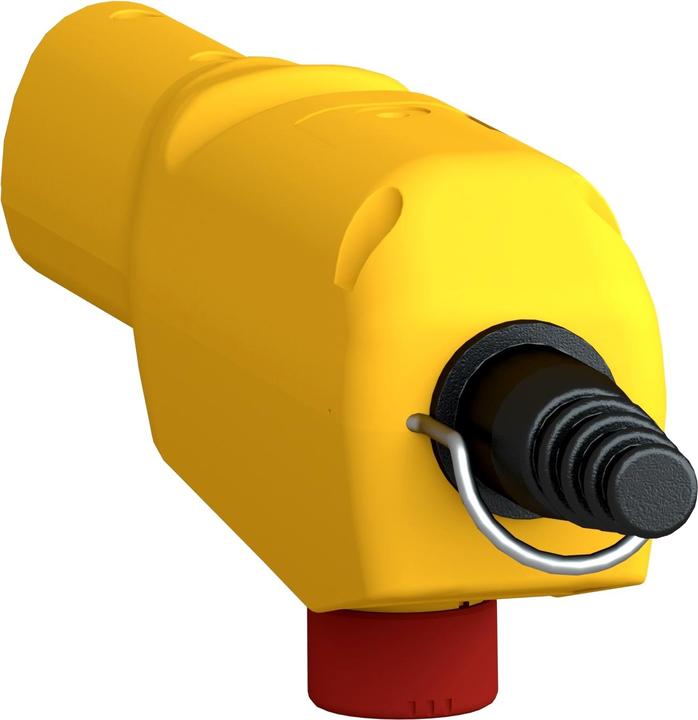

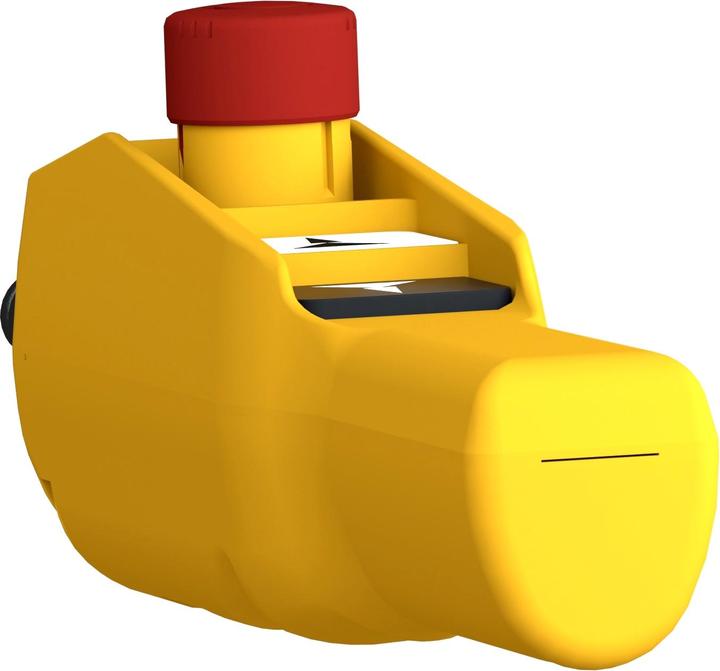

Schneider Electric Pendant Control XACA2073
Manufacturer: Schneider Electric
Description: Pendant control with emergency stop
Type: XACA2073
Number of control points: 2
Rated operational current Ie at AC-15, 600 V: 1.2 A
Number of speeds: 2
Suitable for emergency stop: yes
Type of movements that can be executed: lifting
Material of the housing: plastic
Material quality of the housing: other
Color of the housing top: yellow
Protection class (IP): IP65
Protection class (NEMA): 13
Width: 52 mm
Height: 295 mm
Depth: 101 mm
Additional details: Harmony XACA pendant control. 2 push buttons, 1 x 30 mm emergency stop with tamper-proof design. Complete device, protection isolated, for control circuits, for switching motors with 1 speed. 2 control points, 2 rotation directions, mechanically interlocked against each other. EAN: 3389110558890.
Colour | Yellow |
Switch + button type | Pendant station |
Width | 52 mm |
Item number | 9731116 |
Manufacturer | Schneider Electric |
Category | Buttons + Switches |
Manufacturer No. | XACA2073 |
Release date | 24.9.2018 |
Colour | Yellow |
Exact colour description | Yellow |
Material group | Plastic |
Material | Plastic |
Switch + button type | Pendant station |
Operating mode | Key |
Number of actuation levels | 2x |
LED lighting | Red, White |
Nominal current | 1.20 A |
Protection type (IP code) | IP65 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 95,84 kg |
Climate contribution | EUR 2,40 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | 4 push buttons, CO, Pendant station |
Length | 101 mm |
Width | 52 mm |
Height | 295 mm |
