Siemens Flexible
S/UTP, CAT6a, 1.50 mPrice in EUR including VAT
free shipping
Siemens digital industrial flexible plug-in cable 6XV1878-5GH15
Manufacturer: Siemens Digital Industries
Designation: Flexible plug-in cable 4x2, 1.5m
Type: 6XV1878-5GH15
Conductor surface: Bare
Number of cores: 8
Stranding element: Pairs
Core insulation material: Other
Core identification: Colour
Screen over stranding element: Without
Stranding: Bundle
Shield over stranding: Foil + braiding
Jacket material: Polyurethane (PUR)
Specification Jacket material: Other
Jacket colour: Green
Fire performance class according to EN 13501-6: None
Flame retardant: No
Smoke resistant according to EN 61034-2: Yes
Outer diameter approximately: 6.5 mm
Minimum permissible bending radius, flexible use with forced guidance: 65 mm
Minimum permissible bending radius, flexible use/free movement: 65 mm
Minimum permissible bending radius, stationary use/fixed installation: 65 mm
Permissible cable external temperature during installation/handling: 80 °C
Permissible cable external temperature after installation without exhaustion: 80 °C
Permissible cable outer temperature after assembly without shock: -30 to 80 °C
Category: Other
NVP value: 68%
Siemens digital industrial flexible plug-in cable 6XV1878-5GH15: further details

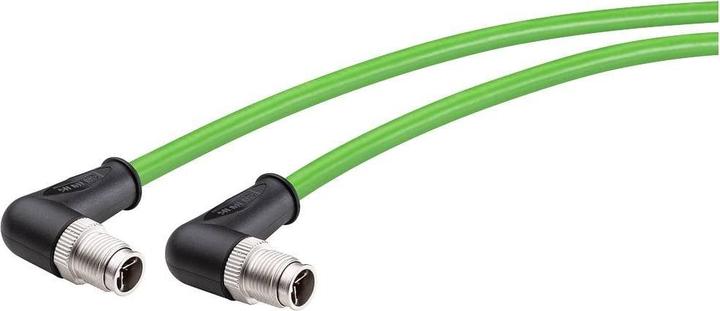

IE TP cord M12-90/M12-90 preconfigured IE flexible cable, with 2 M12 connectors (X-coded), 90-degree cable outlet, length 1.5m. SIMATIC NET IE TP cord M12-90/M12-90 allows easy connection of terminal devices with M12 connection in protection class IP65/IP67 to the interference-resistant Industrial Ethernet FastConnect cabling system (10/100/1000/10000 Mbit/s). Silicone-free, thus suitable for use in the automotive industry (e.g., painting lines). Fast and error-free commissioning thanks to preassembled, factory-tested patch cables. Easy installation due to small cable diameter. EAN: 4019169857031.
Patch cable type | Copper cable |
Contact assignment | straight |
Item number | 36791230 |
Manufacturer | Siemens |
Category | Network cables |
Manufacturer no. | 6XV18785GH15 |
Release date | 28.6.2023 |
Cable colour | Green |
Material | Polyurethane (PUR) |
Material of the isolation | Polyurethane |
Connection A | M12 |
Connection B | M12 |
Cable Application | Network |
Cable design | Flexible PVC |
Plug type | Angled on both sides |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 8 |
Temperature range | -30° - 80° C |
Patch cable type | Copper cable |
Patch cable Features | Halogen-free |
Max. data transfer rate | 1.25 GB/s |
Cable category | CAT6a |
Contact assignment | straight |
Shield | S/UTP |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | IE TP Cord M12-90/M12-90 pre-conf. IE Flexible Cable, with 2 M12 plugs (X-coded, 90-degree cable outlet, length 1.5m. SIMATIC NET |
Diameter | 6.50 mm |
Length | 1.50 m |
Width | 65 mm |
Depth | 65 mm |
