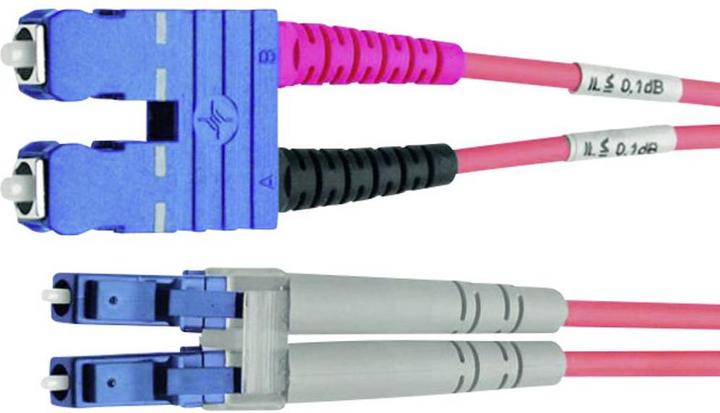

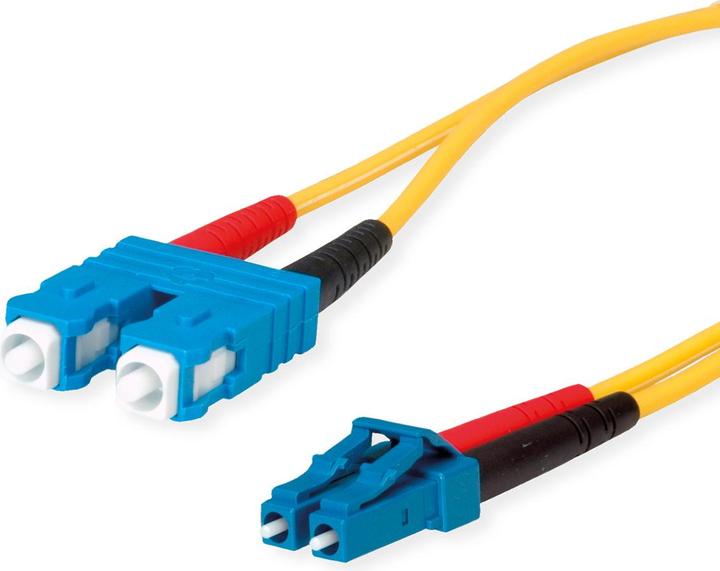

The LC-Duplex - SC-Duplex fiber optic adapter cables from Telegärtner can be used within a structured cabling system (ISO/IEC 11801), for example, in data centers, office buildings, telecommunications rooms, and any other locations where fiber optic patch cables are needed. Patch cables are subject to the highest loads and the most wear and tear. That’s why many users rely on patch cables from Telegärtner: optimally coordinated components, the highest quality standards, a thoroughly controlled manufacturing process, and 100% attenuation measurement ensure safe and reliable network operation. The patch cables in categories OM3-OM5 and OS2 feature bend-optimized fibers to enable optimal transmission even in tight spaces. Patch cables in standard lengths of 1, 2, 3, 5, and 10 meters are available from stock, and additional variants can be easily and quickly configured.

Features:

• Standard lengths: 1, 2, 3, 5, and 10 m
• Cable type: Duplex Zipcord 2.8 x 5.7, LSZH
• Connector S.1: SC-Duplex (IEC 61754-4)
• Connector S.2: LC-Duplex (IEC 61754-20)
• OS2, crossed (according to ISO/IEC 11801): Yes
• Design: PC
• IL typ.: < 0.25 dB
• RL typ.: > 40 dB
• Plug cycles: > 1000
• Fire protection class: Not relevant
• Burning drip: Not relevant
• Smoke development: Not relevant
• Acid development: Not relevant
• Fiber type: E9/125 OS2
• Housing color: blue
• Cable color: yellow
• Connector design: 1st side SC Duplex, 2nd side LC Duplex
• Length: 1 m
• Cable dimensions mm: 2.8 x 5.7.
