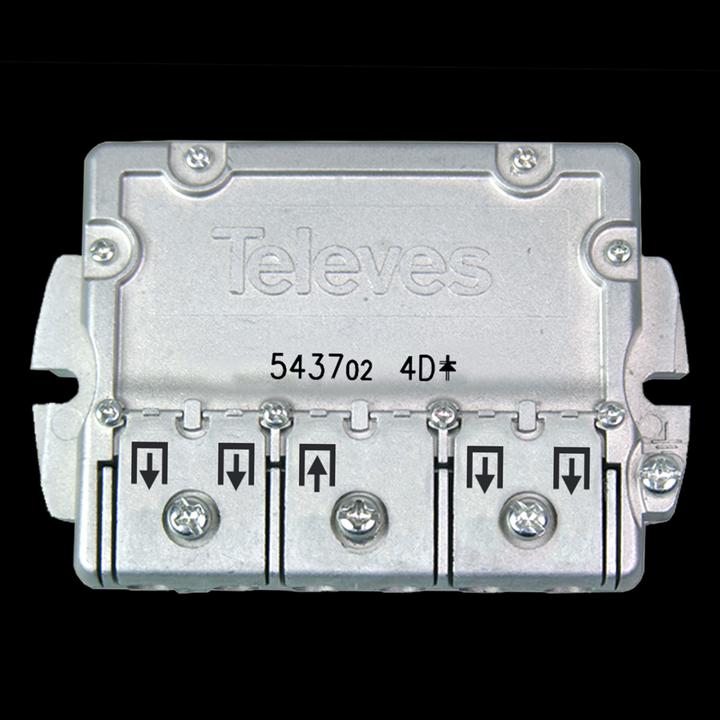

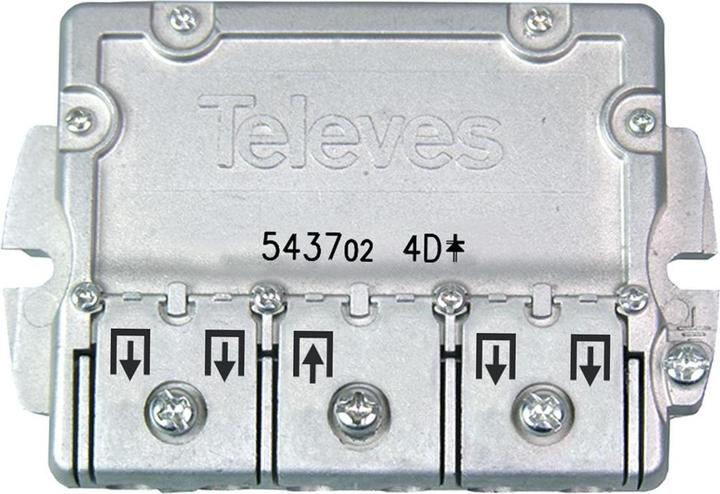

4-way splitter and EasyF connection technology for SMATV signals with a compact design and efficient electrical performance. Designed for indoor installation, the splitter can also be used outdoors with a housing.

Highlights

• EasyF connection system: simple and quick installation
• Die-cast housing with good shielding properties
• Excellent reliability: automated manufacturing with state-of-the-art microcomponents

Features

• Improved attenuation losses
• Outstanding electrical performance: noise reduction
• Includes grounding screw
• DC pass from outputs to inputs

Good to know

EasyF connection system: Simple and quick

EasyF is an innovative connection concept where the inner conductor of the coaxial cable is directly inserted into the device, improving connection reliability. Without F-connectors, the chassis can be minimized, and the connection of two cables can be secured with a single screw.

• Time savings: Quick installation is possible as no plug needs to be mounted on the coaxial cables first. Additionally, the connections do not need to be screwed onto the device, which can sometimes be difficult in tight spaces.
• Connection reliability: The clamp that holds the cables prevents the coaxial cable from coming loose.
• Cost savings: No additional connectors required (neither F nor IEC).
• Space optimization: Inputs and outputs are always on the same side of the device to prevent bending of the coaxial cables and facilitate work in cabinets and distribution boxes.
• Very simple three-step installation: To connect the two cables, only the front panels need to be unscrewed and screwed back on.
