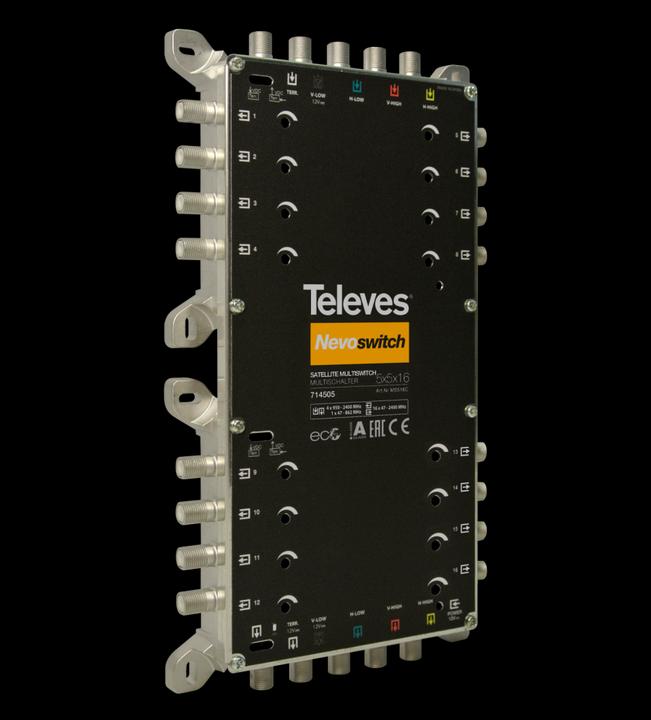

Cascadable multi-switch with 5 inputs (1 terrestrial and 4 SAT), 16 subscriber outputs, 5 loop-through outputs, and a 12 dB level control at the subscriber outputs. Very flexible: can be used as a single or cascade switch thanks to switchable terminating resistors.

Highlights

• One 12 dB level control per subscriber to equalize the output level.
• Switch for power supply to terrestrial and SAT systems. Switch for power supply of terrestrial amplifier.
• Power supply directly from receiver.
• Remote power supply via V-Low input.
• DC pass-through between inputs and cascade outputs.
• Terrestrial power supply.
• European quality and design, 100% manufactured and tested at Televes.

Features

• Very compact.
• Cast housing designed and manufactured at Televes.
• Inputs and loop-through outputs color-coded.
• With ECO mode: subscriber-dependent power consumption.
• Switching between cascade and single switch (terminating resistors can be switched on).
• 12 V power supply.
• Low power consumption, therefore economical operation (receiver powered).

Specification

• Number of inputs: 5
• Number of cascade outputs: 5
• Number of subscriber outputs: 16
• Frequency range TERR: 47 ... 862 MHz
• Frequency range SAT: 950 ... 2400 MHz
• Input level TERR: 92 dBμV
• Input level SAT: 105 dBμV
• Pass-through attenuation TERR: 4 dB
• Pass-through attenuation SAT: 3 ... 8 dB
• Subscriber attenuation 1...8 TERR: 2 dB
• Subscriber attenuation 1...8 SAT: 1 dB
• Subscriber attenuation 9...16 TERR: 4 dB
• Subscriber attenuation 9...16 SAT: 2 dB
• Level control per subscriber: 0 ... 12 dB
• Decoupling H/V: > 30 dB
• TN decoupling: > 25 dB
• Power supply: 12 Vdc
• Max. current consumption (PSU): 105 mA
• Max. current consumption (STB): 35 mA
• Operating temperature: -5 ... 45 °C
• Protection index: 20

Physical data

• Net weight: 787 g
• Gross weight: 787 g
• Width: 137 mm
• Height: 255 mm
• Depth: 29 mm
• Main product weight: 779 g.
