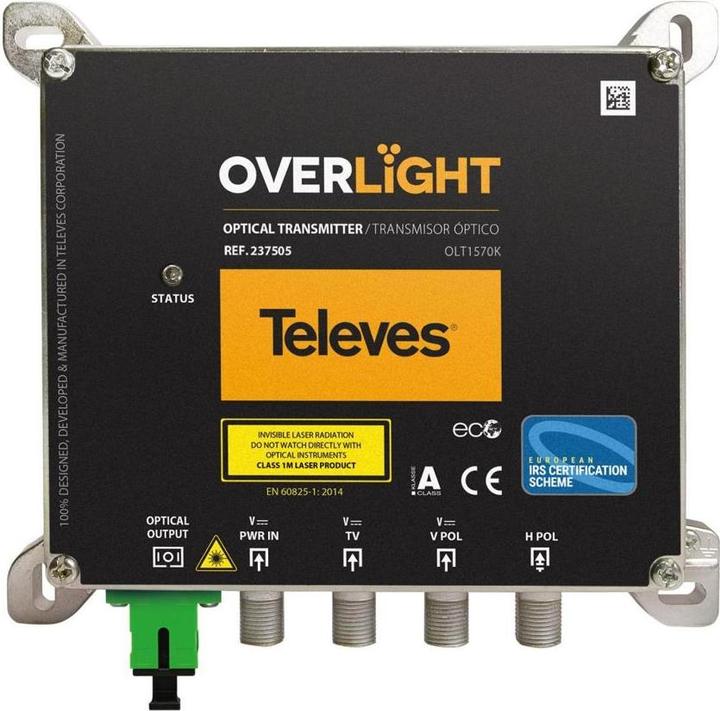

CWDM optical transmitter specifically designed for indoor installation. This device receives a satellite signal from an RF broadband LNB and terrestrial band, distributing it via a fiber optic output in the 1570nm window with 9dBm optical power to up to 64 users.

Thanks to optimized technology and low losses, the number of required amplifiers can be reduced, simplifying deployment in communal facilities while maintaining signal quality throughout operation.

This device is part of the Overlight system, which distributes satellite and terrestrial signals over a single fiber to multiple users. It can also be amplified.

Highlights

• High output level, ideal for communal facilities with up to 64 splits
• Designed for the transmission of 2 satellites
• Low losses
• Optimized electronics
• Very compact dimensions (137x126x45mm), lightweight
• For indoor use
• Powered by an external power supply via the power input (F-connector)
• 100% European design, quality, and manufacturing

Features

• SC/APC connector for optical components
• F-connector for RF input
• Highly shielded Zamak housing
• Wall and mast mounting
• Includes power supply and adapter cable
• LED signal status indicator.
