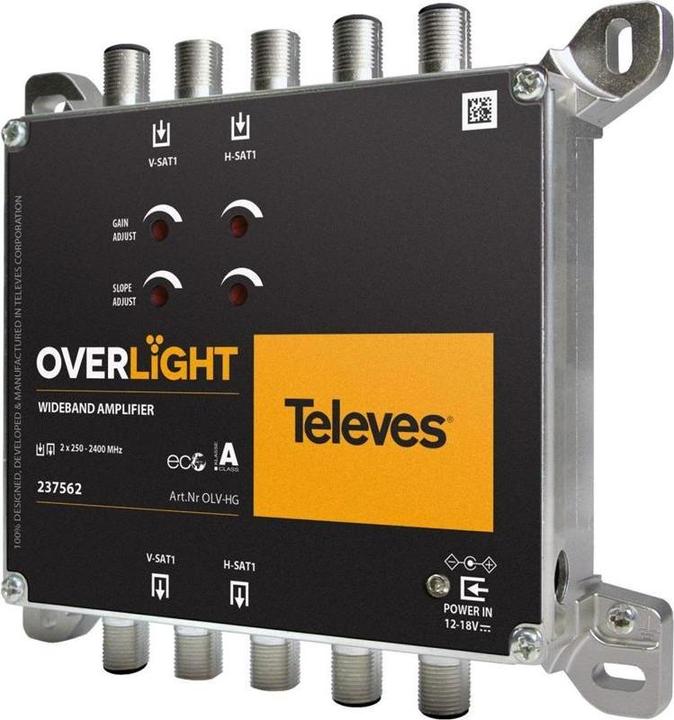

Compact WideBand amplifier for Overlight installations with 1 satellite. It compensates for the attenuation of the coaxial cable in the system. The power supply for this amplifier can be provided via the Overlight transmitter or an external power supply. Maximum gain of up to 29 dB. It is equipped with 2 (H/V) WideBand inputs and 2 (H/V) WideBand outputs (250-2400 MHz). Suitable for use in buildings.

Highlights

• Independent controls for gain and equalization
• Power supply range of 12 V to 18 V via the jack connector or through the Overlight transmitter
• Particularly compact in dimensions and weight (137x120x30 mm)
• 100% European design, quality, and manufacturing
• F-connectors for RF
• Die-cast housing with high shielding
• Wall mounting possible

Specifications

• Number of inputs: 2
• Number of outputs: 2
• Frequency band: SAT
• Frequency range MHz: 250 ... 2400
• Output voltage EN60728-3 IMD3 2tones -35 dB dBμV: 118
• Gain dB: 29
• Gain adjustment dB: 0 ... 13
• Slope adjustment dB: 0 ... 12
• Decoupling dB: > 25
• Power supply Vdc: 12 ... 18
• DC pass per SAT line mA: 500
• Max. current consumption (@12V) mA: 150
• Max. current consumption (@18V) mA: 100
• Max. power consumption W: 1.8
• Protection index (IP): 20

Physical data

• Net weight: 381 g
• Gross weight: 381 g.
