Name: SK125plus coaxial cable A+3-fold shielded 125dB 100m coil 413501
Brand: Televes
SKU: 14175084
Price: 139 EUR
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Televes

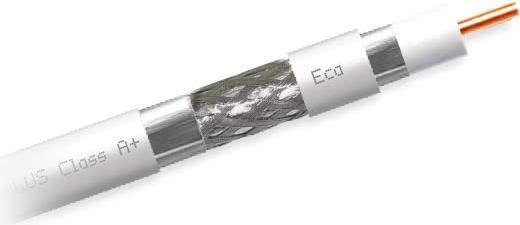

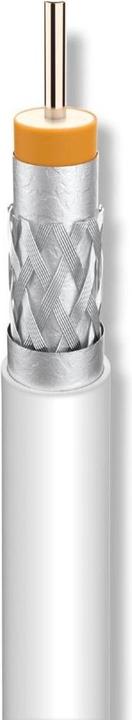

RG-6 coaxial cable with solid copper inner conductor for optimum digital transmission. 130 dB typical shielding ratio, triple shielded with coverage greater than 60%. Low attenuation (31 dB @ 2150 MHz), suitable for long distances.

Highlights
- Full copper inner conductor
- Class A+
- EU fire protection class Eca

Features
- Colour: White, PVC jacket
- 75 Ohm impedance
- Available in coils of various lengths

Specification
- Model: SK125plus
- Cable type: RG-6
- Standard: EN50117-9-2
- Euroclass: Eca
- Class: A+
- Diameter of inner conductor: 1 mm
- Material of inner conductor: Copper (Cu)
- Resistance of inner conductor: less than 22 Ω/km
- Diameter of dielectric: 4.6 mm
- Material of dielectric: Cell polyethylene (PEE)
- Dielectric colour: Orange RAL 1007
- First foil: Aluminium + polyester
- Material of braid: Tinned copper (CuSn)
- Braid dimensions: Number of strands x (L): 16
- Braid dimensions: Number of individual cores (A): 6
- Braid dimensions: Diameter of cores (Ø): 0.115 mm
- Resistance of braid: less than 15 Ω/km
- Braid coverage: 60%
- Second foil: Yes
- Second foil glued to the dielectric: No
- Moisture protection gel: No
- Anti-migration foil: No
- Outer sheath diameter: 6.7 mm
- Outer sheath material: PVC
- Minimum propagation velocity: 33.5 mm
- Coupling resistance (5-30 MHz): less than 2.5 mΩ/m
- 1 GHz shielding factor: greater than 95 dB
- Spark test: 3000 Vac
- Capacitance: 53 pF/m
- Impedance: 75 Ω
- Propagation velocity: 84%
- Operating temperature: -30 to 70 °C
- Frequency:
5 MHz, 47 MHz, 54 MHz, 90 MHz, 200 MHz, 500 MHz, 698 MHz, 800 MHz, 862 MHz, 950 MHz, 1000 MHz, 1220 MHz, 1350 MHz, 1750 MHz, 2050 MHz, 2150 MHz, 2200 MHz, 2300 MHz, 2400 MHz, 3000 MHz
- Attenuation (typical) dB/m:
0.02, 0.05, 0.05, 0.06, 0.09, 0.14, 0.16, 0.18, 0.19, 0.2, 0.21, 0.22, 0.25, 0.28, 0.31, 0.32, 0.32, 0.32, 0.34, 0.36
- Return loss (minimum) dB:
23, 23, 23, 23, 23, 23, 20, 20, 20, 20, 20, 20, 20, 18, 18, 18, 18, 16, 16, 16, 16, 16, 16

Physical data
- Net weight: 49 g
- Gross weight: 49 g
- Width: 400 mm
- Height: 400 mm
- Depth: 255 mm

Packaging
-...

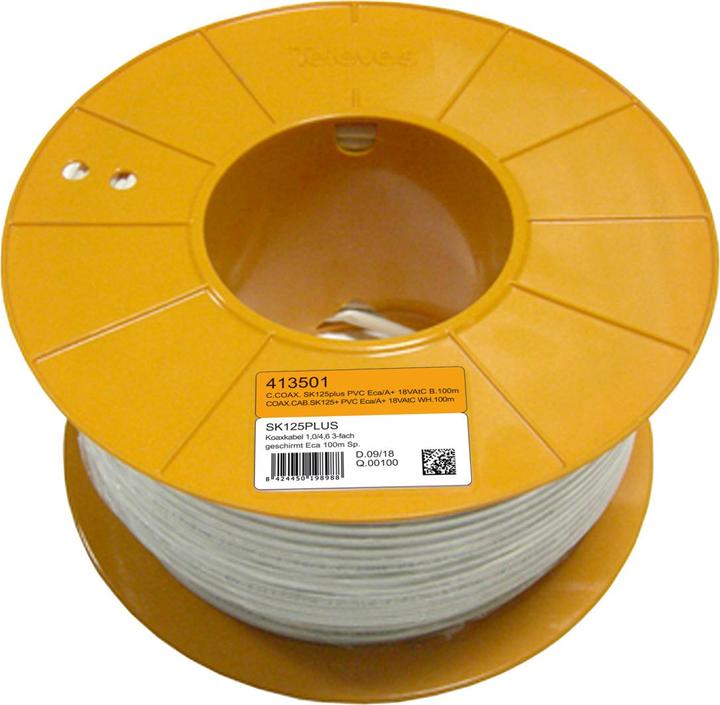

Actual product image Televes SK125plus coaxial cable A+3-fold shielded 125dB 100m coil 413501 (125 dB, Antenna cable)
