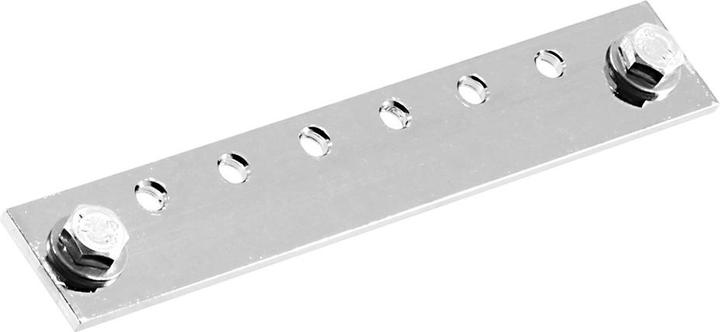

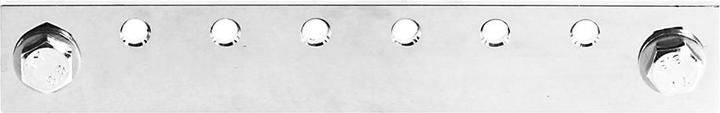

The BusBar 6 CIP100400070 is a high-current busbar designed for a maximum of 6 mega fuses and 1500A current from Victron Energy. It provides a professional solution for consolidating multiple devices protected by mega fuses. Instead of connecting 6 individual cables, you only need to connect a single bus cable from the bar to the DC power source(s). The BusBar 6 is optimally designed for use with the modular Mega-Fuse holder, which can be easily and securely connected with any number of other modular Mega fuse holders as needed. The connected holders can then be connected to a common DC power source via the high-current busbar. Currents of up to 1500A can be safely and professionally managed with this system.

Key features of the BusBar 6 CIP100400070:

• Compatible with all mega fuses
• Compatible with the modular mega fuse holder
• Space for up to 6 fuses
• Secure screw connection to the busbar for maximum safety
• Maximum current of 1500A
• 2 M10 connections for the DC power source(s)
• Saves you from connecting too many DC cables to the battery, where space is often limited

Compatible accessories:

• Mega fuse fuses 32V 60A – 300A
• Mega fuse fuses 58V 125 – 500A
• Modular fuse holder for mega fuses

Delivery includes:
1x Victron CIP100400070 BusBar 6 high-current busbar including the necessary screws.
