Wisi Multiswitch DY 0516

Manufacturer: Wisi
Designation: Multiswitch 5in16, Type: DY 0516
Subscriber connections: 16
Number of inputs: 5
Terrestrial input: passive
Cascadable: yes
Number of trunk outputs: 5
Max. current consumption: 2.5 mA
Power supply: none
Control signal: 14/18 V, DiSEqC, 0/22 kHz
LNB power supply: 12 V
22 kHz generator: no

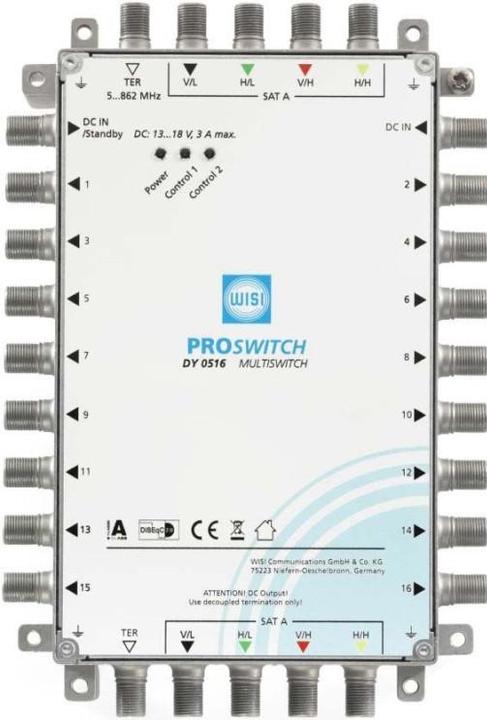

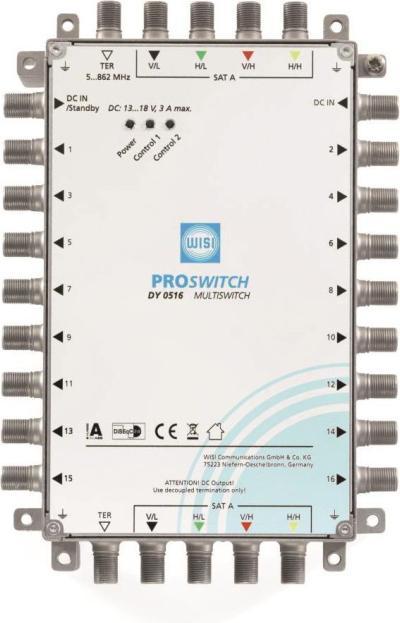

The DY 0516 is a cascading multiswitch with 5 inputs for distributing satellite and terrestrial signals. When used with the separately available power supply DY 70, which ensures LNB voltage supply, the multiswitch can also be used as a standalone device. The levels are available at 5 cascade outputs for subsequent multiswitches. At the 16 subscriber outputs, standard DVB-S/S2 receivers or TVs with integrated receivers can be operated. Terrestrial signals such as DVB-T/T2, DAB, or FM are also available at each subscriber output. The standby function minimizes energy consumption by activating the multiswitch only when receivers are turned on.

EAN: 4010056736224.
