Zalman ZM800-TXII MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E

800 W
Price in EUR including VAT
Ratings
BrandMore from Zalman
Delivered between Sat, 26.7. and Wed, 30.7.
Only 2 pieces in stock at supplier
free shipping

Product details

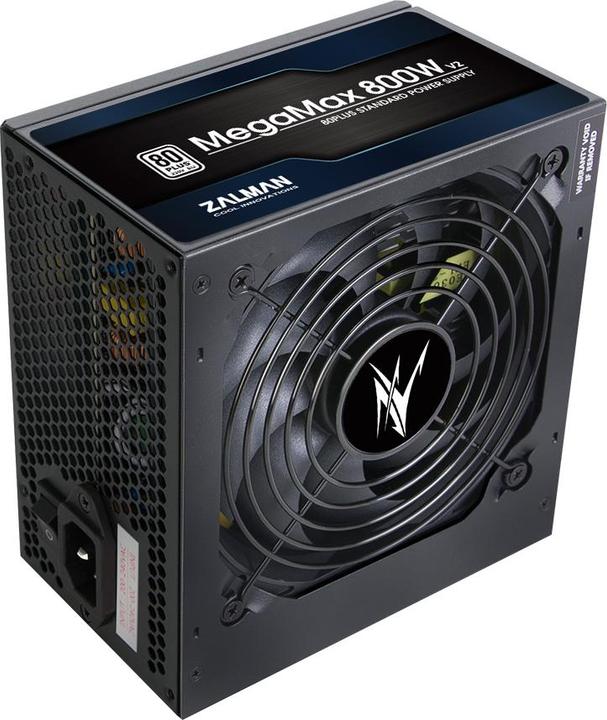

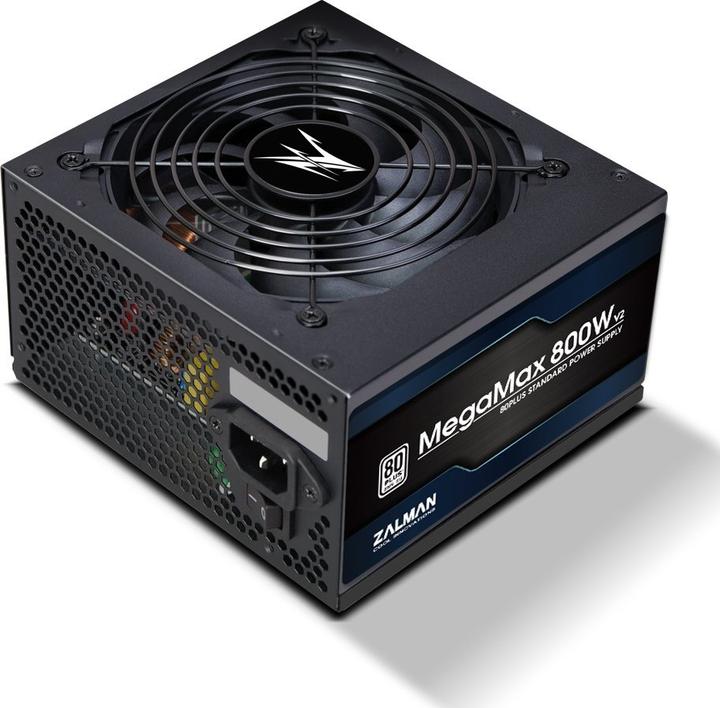

Zalman ZM800-TXII MegaMax, 80PLUS 230V
80PLUS 230V EU standard certified
The MegaMax guarantees stable performance and efficiency certified 80 PLUS Standard.

Active PFC with up to 98% maximum power factor
By applying an active PFC (Power Factor Correction) circuit that maximizes energy efficiency, it provides electromagnetic wave reduction and energy efficiency, while preventing reverse current.

HDB (Hydro-Dynamic Bearing) powerful and safe HDB bearing
Quiet and smooth operation with HDB bearings. Durability is improved and life expectancy is extended. It reduces noise and minimizes heat generation.

120mm cooling fan for quiet and powerful cooling performance
The 120mm low-noise fan delivers a powerful spin even at low RPM to quickly remove heat from the power supply for optimum cooling performance.

High-quality, performance-oriented parts used to be durable and reliable
It provides a smooth power supply to the PC and reduces unnecessary power consumption by using quality parts that are durable and reliable.

Specifications
Model: ZM800-TXII
Efficiency: Max 85% @ 230VAC, typical load
Dimensions: 140 (L) x 150 (W) x 86 (H) mm
MTBF: 100,000 hours
Weight: 1.85 kg
Operating temperature: 10 to 45 °C
PFC: Active PFC
Regulation: KC, CE, CB, RoHS, EAC
Type: Intel ATX 12V Ver2.31
Protection: OPP / OVP / UVP / SCP
Input voltage: 220-240VAC
Input current: 7A
Input frequency: 50-60Hz
Fan size: 120mm
Fan bearing: Hydraulic dynamic bearing
Rated speed: 2500RPM
Cables (connector): Motherboard 20 + 4 pin (1), CPU 4 + 4 pin (1), CPU 8 pin (1), PCI-E 6 + 2 pin (4), S-ATA (8), IDE (4), FDD (1).

Key specifications

Form factor
ATX
Modularity
Modular cable management
Internal connection options
20+4 PIN ATX power connector (1x), 4-pin CPU (4x), 8-pin EPS (1x)
Item number
34854643

General information

Manufacturer
Zalman
Category
Power Supply PC
Manufacturer no.
ZM800-TXII
Release date
17.5.2023

Colour

Colour
Black
Exact colour description
Black

Power supply properties

Form factor
ATX
Modularity
Modular cable management

Power supply connectors

Internal connection options
20+4 PIN ATX power connector (1x), 4-pin CPU (4x), 8-pin EPS (1x)

Cooling properties

Cooling method
Active cooling
Number of fans
1 x
Fan diameter
120 mm

Power supply

Power
800 W

Origin

Country of origin
Macedonia, South Korea

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
14 cm
Width
15 cm
Height
8.60 cm
Weight
1850 g

Package dimensions

Length
28.40 cm
Width
18.50 cm
Height
10.40 cm
Weight
2.03 kg
