Best selling LNB downconverters from TechniSat
This page always stays fresh and updates automatically.

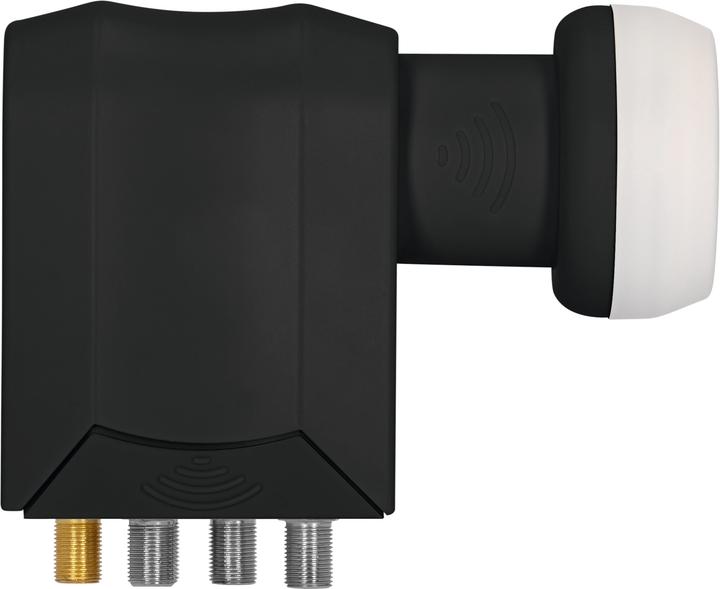

1. TechniSat 0000/8388 Universal SCR 4+4 LNB 4x SCR + 4x Legacy
The TechniSat Universal-SCR 4+4 LNB is a versatile satellite antenna converter designed for both modern single-cable systems and traditional legacy applications. With a feed diameter of 40 mm and an integrated LTE filter, this device offers excellent signal quality and reduces interference. It supports up to four SCR outputs, allowing for flexible distribution of satellite signals to multiple users. Additionally, the LNB features four legacy outputs for easy integration into existing systems. The frequency range spans from 950 to 2150 MHz, enabling a wide range of satellite reception. With a typical noise figure of just 0.7 dB, the LNB ensures high reception quality, while its compact design and lightweight of 250 g facilitate easy installation and handling.
- Integrated LTE filter to reduce interference
- Supports SCR single-cable systems according to EN50494
- High reception quality with a noise figure of 0.7 dB
- Compatible with up to four legacy applications
- Robust protective housing for durability and reliability.
2. TechniSat 0000/8390 Universal Quattro Switch LNB 40mm
The LNB is suitable for all satellite dishes with a 40 mm feed and is designed for the reception of TV, radio, and multimedia services transmitted via satellite.
The LNB features four outputs, each of which can be directly connected to a receiving device (satellite receiver or smart TV). All receiving devices can independently choose their programs, as the signals from the entire reception area are available at each of the four LNB outputs. Additionally, two twin receivers can be connected instead of four single devices without any issues.
However, the Universal Quattro-Switch-LNB allows for a maximum of four participants to receive signals. Expanding the reception system with a multiswitch is not intended. If more than four participants need to be connected, a Quattro LNB in conjunction with a multiswitch is required.
Due to its design, the Universal Quattro-Switch-LNB is protected against interference from LTE mobile signals.
LNB downconverter
−16%
EUR23,– was EUR27,46
TechniSat 0000/8390 Universal Quattro Switch LNB 40mm
Quattro LNB, 40mm
3. TechniSat 0000/8398 Universal Octo LNB 40mm
The LNB is suitable for all satellite dishes with a 40 mm feed and is used for receiving TV, radio, and multimedia services transmitted via satellite.
The LNB features eight outputs, each of which can be directly connected to a receiving device (satellite receiver or smart TV). All receiving devices can independently choose their channels, as the signals from the entire reception range are available at each of the eight LNB outputs. The Universal Octo LNB can also easily connect four twin receivers instead of eight single devices.
Due to its design, the Universal Octo LNB is protected against interference from LTE mobile signals.
LNB downconverter
−21%
EUR40,22 was EUR51,08
TechniSat 0000/8398 Universal Octo LNB 40mm
Octo LNB, 40mm
4. TechniSat Universal SCR 8+2 LNB
With the TechniSat SCR-LNB, you can supply up to 8 participants with the complete programs of a satellite via a coaxial cable. This is also the ideal solution for supplying signals to multi-tuner devices (twin/quattro receivers), allowing you to watch one program while simultaneously recording one or more others (DVR). The two additional LNB universal outputs (2x Legacy) provide extra flexibility for connecting non-SCR-compatible reception devices. This allows for a total of up to 10 different digital TVs/receivers to be operated without the use of a multiswitch.
5. TechniSat 0000/8380 Universal Quattro LNB 40mm
With this LNB, it is possible to receive all TV, radio, and multimedia offerings broadcast via satellite. It is suitable for all satellite dishes with a 40 mm feed opening. The Quattro LNB has four outputs and is specifically designed for use in multi-user systems, where distribution is done via multiswitches or TECHNIROUTER. A satellite receiver or smart TV cannot be connected directly. Due to its design, the universal Quattro LNB is protected against interference from LTE mobile communications.
LNB downconverter
−15%
EUR22,39 was EUR26,44
TechniSat 0000/8380 Universal Quattro LNB 40mm
Quattro LNB, 40mm
6. TechniSat UNYSAT Universal-Twin-LNB - für 2 Teilnehmer (LNB im Wetterschutzgehäuse, passend für Tech
Digital LNB for Two-Participant Reception
Signal converter for dual participant operation. This signal converter is equipped with two independent connections and can be used in dual participant mode to receive all analog and digital TV, radio, and multimedia offerings broadcast via satellite. Since the entire frequency spectrum of satellite reception is available at each of the two outputs, either two receiving devices (e.g., receivers or TV-PC cards) or a twin receiver can be directly connected to the output sockets.
This twin LNB only allows for pure two-participant reception. An expansion of the reception unit through a multiswitch is not planned. To include more than two participants, the use of a Quattro or Quattro switch LNB is recommended.
Function of the LNB
The LNB (Low Noise Block Converter) is the reception electronics that is mounted on the AZ/EL bracket (the feed arm) of the satellite antenna.
LNB downconverter
EUR59,90
TechniSat UNYSAT Universal-Twin-LNB - für 2 Teilnehmer (LNB im Wetterschutzgehäuse, passend für Tech
Twin LNB, 40mm
7. TechniSat UNYSATSCR86
The UNYSAT universal SCR 8 + 6 LNB fits all AZ / EL holders of the SATMAN antenna dishes and is used to implement TV, radio, and multimedia offers that are broadcast via satellite.
With this LNB, you can supply up to 8 participants via a coaxial cable (SCR / single cable solution) and a further 6 participants via the universal outputs with the complete programs of a satellite. This is also the ideal solution for the signal supply of multi-tuner devices (twin / quattro receiver) to watch a program and simultaneously record one or more others (DVR).
The six universal outputs (6 x legacy) offer additional flexibility for the connection of non-SCR-compatible receiving devices. This means that up to fourteen different digital televisions / receivers can be operated without using a multi-switch.
Due to its design, the UNYSAT Universal-SCR 8 + 6 LNB is protected against interference from LTE.
8. TechniSat UNYSAT Universal- 0010/8882 Twin LNB digital
The TechniSat UNYSAT Universal Twin LNB is a highly advanced satellite antenna converter optimized for receiving satellite signals. With a frequency range of 9.75 to 10.6 GHz, this device offers reliable performance and is ideal for use in various satellite reception systems. The Twin LNB allows for the simultaneous reception of two satellites, increasing flexibility in program selection. Its weatherproof design ensures that the device operates reliably even under challenging weather conditions. With a typical noise figure of just 0.6 dB, the UNYSAT guarantees high signal quality and minimizes interference. Its compact design and lightweight construction make installation simple and straightforward.
- Weatherproof design for reliable operation in various weather conditions
- Typical noise figure of 0.6 dB for high signal quality
- Twin LNB allows for simultaneous reception of two satellites
- Specific feed mount for easy installation.
9. TechniSat 0010/8988 UNYSAT-Universal-Octo-LNB
The UNYSAT Universal Octo LNB fits all AZ/EL mounts of SATMAN satellite dishes and is used to receive TV, radio, and multimedia offerings broadcast via satellite. This LNB features eight outputs, each of which can be directly connected to a receiving device (satellite receiver or smart TV). All receiving devices operate independently in their program selection, as signals from the entire reception area are available at each of the eight LNB outputs. Instead of eight individual devices, four twin receivers can easily be connected to the UNYSAT Universal Octo LNB. Due to its design, the UNYSAT Universal Octo LNB is protected against interference from LTE.
10. TechniSat 0019/8194 Universal V/H LNB, 40mm, with satellite finder
The LNB is suitable for all satellite dishes with a 40 mm feed and is designed to receive TV, radio, and multimedia services broadcast via satellite. It is intended for single-user operation (Single LNB) and features a signal output that can be directly connected to a receiver. The integrated level meter and compass make the LNB perfect for use in camping and caravan applications, allowing for quick alignment of the antenna to the desired satellite. Its design also protects the universal V/H LNB from interference caused by LTE mobile signals.
Main Features:
Technical Details:
Low Band Input Frequency Range: 950 - 1950 GHz
High Band Input Frequency Range: 1100 - 2150 GHz
Low Band LO Frequency: 9.75 GHz
High Band LO Frequency: 10.6 GHz
High Band Output Frequency Range: 11700 - 12750 MHz
Low Band Output Frequency Range: 10700 - 11900 MHz
Local Oscillator (LO) Phase Noise (10 kHz): 75 dBc/Hz
Noise Figure: 0.9 dB
Output Impedance: 75 Ohm
Switching Frequency (max.): 22 kHz
Temperature Drift: 2.5 MHz
Initial Accuracy (±): 1 MHz
Supply Voltage Ca (Vertical Polarization): 12 - 14.5 V
Supply Voltage Cb (Horizontal Polarization): 16 - 20 V
Connections and Interfaces:
Number of RF Connections: 1
RF Connection Type: F
Power:
Power Consumption: 150 mA
Weight and Dimensions:
Feedhorn Diameter: 4 cm
Width: 120 mm
Depth: 57 mm
Height: 57 mm
Weight: 102 g
Color: Black
Packaging Data:
Packaging Width: 140 mm
Packaging Depth: 63 mm
Packaging Height: 63 mm
Package Weight: 120 g
Operating Conditions:
Operating Temperature: 10 - 60 °C
Delivery Contents:
Quantity: 1
Logistical Data:
Quantity per Package: 1 piece(s).
LNB downconverter
EUR18,66
TechniSat 0019/8194 Universal V/H LNB, 40mm, with satellite finder
Single LNB, 40mm
