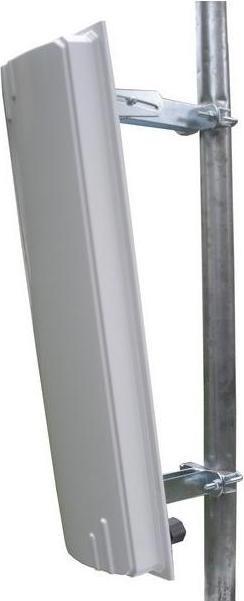

1. Itelite PRO-SEC50016DP - 5 GHz 2x 16 dBi Sector Antenna Box - Sector Antenna - Ethernet

IT Elite Pro-SEC50016DP - 5 GHz, 2x 16 dBi Sector Antenna Box

The antenna with a multifunctional housing operates in the 5 GHz band with two independent sector antennas, each with 16 dBi gain and both vertical and horizontal polarization. It is the ideal solution for MIMO and Nstreme Dual configurations.

The housing provides enough space for a RouterBOARD or other electronic devices. It features special waterproof RJ-45 Ethernet ports for easy internet connectivity and PoE.

It is perfectly suited for use in extreme weather conditions. The material is corrosion-resistant and can also be used in high-salinity environments. The high quality of the mast mounting ensures easy and smooth alignment as well as shock-resistant operation.

The housing includes suitable mounting holes for MikroTik RouterBOARDs of the 411 and 433 series.

Features:

- 2x 16 dBi sector gain
- Dual polarization H and V in one housing
- Special weatherproof housing for outdoor use
- Suitable for MikroTik RouterBOARDs
- High-quality construction
- Robust mounting elements
- Easy alignment
- Designed for use in all weather conditions

Applications:

- 5 GHz band Wireless LAN
- Nstreme Dual configuration
- 802.11n/MIMO standard
- IEEE 802.11a WLAN systems
- Point-to-multipoint applications

Electrical Properties:

- Frequency: 5.1 - 5.9 GHz
- Gain: 2x 16 dBi
- Polarization: Dual H and V
- Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
- Vertical beamwidth: 10°
- VSWR:
- Impedance: 50 Ohm
- Front to Back ratio: >35 dB
- Port Isolation: >45 dB
- Lightning protection: DC grounding

Housing Properties:

- Technology: Microstrip
- Material: UV-resistant
- Color: Gray
- Minimum temperature: -40°C / -40°F
- Maximum temperature: 80°C / 176°F

Mechanical Properties:

- Compatible with: RouterBOARDs of the RB411 and RB433 series
- Input: SMA connector, 2x U.FL or MMCX pigtail... more

Network antenna

EUR139,–

Itelite PRO-SEC50016DP - 5 GHz 2x 16 dBi Sector Antenna Box - Sector Antenna - Ethernet

5G

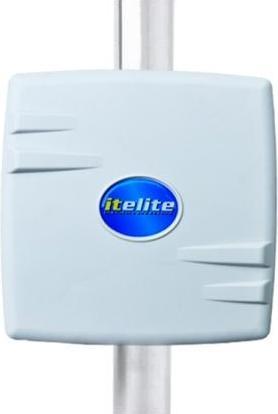

2. Itelite PAT24014 - 2.4 GHz 14 dBi Outdoor Panel Antenna - WLAN - 14 dB

IT ELITE PAT24014 - 2.4 GHz, 14 dBi Outdoor Panel Antenna

The panel antenna operates in the 2.4 GHz frequency band with a gain of 14 dBi and can be mounted with either horizontal or vertical polarization.

The antenna is housed in a UV-resistant plastic casing with an aluminum mounting plate. The corrosion resistance of the materials allows the antenna to be used in saltwater environments. The high quality of the mast mounting ensures easy height and tilt adjustment.

The antenna can be used for client stations and base stations. Due to the reduced side lobes, the antenna achieves an extremely high data throughput and has a strong signal, even in heavily frequented areas.

Main features:

- 14 dBi directional antenna gain
- Outstanding performance
- Extremely high data throughput
- Insensitive to interference from other networks
- Wide impedance matching
- Horizontal or vertical polarization
- Stable mounting elements
- Suitable for outdoor use

Specifications:

- 2.4 GHz ISM band Wireless LAN
- WiFi Access Points
- Wireless HotZones
- Client Station

Electrical properties:

- Frequency range: 2400 – 2500 MHz
- Gain: 14 dBi
- Polarization: vertical or horizontal
- Horizontal beamwidth: 38°
- Vertical beamwidth: 39°
- VSWR:
- Impedance: 50 Ohm
- Front-to-back ratio: > 25 dB
- Lightning protection: DC ground

Mechanical properties:

- Technology: Microstrip
- Input: N socket
- Dimensions: 165 x 165 x 37 mm
- Weight: 0.6 kg
- Radome material: UV-resistant high impact polystyrene
- Color: white
- Material: high-quality aluminum alloy
- Application area: all-weather suitable. more

Network antenna

EUR37,90

Itelite PAT24014 - 2.4 GHz 14 dBi Outdoor Panel Antenna - WLAN - 14 dB

Wi-Fi

3. Itelite PRO-SEC50017V - 5 GHz 17 dBi Sector Antenna Box - Sector Antenna - Ethernet

IT Elite Pro-SEC50017V - 5 GHz, 17 dBi Sector Antenna Box

Professional sector antenna operating in the 5 GHz band with 17 dBi gain and vertical polarization. The weatherproof outdoor enclosure provides ample space for RouterBOARDs or other electronic equipment. It features a special RJ-45 waterproof Ethernet connector for easy network and PoE connection. Designed for operation under severe weather conditions, the materials used allow for corrosion-free performance even in saltwater environments.

The professional mounting system with a 0-15 degrees scale ensures easy and smooth tilt adjustment, providing stable operation. This product is ideal for point-to-multipoint applications in highly professional solutions. Inside the enclosure are suitable posts for MikroTik RouterBOARD 411 and 433 series models.

Key Features:

- 17 dBi sectorial gain
- Shielded radio compartment
- Suitable for MikroTik RouterBOARDs
- Special outdoor weatherproof enclosure
- High-quality construction
- Vertical polarization
- Heavy-duty mounting elements
- Easy elevation and tilt adjustment
- Designed for all-weather operation

Applications:

- 5 GHz band Wireless LAN
- IEEE 802.11a WLAN systems
- RLAN
- WiMAX
- Point-to-multipoint applications

Electrical Properties:

- Frequency: 5.1 - 5.9 GHz
- Gain: 17 dBi
- Polarization: Vertical
- Beamwidth (horizontal): 90° (-3 dB), 120° (-6 dB)
- Beamwidth (vertical): 8°
- VSWR:
- Impedance: 50 Ohm
- Front-to-back ratio: > 35 dB
- Lightning protection: DC ground

Enclosure Properties:

- Technology: Microstrip
- Material: UV-resistant
- Color: White
- Ingress Protection Rating (EN 60529): IP 66
- Min. temperature: -40°C / -40°F
- Max. temperature: 80°C / 176°F

Mechanical Properties:

- Compatible with: RB411 and RB433 series
- Input connector: SMA female, U.FL or MMCX pigtail optional
- Enclosure connector: Waterproof Ethernet connector
- Outside dimensions: 580 x 150 x 60 mm / 22.8 x 5.9 x... more

Network antenna

EUR129,–

Itelite PRO-SEC50017V - 5 GHz 17 dBi Sector Antenna Box - Sector Antenna - Ethernet

5G

4. Itelite PRO-SEC24015V - 2.4 GHz 15 dBi Sector Antenna Box - Sector Antenna - Ethernet

IT ELITE PRO-SEC24015V - 2.4 GHz, 15 dBi Sector Antenna Box

The professional sector antenna operates in the 2.4 GHz band with a gain of 15 dBi and vertical polarization. The waterproof outdoor housing provides ample space for RouterBOARDs or other electronic accessories.

The housing is equipped with a special RJ-45 waterproof Ethernet connector for easy connection to the network and PoE.

Perfectly suited for use in harsh weather conditions, as the corrosion resistance of the materials allows the antenna to be operated even in saltwater environments. A professional mounting system with a 0-15 degree scale ensures easy and smooth tilt adjustment as well as stable operation.

This product is excellent for point-to-point and multipoint connections. The housing features appropriate mounting holes for MikroTik RouterBOARD models 411 and 433 series.

Main Features:

- 15 dBi sector gain
- special weatherproof outdoor housing
- highest protection class IP 66
- high-quality construction
- low side lobes
- vertical polarization
- robust mounting elements
- easy alignment
- designed for operation in any weather

Applications:

- 2.4 GHz band Wireless LAN
- IEEE 802.11b/g WLAN systems
- Point to Multipoint applications

Electrical Properties:

- Frequency range: 2.4 - 2.5 GHz
- Gain: 15 dBi
- Polarization: vertical
- Horizontal opening angle: 90° (-3 dB), 120° (-6 dB)
- Vertical opening angle: 12°
- VSWR:
- Impedance: 50 Ohm
- Front-to-back ratio: > 35 dB
- Lightning protection: DC ground

Mechanical Properties:

- Compatible with: RB411 and RB433 series
- Antenna connector: SMA socket, U.FL or MMCX pigtail optional
- Housing connection: waterproof Ethernet connector
- External dimensions: 580 x 150 x 60 mm
- Weight: 2.1 kg

Housing Properties:

- Technology: Microstrip
- Material: UV resistant
- Color: white
- Protection class (EN 60529): IP... more

Network antenna

EUR109,–

Itelite PRO-SEC24015V - 2.4 GHz 15 dBi Sector Antenna Box - Sector Antenna - Ethernet

5. Itelite SEC50016DP - 5 GHz 2x 16 dBi 90° sector antenna - sector antenna - WLAN

IT ELITE SEC50016DP - 5 GHz, 2x 16 dBi 90° Sector Antenna

The sector antenna operates in the 5 GHz band with 2x 16 dBi gain and dual polarization for MIMO applications.

Due to its reduced side lobes, the antenna provides a clear, strong signal even in heavily frequented areas. The antenna is resistant to interference from other networks. An increase in data throughput or a change of channel does not disrupt the connection.

Perfectly suited for use in challenging weather conditions. The material is corrosion-resistant and can also be used in saltwater environments.

The professional mounting system with a scale of 0 to 15 degrees ensures easy and smooth tilting as well as stable operation.

Features:

- Special weatherproof housing
- Highest protection class IP 66
- High-quality construction
- Reduced side lobes
- Robust mounting elements
- Easy alignment and attachment
- Designed for use in any weather

Applications:

- 5 GHz band Wireless LAN
- MIMO standard
- IEEE 802.11n WLAN systems
- Point-to-Multipoint applications

Electrical Properties:

- Frequency: 5.1 - 5.9 GHz
- Gain: 2x 16 dBi
- Polarization: Dual
- Beamwidth horizontal: 90° (-3 dB), 120° (-6 dB)
- Beamwidth vertical: 6°
- VSWR:
- Impedance: 50 Ohm
- Front-to-back ratio: >35 dB
- Port isolation: >35 dB

Housing Properties:

- Technology: Microstrip
- Material: UV-resistant
- Color: White
- Protection class (EN 60529): IP 66
- Minimum temperature: -40°C
- Maximum temperature: 120°C

Mechanical Properties:

- Input connector: N-socket
- Wind load:
- External dimensions: 580 x 125 x 50 mm
- Weight: 1.5 kg. more

Network antenna

EUR109,–

Itelite SEC50016DP - 5 GHz 2x 16 dBi 90° sector antenna - sector antenna - WLAN

5G

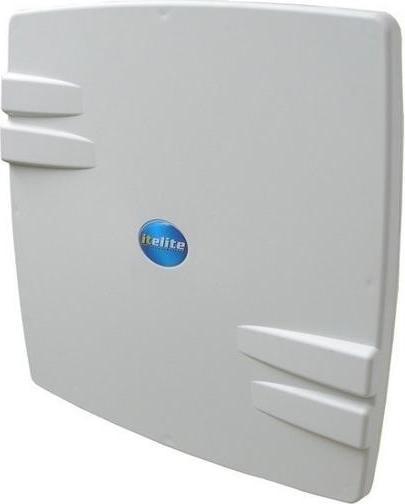

6. Itelite SRA50023 - 5 GHz 23 dBi Panel Antenna+ Enclosure - Ethernet - Power over Ethernet

IT Elite SRA50023 - 5 GHz, 23 dBi panel antenna with housing

The antenna with waterproof housing operates in the 5 GHz band with 23 dBi gain and can be mounted for horizontal or vertical polarization.

The outdoor housing offers sufficient space for router boards or other electronic accessories. The housing is equipped with a special RJ-45 waterproof Ethernet port for easy connection to the network and Power over Ethernet (PoE).

Perfectly suited for use in difficult weather conditions, the corrosion resistance of the materials allows the antenna to be operated in saltwater environments. The high quality of the mast mounting guarantees simple and smooth tilt adjustment as well as stable operation.

The antenna can be used as a client station and also as a small base station. The housing has suitable mounting holes for MikroTik Router boards of the 411, 433, and 600 series.

Key features:
- 23 dBi gain
- Special weatherproof outdoor housing
- Compatible with MikroTik Router boards
- High-quality construction
- Horizontal or vertical polarization
- Easy mounting and tilt adjustment
- Stable mounting

Designed for all weather conditions.

Applications:
- 5 GHz band wireless LAN
- IEEE 802.11a WLAN systems
- RLAN
- FWA
- WiMAX

Electrical properties:
- Frequency: 5.1 - 5.9 GHz
- Gain: 23 dBi
- Polarization: Horizontal or vertical
- Horizontal aperture angle: 10°
- Vertical aperture angle: 10°
- VSWR:
- Resistance: 50 Ohm
- Front to back ratio: >34 dB

Housing properties:
- Technology: Microstrip
- Material: UV-resistant
- Color: Grey
- Min. Temperature: -40°C / -40°F
- Max. Temperature: 80°C / 176°F

Mechanical properties:
- Compatible with: RB411, RB433, and RB600 series
- Antenna connection: SMA socket, U.FL or MMCX pigtail optional
- Housing connection: Waterproof Ethernet connector
- External dimensions: 385 x 385 x 80 mm
- Weight: 2.4 kg / 5.3 lbs. more

Network antenna

EUR80,90

Itelite SRA50023 - 5 GHz 23 dBi Panel Antenna+ Enclosure - Ethernet - Power over Ethernet

5G

7. Itelite PRO-SEC50018DP - 5 GHz 2x 18 dBi sector antenna - sector antenna - WLAN

Itelite PRO-SEC50018DP - 5 GHz, 2x 18 dBi Sector Antenna

The sector antenna operates in the 5 GHz band with 2x 18 dBi gain and dual polarization for MIMO applications. Due to its reduced side lobes, the antenna provides a clear, strong signal even in heavily frequented areas. The antenna is resistant to interference from other networks. Increasing data throughput or changing channels does not interrupt the connection.

Perfectly suited for use in challenging weather conditions. The material is corrosion-resistant and can also be used in areas with high salt content. The professional mounting system with a scale of 0 to 15 degrees ensures easy and smooth tilting and shock-resistant operation.

Key Features:

- 2x 18 dBi sector gain
- Dual polarization H and V in one housing
- Protection class IP 66
- High-quality construction
- Reduced side lobes
- Robust mounting elements
- Easy alignment
- Designed for use in all weather conditions

Applications:

- 5 GHz band Wireless LAN
- MIMO standard
- IEEE 802.11a/n WLAN systems
- Point-to-Multipoint applications

Electrical Properties:

- Frequency: 5.15 - 6.0 GHz
- Gain: 2x 18 dBi
- Polarization: dual H and V
- Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
- Vertical beamwidth: 6°
- VSWR:
- Impedance: 50 Ohm
- Front to back ratio: >35 dB
- Port isolation: >45 dB
- Lightning protection: DC grounding

Housing Properties:

- Technology: Microstrip
- Material: UV resistant
- Color: White
- Minimum temperature: -40°C
- Maximum temperature: 120°C

Mechanical Properties:

- Input connector: SMA socket, U.FL or MMCX pigtail optional
- Wind load:
- External dimensions: 580 x 125 x 50 mm / 23.2 x 5 x 2"
- Weight: 1.5 kg / 3.3 lbs. more

Network antenna

EUR116,34

Itelite PRO-SEC50018DP - 5 GHz 2x 18 dBi sector antenna - sector antenna - WLAN

5G

8. Itelite MRA50016DP - 5 GHz 2x 16 dBi panel antenna+ enclosure - WLAN - 16 dB

IT ELITE MRA50016DP - 5 GHz, 2x 16 dBi Panel Antenna + Enclosure

Antenna with a multipurpose enclosure that operates in the 5 GHz band, featuring two independent directional panel antennas with 16 dBi gain and both horizontal and vertical polarization. It is the ideal solution for MIMO and Nstreme Dual configuration.

The enclosure provides ample space for RouterBOARDs or other electronic equipment. It is equipped with a special cable gland that allows for an easy-to-set-up connection to the internet network. LAN cables can be connected without removing the RJ45 connector.

Specifically designed for use in harsh weather conditions. The corrosion-resistant material allows for use in areas with high salinity. The high quality of the mounting elements ensures easy alignment and stable operation.

The antenna can be used as Customer Premise Equipment as well as a small base station. There is space in the enclosure for MikroTik RouterBOARDs from the 411 and 711 series.

Key Features:

- 2x 16 dBi directional gain
- Dual polarization in one enclosure
- LED display at the bottom
- Special weatherproof enclosure for outdoor use
- Suitable for MikroTik RouterBOARDs
- Highest protection class (EN 60529) IP67
- High-quality construction
- Wall mount optional
- Designed for use in any weather

Applications:

- 5 GHz band WLAN
- IEEE 802.11a WLAN systems
- 802.11n/MIMO standard
- Nstreme Dual configuration
- Point-to-point applications

Electrical Properties:

- Frequency: 5.1 - 5.9 GHz
- Gain: 2x 16 dBi
- Polarization: dual
- Horizontal beamwidth: 38°
- Vertical beamwidth: 20°
- Impedance: 50 Ohm
- Front to back ratio: > 35 dB
- Lightning protection: grounding

Enclosure Properties:

- Material: UV resistant
- Color: gray
- Protection class (EN 60529): IP 67
- Min. temperature: -40 °C / -40 °F
- Max. temperature: 80 °C / 176 °F. more

Network antenna

EUR52,90

Itelite MRA50016DP - 5 GHz 2x 16 dBi panel antenna+ enclosure - WLAN - 16 dB

5G

9. Itelite SRA-SE50016H - 5 GHz 16 dBi Sector Antenna Box - Sector Antenna - Ethernet

IT ELITE SRA-SE50016H - 5 GHz, 16 dBi Sector Antenna Box

The sector antenna operates in the 5 GHz band with a gain of 16 dBi and horizontal polarization, providing space for additional electronics.

The package includes a waterproof outdoor enclosure with a sector antenna and ample space for RouterBOARDs or other electronic accessories. The enclosure is equipped with a special waterproof RJ-45 Ethernet connector for easy network connection and PoE.

Ideal for use in harsh weather conditions, as the corrosion resistance of the materials allows the antenna to operate even in saltwater environments. The high-quality mast mount ensures easy and smooth tilt adjustment as well as shock-resistant operation.

This product is excellent for point-to-point and multipoint connections. The enclosure features suitable mounting holes for MikroTik RouterBOARDs of the 411, 433, and 600 series.

Key Features:

- 16 dBi sector gain
- Special weatherproof enclosure for outdoor use
- Compatible with MikroTik RouterBOARDs
- High-quality construction
- Robust mounting elements
- Easy alignment and installation
- Designed for use in all weather conditions

Applications:

- 5 GHz band Wireless LAN
- IEEE 802.11a WLAN systems
- RLAN
- WiMAX
- Point-to-multipoint applications

Electrical Properties:

- Frequency: 5.1 - 5.9 GHz
- Gain: 16 dBi
- Polarization: Horizontal
- Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
- Vertical beamwidth: 9°
- VSWR:
- Impedance: 50 Ohm
- Front to Back Ratio: > 35 dB

Enclosure Properties:

- Technology: Microstrip
- Material: UV-resistant
- Color: Gray
- Minimum temperature: -40°C
- Maximum temperature: 80°C

Mechanical Properties:

- Compatible with: RB411, RB433, and RB600 series
- Connector: N-jack
- Enclosure connection: Waterproof Ethernet connector
- External dimensions: 385 x 385 x 80 mm
- Weight: 2.4 kg / 5.3 lbs. more

Network antenna

EUR109,–

Itelite SRA-SE50016H - 5 GHz 16 dBi Sector Antenna Box - Sector Antenna - Ethernet

5G

10. Itelite SEC24015V - 2.4 GHz 15 dBi Outdoor Sector Antenna - Sector Antenna - WLAN

IT ELITE SEC24015V - 2.4 GHz, 15 dBi Outdoor Sector Antenna

The sector antenna operates in the 2.4 GHz band with a gain of 15 dBi and vertical polarization. Due to its reduced side lobes, the antenna provides a clear, strong signal even in heavily frequented areas. The antenna is resistant to interference from other networks. Increasing the data throughput or changing the channel does not interrupt the connection.

It is perfectly suited for use in challenging weather conditions, as the corrosion resistance of the materials allows the antenna to be operated even in saltwater environments. A professional mounting system with a 0-15 degree scale ensures easy and smooth tilt adjustment as well as stable operation.

Main Features:

- 15 dBi sector gain
- Special weatherproof outdoor housing
- Highest protection class IP 66
- High-quality construction
- Low side lobes
- Vertical polarization
- Robust mounting elements
- Easy alignment
- Designed for operation in any weather

Applications:

- 2.4 GHz band Wireless LAN
- IEEE 802.11b/g WLAN systems
- Point-to-point applications

Electrical Properties:

- Frequency: 2.4 – 2.5 GHz
- Gain: 15 dBi
- Polarization: vertical
- Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
- Vertical beamwidth: 12°
- VSWR:
- Impedance: 50 Ohm
- Front-to-back ratio: > 35 dB

Mechanical Properties:

- Technology: Microstrip
- Antenna connector: N socket
- Dimensions: 580 x 125 x 50 mm
- Weight: 1.5 kg
- Radome material: UV resistant
- Color: white
- Construction: All-weather operation. more

Network antenna

EUR82,90

Itelite SEC24015V - 2.4 GHz 15 dBi Outdoor Sector Antenna - Sector Antenna - WLAN
