Best Wago products in the Network switches category
On this page you'll find a ranking of the best Wago products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Wago 852-602 Industrial Managed Switch 8
Industrial Managed Switch; 8 Ports 100Base-TX; PROFINET; extended temperature range; metallic black. The 852-602 is an industrial, configurable managed Ethernet switch with 8 copper ports 10/100BASE-TX. The switch features a robust housing, redundant power supply, and functional monitoring with relays. The PROFINET certification (Conformance Class B) ensures easy integration into PROFINET automation systems via a device description file (GSD). Additionally, the device supports PROFINET Netload Class II.
The device supports flexible configuration of multi-port mirroring via the device description file or web-based management. With the help of function blocks, the cyclic diagnosis of the PROFINET switch can be efficiently implemented in the TIA Portal. An application note is available for this purpose.
Features:
- Web-based/SNMP management
- Redundant DC power supply
- Power supply range: DC 12 … 60 V
- DIP switch for enabling alarm functions
- Fully compliant with standards IEEE802.3, 802.3u, 802.3x, 802.1d, 802.1w, 802.1s, 802.1Q, 802.1p
- Media Redundancy Protocol (MRP) as Manager (MRM) or Client (MRC), redundant ring
- Non-blocking, Store-and-Forward switching, Rapid Spanning Tree Protocol (RSTP)
- Auto-negotiation and AUTO-MDI/MDI-C (Crossover)
- VLAN (802.1Q) VI
- IGMP Snooping
- Port configuration, status, statistics
- Port trunking and multi-port mirroring
- SNMP v1/v2c/v3 and RMON
- Time synchronization using SNTP
- Storm control, bandwidth limitation, and loop detection.
2. Wago Compact
Compact Controller 100
8DI 4DO 2AI 2AO 2NI1K/PT1K 1RS485
2 x Ethernet
The Compact Controller 100, equipped with a real-time Linux® operating system, offers users complete freedom: The compact controller can be freely programmed with CODESYS V3, but it can also be used for engineering independent of IEC 61131, for example with Node-RED, Python, or C++. Additionally, Docker® can be easily installed on the device as a virtualization environment. This transforms the Compact Controller 100 into a fully-fledged IIoT device with gateway functionality. WAGO optimally combines the requirements from two worlds in one device and consistently adheres to its competency claim "Automation meets IT." Another advantage of the Compact Controller 100 is that, thanks to its design as a rail-mounted device (REG), it can also be installed in compact distribution boards according to DIN 43880. The I/O unit is housed together with the controller in a compact enclosure, thus requiring no additional space for further control components. The wiring level is detachable, which offers advantages during installation and commissioning.
Your benefits:
Flexible, fast, and easy engineering.
Controller with real-time Linux® operating system.
Compact controller with I/Os in a REG form factor enclosure.

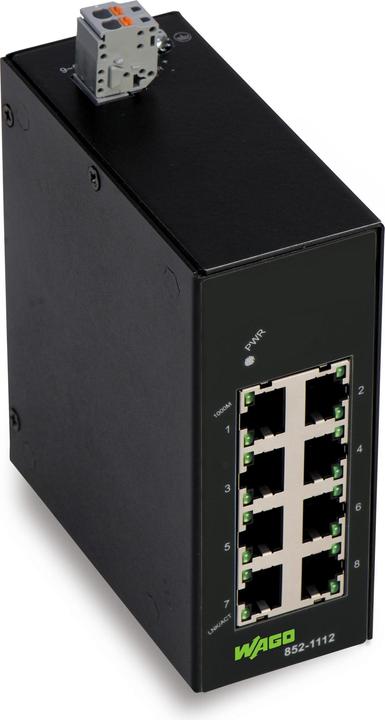

3. Wago Industrial Ethernet Switch ECO Switch, 8 Ports 1000Base T
Through the eight ports of the switch, multiple segments can be formed to reduce network congestion, and each user node can be assigned its own bandwidth. The 852-1112 is a cost-effective solution to meet the growing demand for IP-based industrial communication. The switch is easy to configure and install, making it particularly suitable for small and medium-sized networks.
Features:
- 8 Ethernet ports 10/100/1000 Mbps Auto-negotiation
- Diagnostic LEDs on the front
- Supports Auto-MDI/MDI-X functions
- Half or full duplex transmission mode per port
- Store-and-forward switching method
- Integrated address look-up table, supports up to 8000 absolute MAC addresses
- Surge protection
- IEEE 802.3x flow control in full duplex mode
- For DIN rail mounting 35.
4. Wago Industrial Ethernet Switch ECO 5 Port
The 852-111 is a cost-effective solution to respond to the growing demand for IP-based industrial communications. The switch is easy to configure and install, and is particularly suitable for small and medium-sized networks.
5. Wago Industrial managed switch
The Wago Industrial Managed Switch 852-1505 is a highly advanced industrial Ethernet switch designed for demanding applications in the industry. With 8 ports supporting 10/100/1000BASE-T and 4 SFP slots for 1000BASE-SX/LX, this switch offers a flexible and powerful solution for network management. All 8 ports are equipped with Power over Ethernet (PoE+), allowing for a maximum power output of 30 W per port. This makes it ideal for operating PoE-enabled devices such as IP cameras and access points. The switch is housed in a robust enclosure and features redundant power supply and comprehensive function monitoring to ensure reliability and stability in industrial environments. The web-based management and support for SNMP enable easy configuration and monitoring of the network.
- Fully manageable switch with extensive Ethernet management options
- Supports Power over Ethernet (PoE+) on all 8 ports
- Rugged housing with redundant power supply
- Compatible with numerous Ethernet standards
- Offers features such as VLAN, IGMP snooping, and Rapid Spanning Tree Protocol (RSTP).
6. Wago 852-1605 INDUSTRIAL-MANAGED-SWITCH
Industrial Managed Switch; 8 Ports 1000Base-T; 4-Slot 1000BASE-SX/LX; PROFINET; extended temperature range; metallic black. The 852-1605 is an industrial, configurable managed Ethernet switch with 8 copper ports 10/100/1000BASE-T and 4 SFP slots 1000BASE-SX/LX (SFP modules are available optionally). The switch features a robust housing, redundant power supply, and functional monitoring with relays. The PROFINET certification (Conformance Class B) ensures easy integration into PROFINET automation systems via the device description file (GSD). Additionally, the device supports PROFINET Netload Class II. It allows for flexible configuration of multi-port mirroring through the device description file or web-based management. With the help of function blocks, the cyclic diagnosis of the PROFINET switch can be efficiently implemented in the TIA Portal. An application note is available for this purpose.
Features:
- Web-based/SNMP management
- Redundant DC power supply
- Power supply range: DC 12 … 60 V
- DIP switch for enabling alarm functions
- Fully compatible with standards IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1d, 802.1w, 802.1s, 802.1Q, 802.1p
- Media Redundancy Protocol (MRP) as Manager (MRM) or Client (MRC), redundant ring
- Non-blocking, Store-and-Forward Switching, Rapid Spanning Tree Protocol (RSTP)
- Auto-negotiation and AUTO-MDI/MDI-C (Crossover)
- VLAN (802.1Q) VI
- DGM-Snooping
- Port configuration, status, statistics
- Port trunking and multi-port mirroring
- SNMP v1/v2c/v3 and RMON
- Time synchronization using SNTP
- Storm control, bandwidth limiting, and loop detection.
7. Wago 852-102 Industrial switch 8 ports
Industrial Switch 8 Ports 100Base-TX black
The Switch 852-102 is an industrial unmanaged Ethernet switch with 8 Fast-Ethernet ports designed for easy setup of small to medium networks. Its slim design with a DIN rail adapter allows for straightforward installation in control cabinets while providing high resistance to vibrations and shocks. The automatic detection of transmission rates (Auto-negotiation) and the self-detection of send and receive lines (Auto MDI-X) enable simple plug-and-play operation, helping to save costs and time during commissioning.
Status LEDs, a redundant power supply, and a dip switch-configurable alarm contact enhance the redundancy and diagnostic capabilities of the switch, ensuring higher availability during operation.
Features:
Redundant DC power supply.
Wide supply voltage range: 9-48 V.
DIP switch for enabling alarm functions.
Fully compliant with IEEE802.3, 802.3u standards.
Non-blocking, store-and-forward switching.
Auto-negotiation on all 10/100BASE-TX ports.
Auto-MDI/MDIX (crossover) on all 10/100BASE-TX ports.
8. Wago Industrial Ethernet Switch
The 4 Ports PoE+ can be used simultaneously for power supply. The integrated voltage converter allows operation with the standard DC-24V power supplies commonly used in control cabinets. In addition to reducing wiring effort, a separate power supply for PoE can also be eliminated. The switch is easy to configure and can be easily integrated into the control cabinet due to its DIN rail mounting. It is particularly suitable for small and medium-sized networks, but also offers integration into extensive networks through its SFP slots.

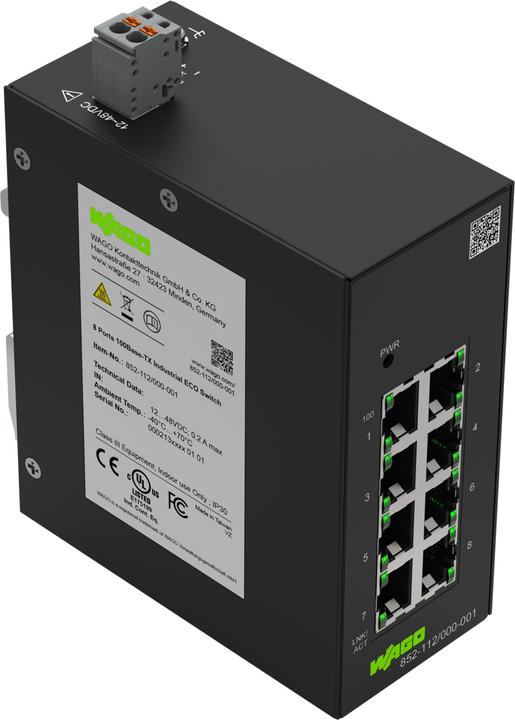

9. Wago 852-112/000-001 Industrial-ECO-
Industrial-ECO-Switch
8 Ports 100Base-TX
The switch 852-112/000-001 is an industrial unmanaged Ethernet switch with 8 Fast Ethernet ports for the easy setup of small to medium networks. Its compact design with a DIN rail adapter allows for simple installation in control cabinets while providing high resistance to vibrations and shocks. The automatic detection of transmission rates (Auto-negotiation) and the self-detection of send and receive lines (Auto MDI-X) enable easy plug-and-play operation, helping to save costs and time during commissioning.
Features:
8 Ethernet ports 10/100 MBit/s Auto-negotiation.
Diagnostic LEDs on the front.
Supports Auto-MDI/MDI-X functions.
Half or full duplex transmission mode per port.
Store-and-forward switching method.
Integrated address lookup table, supports up to 1000 absolute MAC addresses.
Surge protection.
Data flow control according to IEEE 802.3x Flow Control in full duplex operation.
For DIN rail 35 (TS 35).
10. Wago 852-1106 Industrial switch
Industrial Switch, 16 Ports 1000Base-T, extended temperature range, metallic black
The Switch 852-1106 is an industrial unmanaged Ethernet switch with 16 Gigabit Ethernet ports designed for easy setup of small to medium networks. Its compact design with a DIN rail adapter allows for simple installation in control cabinets, offering high resistance to vibration and shock. Automatic detection of transmission rates (Auto-negotiation) and self-detection of send and receive lines (Auto MDI-X) facilitate easy plug-and-play operation, helping to save costs and time during commissioning. Status LEDs, redundant power supply, and a dip switch-configurable alarm contact enhance the redundancy and diagnostic capabilities of the switch, ensuring higher availability during operation.
Features:
- Redundant DC power supply
- Wide supply voltage range: DC 12-60 V
- Dip switch for enabling alarm functions
- Fully compliant with IEEE standards 802.3, 802.3u, 802.3ab
- Non-blocking, Store-and-Forward switching
- Auto-negotiation on all 10/100/1000BASE-T ports
- Auto-MDI/MDIX crossover on all 10/100/1000BASE-T ports
- Integrated address look-up table, supports up to 8000 absolute MAC addresses
- Surge protection
- Prioritization of Ethernet data packets for PROFINET protocol, EtherType=0x8892 according to IEEE 802.1p.
