Four-Faith F-R200-FL-SIM2 - M2M 3G/4G Industrial Router, Cellular (LTE/WCDMA), WiFi, 2x SIM
Best Four-Faith products in the Routers category
On this page you'll find a ranking of the best Four-Faith products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Four-Faith F-R200-FL-SIM2 - M2M 3G/4G Industrial Router, Cellular (LTE/WCDMA), WiFi, 2x SIM
F-R200-FL-SIM2 - M2M 3G/4G Industrial Router, Cellular (LTE/WCDMA), WiFi, 2x SIM
The Four-Faith F-R200 is an intelligent cellular router designed for industrial applications requiring faultless connectivity. It provides secure, reliable, real-time remote connectivity for SCADA, distribution management systems, metering, and more. With software-defined multi-carrier networking, dual SIM models, 802.11n/802.11ac, and global 2.5G/3G/HSPA+/LTE options, it is easy to get connected. Featuring DIN-rail mounting, a wide operating temperature range, and an IP30 metal housing, the F-R200 is a convenient yet reliable solution for any industrial wireless application.
Cellular WAN
Supported frequency bands: LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28; WCDMA: 2100 (B1), 1900 (B2), 850 (B5); EV-DO/CDMA: 800 (BC0); GSM/GPRS/EDGE: 850/900/1800/1900. Automatic SIM-based network operator switching.
Host Interfaces
10/100/1000 Base-T RJ45 Ethernet port, RS-232 or RS-485 serial console port, 3x SMA antenna connectors (Wi-Fi and double-cellular), Active GPS antenna support (optional), 6-pin 3.5 mm terminal block.
Management Interfaces
Web-based user interface, device configuration templates, software and radio module firmware updates, AT Command Line Interface (Telnet/SSH/serial), SMS commands (optional), SNMP.
Input/Output
6-pin 3.5 mm terminal block, 2 DI, 1 DO, 1 relay. Input ON voltage: 5 to 30 V DC, Input OFF voltage: 0 to 3 V DC, Output: Relay: 1 A, 250 V AC/30 V DC.
LAN
DNS, DNS proxy, DHCP server, IP passthrough (optional), VLAN, host interface watchdog, PPPoE.
Serial
TCP/UDP PAD mode, Modbus (ASCII, DTU, variable), PPP, reverse Telnet.
WiFi
IEEE 802.11 ac, compatible with IEEE 802.11 b/g/n, AP and client mode, adjustable output power (max.: 26 dBm), access point for up to 30 clients, simultaneous access point/client mode, WEP, WPA-PSK, WPA2-PSK, and other security options.
Networking and Routing
Network Address Translation (NAT), port forwarding, host port routing, VRRP, reliable static route, dynamic DNS, VPN (IPSec, GRE, and OpenVPN).
2. Four-Faith F8926GW-FL - F8926GW - LoRaWan + GPRS 2G/3G/4G Cellular Wi-Fi Gateway Indoor Router
Four-Faith F8926GW - Mobile WLAN Gateway, LoRaWan + GPRS 2G/3G/4G for Indoor Use
The F8926GW is a wireless data transmission gateway based on the LoRaWAN standard protocol, applicable to terminals and NS that comply with the LoRaWAN standard. It can connect with LoRaWAN terminals in various application nodes, collects useful information, and transmits the data via a wireless 3G/4G mobile network or wired Ethernet to a cloud server.
The product utilizes a powerful industrial 32-bit CPU and a wireless module with an embedded real-time operating system as its software support platform. It offers 1x Ethernet LAN/WAN (configurable), 1x WLAN interface, supports WLAN configuration, management, and online updates, as well as DC input.
The product is widely used in the M2M industry of the IoT industrial chain, including smart grid, intelligent transport, smart home, finance, mobile POS gateways, supply chain automation, industrial automation, smart buildings, fire protection, public safety, environmental protection, meteorology, digital medicine, telemetry, agriculture and forestry, water, coal, petrochemicals, and other related fields.
Key Features:
- Communication range: 6 km
- Max. TX power: 23 +/- 2 dBm
- RT sensitivity: Max. -142 dBm (at LoRa); -70 dBm (at Wi-Fi)
- Communication bandwidth: 125 kHz, 250 kHz, 500 kHz
- 8 upstream channels, 1 downstream channel
- Reliable and low-latency wireless communication
- Speed: Adaptive connection speed
- Operating mode: Supports different frequency and same frequency
- Report to server: 3G/4G, wired network
- Wireless management: WLAN management and upgrade
- Protection class IP 65
- RF region: EU868 - Europe 863-870 MHz
Product Attributes: Gateway
Represented Solution: Smart Cities, Smart Industries, Home, Smart Building, Smart Metering
Gateway Type:...
Routers
EUR389,–
Four-Faith F8926GW-FL - F8926GW - LoRaWan + GPRS 2G/3G/4G Cellular Wi-Fi Gateway Indoor Router

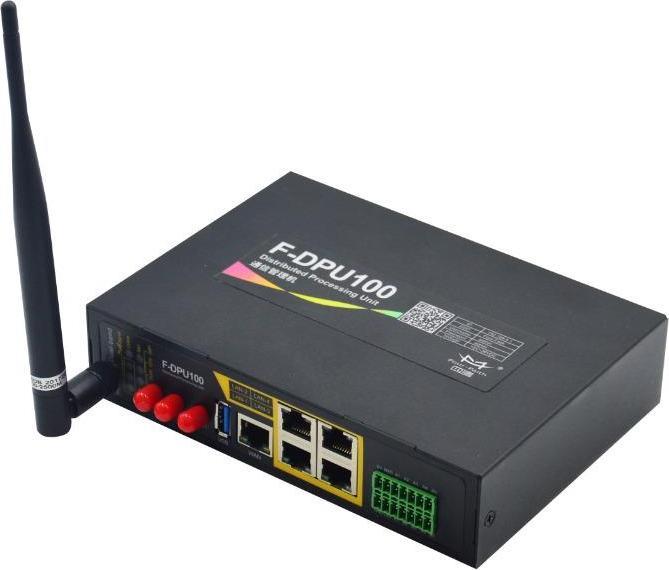

3. Four-Faith F-DPU100-FL - F-DPU100 - 4G Distributed Processing Unit
The F-DPU100-FL - 4G Distributed Processing Unit from Four-Faith is a powerful 4G router that provides both wireless and wired transmission channels. This device ensures a constant online connection for terminals by supporting a variety of mobile networks, including 2.5G, 3G, 4G, and NB-IoT. The dual-link backup feature enables intelligent switching between connections, while support for dual-band Wi-Fi (2.4 GHz and 5.8 GHz) ensures comprehensive Wi-Fi coverage and performance. The F-DPU100-FL also offers efficient remote management, facilitating the configuration, updating, and maintenance of devices across different regions. This leads to a significant reduction in maintenance costs and an improvement in management efficiency for operators and integrators.
- Supports a variety of mobile standards, including 2.5G, 3G, 4G, and NB-IoT
- Dual-link backup for intelligent switching between connections
- Efficient remote management for monitoring and maintaining devices
- Dual-band Wi-Fi for enhanced coverage and performance
- Versatile host interfaces, including Ethernet and serial ports.
4. Four-Faith F-NR100 - 5G Cellular Industrial Router
F-NR100 - 5G Cellular Industrial Router
The Four-Faith 5G industrial router can be deployed in harsh and complex factory environments, where it can be directly connected to industrial equipment and devices for IoT terminals for data collection. With massive real-time data transmission, managers can easily monitor production and operational situations at different times and in various regions.
Industrial design, high and low temperature resistance, durable.
Powerful 32-bit communication processors and industrial-grade radio modules are used in the development and manufacturing of the Four-Faith 5G industrial routers to ensure that the products can operate stably in harsh environments over the long term.
The robust metal casing provides a high level of protection and withstands high temperatures and pressure. It also performs well under extreme conditions such as unstable voltages, high electromagnetic radiation, as well as rain and dust, ensuring continuous communication between remote devices and the monitoring center.
Supports dual-band Wi-Fi (2.4 GHz and 5.8 GHz).
With 2.4 GHz and 5.8 GHz dual-band Wi-Fi, users can establish connections.
Multi-antenna design to enhance data transmission and reception capabilities.
Four external high-performance antennas achieve greater isolation between antennas of the same frequency due to their layout, helping to effectively reduce frequency interference and improve data transmission and reception capabilities.
Extensive application scenarios.
5G industrial routers are widely used in the M2M industry within the IoT industrial chain, such as in smart factories, smart medical devices, smart ports, and video transmission for new media.

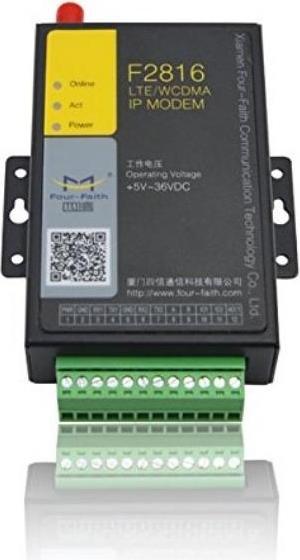

5. Four-Faith F2816 - 2G/3G/4G GPRS WCDMA LTE IP Modem
Four-Faith F2816 - 2G/3G/4G GPRS/WCDMA/LTE IP Modem
The FDD-LTE IP modem F2816 is a mobile device that provides data transmission functions over the public GPRS network. It utilizes a powerful industrial 32-bit CPU and an embedded real-time operating system. It supports RS232 and RS485 ports (or RS422 ports), allowing devices to be conveniently and transparently connected to a mobile network. This enables you to connect to your existing serial devices with just a basic configuration. It has low power consumption, with power usage potentially below 5 mA at 12 VDC. It features a compatible digital I/O channel, an ADC, an input pulse counter, and a pulse wave output function.
It has been widely used in M2M fields such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environmental protection, postal services, weather, etc.
Mobile Specifications:
Mobile Module: Industrial mobile module
Standard and Band: LTE FDD 2600/2100/1800/900/800 MHz Band 1/3/7/8/20, 700/850/1700/1900/2100 MHz (Band 2/4/5/13/17/25) (optional); DC-HSPA+/HSPA+/HSDPA/HSUPA/WCDMA/UMTS 2100/1900/900/850/800 MHz (Band 1/2/5/6/8; EDGE/GPRS/GSM 850/900/1800/1900 MHz)
Bandwidth: LTE-FDD: 100 Mbit/s (DL), 50 Mbit/s (UL); HSDPA: 7.2 Mbit/s (DL), HSUPA: 5.76 Mbit/s (UL); UMTS: 384 Kbit/s (DL), 384 Kbit/s (UL); HSPA+: 42 Mbit/s (DL), 5.76 Mbit/s (UL)
Transmit Power: Receive Sensitivity: Hardware System
CPU: Industrial 32-bit CPU
Flash: 512 KB (expandable)
SRAM: 256 KB
Interface Type:
Serial: 2x RS232 ports and 1x RS485 (or RS422) port, 15 kV ESD protection
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Baud Rate: 110 ~ 230400 bps
Indicator: Power, Activity, Online
Antenna: Standard SMA connector, 50 Ohm, Lightning protection (optional)
SIM/UIM: Standard 3...

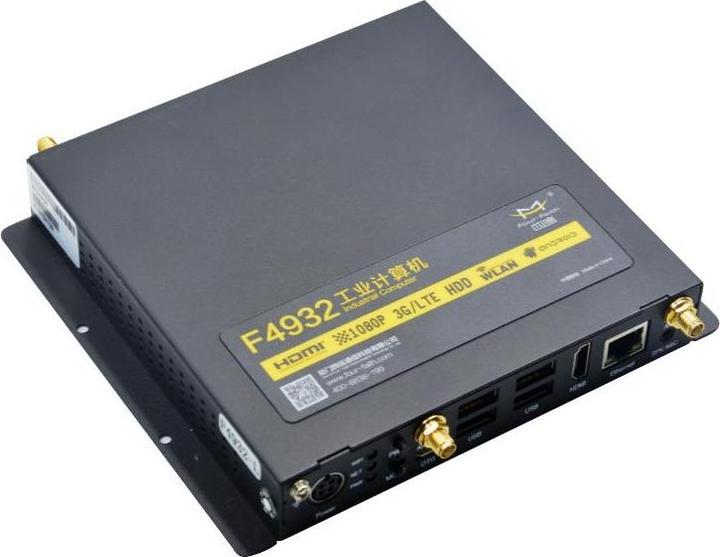

6. Four-Faith F4932-FL (F-IPC120-FL) - F4932 - GPRS/ LTE&WCDMA industrial computer
F4932 - GPRS/LTE and WCDMA Computer
The F4932 is an industrial computer with low power consumption. It integrates wireless mobile networks and routing technology along with industrial computer technology. The system utilizes the Freescale Cortex-A9 i.MX 6X processor with a frequency of 1.0 GHz, providing high-speed computing support for client task programs. It supports OpenGLES 2.0 and OpenVG 1.1 hardware accelerators. The Full HD 1080P video codec engine delivers a smooth and powerful video experience for multimedia playback. The F4932 includes four USB ports, three RS232/RS485 ports, HDMI, internet, and audio interfaces. It can connect to external code guns, printers, cameras, keyboards, mice, infrared screens, LCD screens, and other devices. The Android operating system is set up, and API and exploit documents are provided, allowing customers to easily use and develop applications.
Features:
- Supports 1080p video codec and 3D acceleration
- Support for local storage SSD solid-state drives (optional), TF card (optional)
- Opens the Android environment, enabling application development and installation
- Supports HDMI, LVDS (optional), external touchscreen display devices, etc.
- Supports 802.11 b/g/n WIFI network and offers various encryption methods
- Provides extensive external interfaces to meet customer application requirements
- Supports 3G/4G dial-up internet access
- Supports APN/dial VPDN private network
- Supports intelligent online and offline reconnections, recovery of abnormal functions
- Supports PPTP, L2TP, IPSEC, GRE, OPEN VPN, and other VPN functions
- Provides PWRS, NET, WIFI for convenient maintenance
- Supports NTP, with a built-in real-time clock, regular support, and timer restart
- Supports device management platform.

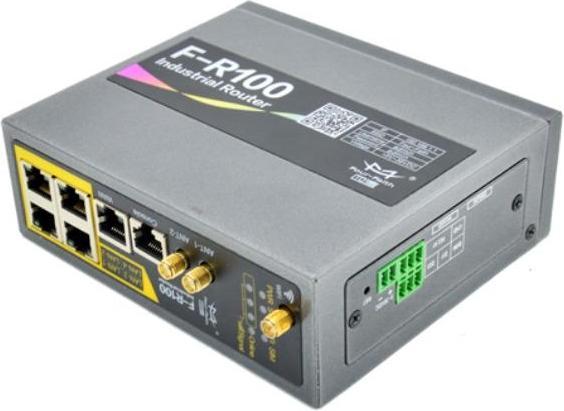

7. Four-Faith F-R100-FL-SIM2 - M2M 3G/4G Industrial Router, Cellular (LTE/WCDMA), WiFi, 2x SIM
F-R100-FL-SIM2 - M2M 3G/4G Industrial Router, Cellular (LTE/WCDMA), WiFi, 2x SIM
The Four-Faith F-R100 is an intelligent cellular router designed for industrial applications requiring faultless connectivity. It provides secure, reliable, real-time remote connectivity for SCADA, distribution management systems, metering, and more. With software-defined multi-carrier networking, dual SIM models, 802.11n, and global 2.5G/3G/HSPA+/LTE options, it is easy to get connected. The F-R100 features DIN-rail mounting, a wide operating temperature range, and IP30 metal housing, making it a convenient yet reliable solution for any industrial wireless application.
Cellular WAN
Supported frequency bands: LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28; WCDMA: 2100 (B1), 1900 (B2), 850 (B5); EV-DO/CDMA: 800 (BC0); GSM/GPRS/EDGE: 850/900/1800/1900. Automatic SIM-based network operator switching.
Host Interfaces
- 10/100 Base-T RJ45 Ethernet port
- RS-232 or RS-485 serial console port
- 3x SMA antenna connectors (Wi-Fi and double-cellular)
- Active GPS antenna support (optional)
- (6) pin 3.5 mm terminal block
Management Interfaces
- Web-based user interface
- Device configuration templates
- Software and radio module firmware updates
- AT Command Line Interface (Telnet/SSH/serial)
- SMS commands (optional)
Input/Output
- (6) pin 3.5 mm terminal block
- (2) DI, (1) DO, (1) relay
- Input ON voltage: 5 to 30 V DC
- Input OFF voltage: 0 to 3 V DC
- Output: Relay: 1 A, 250 V AC/30 V DC
LAN
- DNS, DNS proxy
- DHCP server
- IP passthrough (optional)
- VLAN
- Host interface watchdog
- PPPoE
Serial
- TCP/UDP PAD mode
- Modbus (ASCII, DTU, variable)
- PPP
- Reverse Telnet
WiFi
- IEEE 802.11 b/g/n, AP and client mode
- Adjustable output power (max.: 26 dBm)
- Access point for up to 30 clients
- Simultaneous access point/client mode
- WEP, WPA-PSK, WPA2-PSK, and other security options
Networking and Routing
- Network Address Translation (NAT)
- Port forwarding
- Host port routing
- VRRP
- Reliable Static Route
- Dynamic DNS
- VPN: IPSec, GRE, and OpenVPN client with up to 10 concurrent tunnels.
Routers
EUR339,–
Four-Faith F-R100-FL-SIM2 - M2M 3G/4G Industrial Router, Cellular (LTE/WCDMA), WiFi, 2x SIM

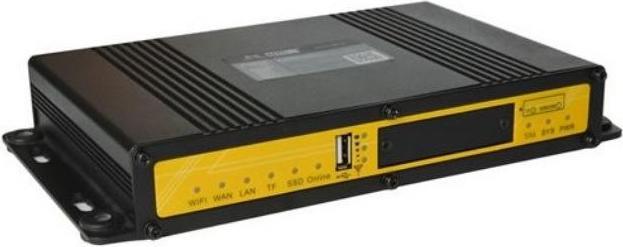

8. Four-Faith F3936H - LTE/WCDMA vehicle Wi-Fi new media operating terminal
Four-Faith F3936H - LTE/WCDMA vehicle Wi-Fi new media operating terminal
The F3936 is a vehicle Wi-Fi new media operating terminal that integrates advanced 3G/4G/Wi-Fi communication, GPS/Beidou (optional) positioning technology, local large-capacity storage, and multimedia advertising push technology. Passengers can use smartphones, tablets, and notebooks to freely enjoy local videos, news, music, games, and quickly connect to the Internet. Media operators can also provide additional value-added services.
The F3936 has been widely used in public transportation, tourism, finance, and medical industries, including urban public transport, customized buses, bus stations, tour buses, long-distance passenger buses, tourist attractions, banks, and hospitals.
9. Four-Faith F-R100-FL - Cellular (LTE/WCDMA) Wi-Fi Router
Four-Faith F-R100-FL - Cellular (LTE/WCDMA) Wi-Fi Router
The Four-Faith F-R100 is an intelligent cellular router designed for industrial applications requiring faultless connectivity. It provides secure, reliable, real-time remote connectivity for SCADA, distribution management systems, metering, and more.
With software-defined, multi-carrier networking, dual-SIM models, 802.11n, and global 2.5G/3G/HSPA+/LTE options, it is easy to get connected. Featuring DIN-rail mounting, a wide operating temperature range, and IP30 metal housing, the F-R100 is a convenient yet reliable solution for any industrial wireless application.
Model F-R100-FL: Cellular (LTE/WCDMA), Wi-Fi, 1x SIM (expandable to 2), I/O (2x DI, 1x DO, 1x relay), GPS (option).
Cellular WAN
Supported frequency bands: LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28; WCDMA: 2100 (B1), 1900 (B2), 850 (B5); EV-DO/CDMA: 800 (BC0); GSM/GPRS/EDGE: 850/900/1800/1900. Automatic SIM-based network operator switching.
Host Interfaces
10/100 Base-T RJ45 Ethernet port, RS-232 or RS-485 serial console port, 3x SMA antenna connectors (Wi-Fi and double-cellular), active GPS antenna support (option), 6-pin 3.5 mm terminal block.
Wi-Fi
IEEE 802.11 b/g/n, AP and client mode, adjustable output power (max.: 26 dBm), access point for up to 30 clients, simultaneous access point/client mode, WEP, WPA-PSK, WPA2-PSK security.
Input/Output
6-pin 3.5 mm terminal block, 2 DI, 1 DO, 1 relay. Input ON voltage: 5 to 30 V DC. Input OFF voltage: 0 to 3 V DC. Output: Relay: 1 A, 250 V AC/30 V DC.
Operation Environment
Operating temperature: -35°C to +75°C/-31°F to +167°F. Storage temperature: -40°C to 85°C/-40°F to 185°F. Humidity: 90% RH at 60°C.

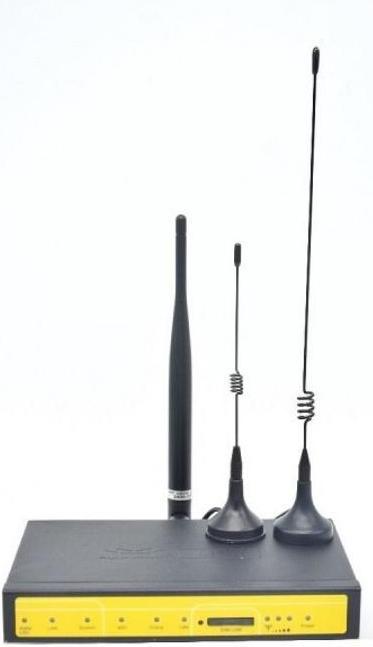

10. Four-Faith F3827 - 2G/3G/4G GPRS/LTE & WCDMA Router
Four-Faith F3827 - 2G/3G/4G GPRS/LTE and WCDMA Router
The F3X27 series router is a mobile communication device that provides data transmission capabilities over a public GPRS/CDMA/WCDMA/EVDO/LTE network. It utilizes a powerful industrial 32-bit CPU and an embedded real-time operating system. It supports RS232 (or RS485/RS422) and Ethernet ports, allowing for easy and transparent connection of a device to a mobile network, enabling you to connect to your existing serial and Ethernet devices with just a basic configuration. It has been widely used in M2M applications, such as self-service terminals, intelligent transportation, smart grids, industrial automation, telemetry, finance, POS, water supply, environmental protection, postal services, weather, and more.
Standards and Bands: LTE FDD 2600/2100/1800/900/800 MHz, 700/1700/2100 MHz (optional); DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS: 850/900/2100 MHz, 800/850/1900/2100 MHz (optional); EDGE/GPRS/GSM 850/900/1800/1900 MHz; GPRS Class 10; GPRS Class 12. Bandwidth: LTE FDD: Download speed 100 Mbps, Upload speed 50 Mbps; DC-HSPA+: Download speed 42 Mbps, Upload speed 5.76 Mbps; HSPA+: Download speed 21 Mbps, Upload speed 5.76 Mbps; HSDPA: Download speed 7.2 Mbps, HSUPA: Upload speed 5.76 Mbps; UMTS: 384 Kbps.
Transmit Power: Receive Sensitivity: Hardware System. CPU: Industrial 32-bit CPU. Flash: 16 MB (expandable to 64 MB). DDR2: 128 MB. Interface Type: Ethernet: 1x 10/100 Mbps Ethernet port (RJ45), Auto-MDI/MDIX, magnetic isolation protection of 1.5 kV. Serial: 1x RS232 (or RS485/RS422) port, 15 kV ESD protection; Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5 (optional), 2; Parity: none, even, odd, space (optional), mark (optional); Baud rate: 2400 ~ 115200.
