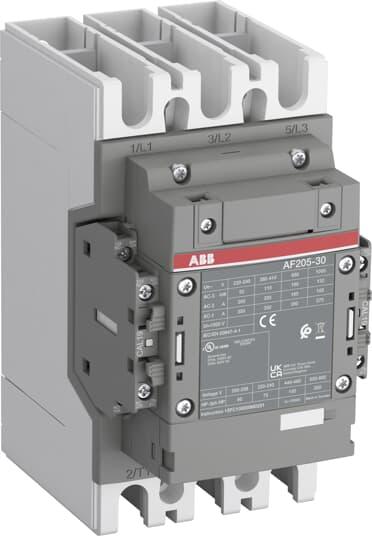

ABB Stotz S&J Contactor AF205-30-22-13

Manufacturer: ABB Stotz S&J
Designation: Contactor 100-250V AC/DC
Type: AF205-30-22-13
Rated control supply voltage Us at AC 50 Hz: 100..250 V
Rated control supply voltage Us at AC 60 Hz: 100..250 V
Rated control supply voltage Us at DC: 100..250 V
Voltage type for operation: AC/DC
Rated operational current Ie at AC-1, 400 V: 350 A
Rated operational current Ie at AC-3, 400 V: 205 A
Rated operational power at AC-3, 400 V: 110 kW
Rated operational power NEMA: 55.9275 kW
Suitable for rail mounting: no
Number of auxiliary contacts as normally closed: 2
Number of auxiliary contacts as normally open: 2
Connection type main circuit: screw connection
Number of normally closed main contacts: 3

ABB Stotz S&J Contactor AF205-30-22-13: Additional Details
The contactors AF116 to AF750 from 55 to 400 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional required suppression components. This makes them globally applicable with minimal variance. AF116 to AF370 are also available in versions that can be directly controlled from a PLC, and from AF400 a PLC input is standard. AF contactors switch power circuits with motors, lightly inductive or non-inductive loads. Mountable accessories include up to 2 two-pole auxiliary switches that can be mounted on the right or left side. All auxiliary normally open contacts are designed as mirror contacts according to IEC60947-5-1 Annex L. Additional accessories such as terminal covers, wiring aids, and locking elements complement the range.
EAN: 7320500480601.
