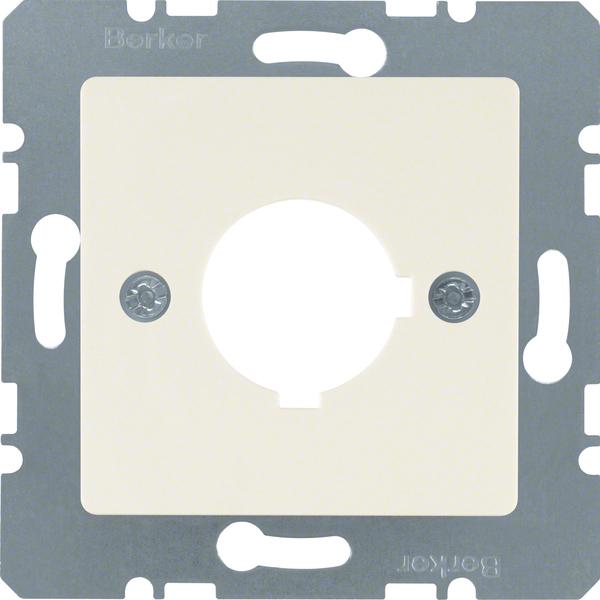

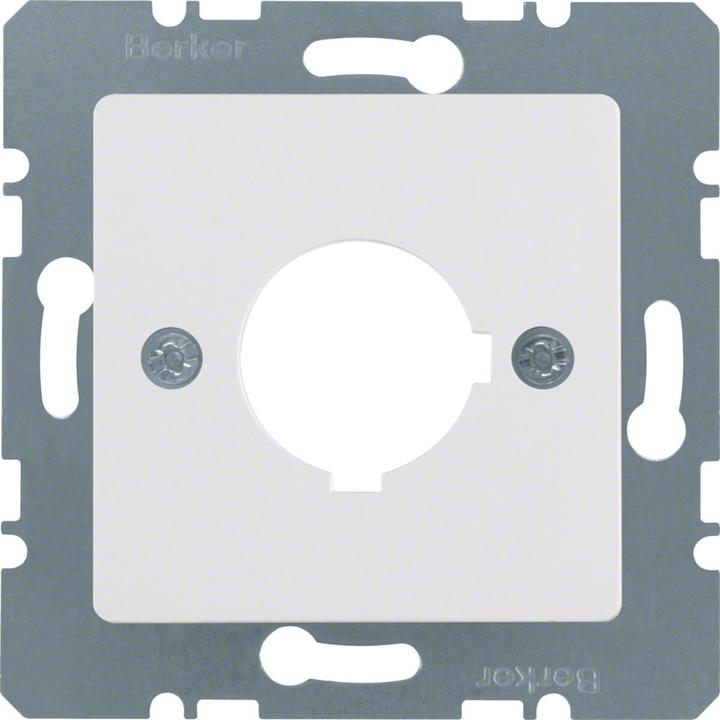

Berker central plate PWS 143209
Manufacturer: Berker
Designation: Central plate PWS for signaling/control device
Type: 143209
Assembly: Base element with adapter plate
Usage: Other
Support ring: Yes
With dust protection: No
With hinged cover: No
Labeling field: Labeling field can be snapped into intermediate ring
With imprint: No
Mounting type: Flush-mounted
Material: Other
Material quality: Other
Halogen-free: Yes
Surface protection: Untreated
Finish: Glossy
Color: Polar white
RAL number (similar): 9010
Transparent: No
Mounting type: Mounting with screw
With sockets/couplings: No
Suitable for number of sockets/couplings: 1
With strain relief: No
Luster terminal: No
Suitable for protection class (IP): IP20
Device width: 71 mm
Device height: 71 mm
Device depth: 10 mm

Central plate for signaling and control device Ø 22.5 mm in polar white, glossy. Central plate for signal and control unit with support plate, with cut-out, only for screw fixing above support plate. Suitable for potential equalization built-in socket, round connector, and extra-low voltage socket. Note: Only to be used with intermediate ring of the switch program. Labeling field can be snapped into matching intermediate ring.
