Berker central plate PWS 148309

Manufacturer: Berker
Designation: Central plate PWS for 4-hole antenna outlet
Type: 148309
Assembly: Central plate for intermediate ring
Usage: Other
Support ring: No
With dust protection: No
With hinged cover: No
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Glossy
Color: Polar white
RAL number (similar): 9010
Transparent: No
Mounting type: Mounting with screw
With sockets/couplings: No
Suitable for number of sockets/couplings: 4
With strain relief: No
Luster terminal: No
Suitable for protection class (IP): IP20
Device width: 51.5 mm
Device height: 51.5 mm
Device depth: 16 mm

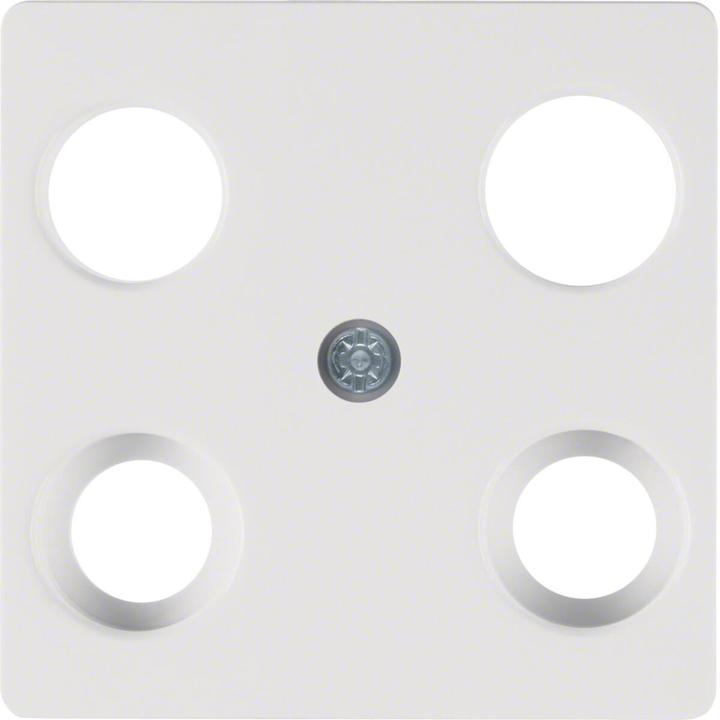

Central plate for antenna outlet, 4-hole, polar white, glossy. Central plate for 4-hole antenna sockets (Hirschmann), with 2 additional SAT outputs (F sockets). Note: To be used only with intermediate ring of the switch program. EAN: 4011334193050.
