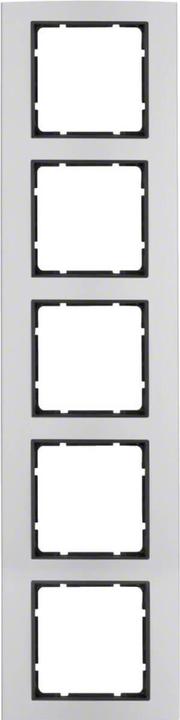

Berker Frame 5f.alu 10153004

Manufacturer: Berker
Description: Frame 5f.alu
Type: 10153004
Number of units: 5
Mounting direction: horizontal and vertical
Number of units horizontal: 5
Number of units vertical: 5
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: yes
Text field/labeling area: no
Material: Metal
Material quality: Aluminum
Halogen-free: yes
Antibacterial treatment: no
Surface protection: anodized/eloxated
Surface finish: matte
Color: alu/anthracite
RAL number (similar): 9006
Transparent: no
With flap cover: no
Protection class (IP): IP20
Impact resistance: IK07
Mounting type: clamp mounting
Width: 365.1 mm
Height: 90.7 mm
Depth: 9.5 mm
Installation width: 56 mm
Installation height: 56 mm
Diameter of hole (opening): 0 mm

Berker Frame 5f.alu 10153004: further details frame 5-fold B.3 Alu/anthracite. Cover frame for vertical and horizontal mounting. For use with anthracite-colored central pieces. Flush-mounted installation, surface/design program, 5-fold. Material: Aluminum and plastic, thermoplastic, shatterproof, halogen-free. EAN: 4011334223153.
