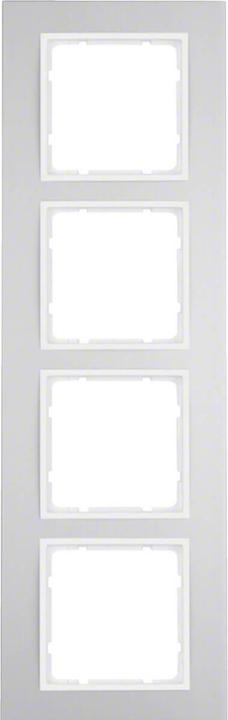

Berker Frame 4f.alu 10143004

Manufacturer: Berker
Description: Frame 4f.alu
Type: 10143004
Number of units: 4
Mounting direction: horizontal and vertical
Number of units horizontal: 4
Number of units vertical: 4
With mounting frame: no
Flush-mounted installation: yes
Suitable for flush-mounted box: no
Suitable for device installation channel: yes
Suitable for built-in installation: yes
Text field/labeling area: no
Material: Metal
Material quality: Aluminum
Halogen-free: yes
Antibacterial treatment: no
Surface protection: anodized
Surface finish: matte
Color: alu/anthracite
RAL number (similar): 9006
Transparent: no
With flap cover: no
Protection class (IP): IP20
Impact resistance: IK07
Mounting type: clamp mounting
Width: 294.1 mm
Height: 90.7 mm
Depth: 9.5 mm
Installation width: 56 mm
Installation height: 56 mm
Diameter of hole (opening): 0 mm

Berker Frame 4f.alu 10143004: additional details for 4-fold frame B.3 Alu/anthracite. Cover frame for vertical and horizontal mounting. For use with anthracite-colored central pieces. Flush-mounted installation, surface/design program, 4-fold. Material: Aluminum and plastic, thermoplastic, shatterproof, halogen-free.
