The Doepke DFS2 025-2/0,03-F is a highly advanced residual current circuit breaker specifically designed for use in single-phase networks. With a rated voltage of 230 V and a rated current of 25 A, this switch provides reliable protection against dangerous residual currents of up to 0.03 A. The DFS2 025-2/0,03-F is a two-pole switch that is mounted on a DIN rail and is characterized by its compact design, occupying only two modular units. The high rated insulation voltage of 400 V and short-circuit strength of 10 kA ensure safe operation in various environments. The switch is suitable for operation in a temperature range of -25 to 40 °C and offers an IP20 protection rating, which protects it from dust and contact. The large double-deck terminals allow for the connection of conductors with cross-sections of up to 50 mm², increasing installation flexibility.

• Two-pole residual current circuit breaker for single-phase networks
• Type F, sensitive to mixed frequencies for additional protection

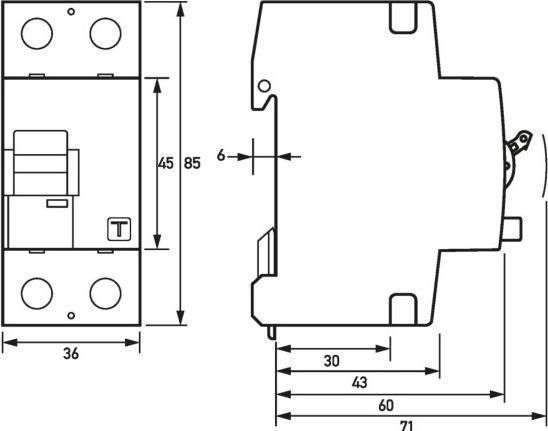

• Compact design occupying only two modular units
• High short-circuit strength of 10 kA
• Operating temperature range of -25 to 40 °C.
