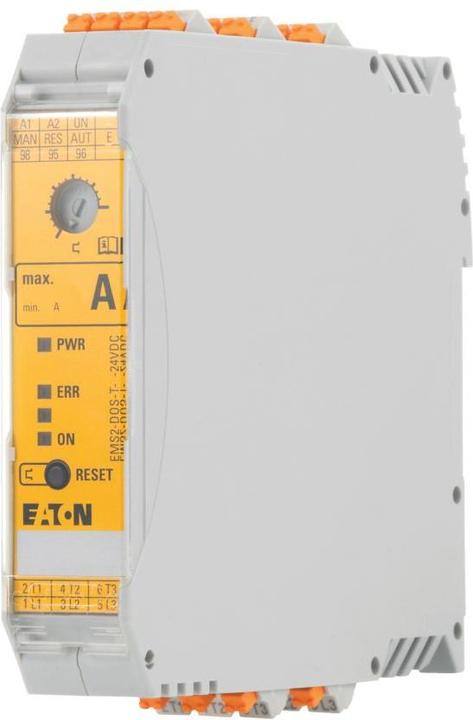

The EATON EMS2-DOS-T-3-24VDC is an electronic motor starter designed for the direct starting of three-phase motors. With an operating voltage of 24 V DC, this device offers a reliable solution for controlling motors with a maximum rated operational power of 0.06 to 0.75 kW. The EMS2-DOS-T-3-24VDC is equipped with an overload relay that has an adjustable range of 0.18 to 3 A, ensuring effective motor protection. Safety features include an emergency stop function as well as a safety limit switch circuit principle with bypass. The device meets the requirements of relevant standards and regulations, including IEC/EN 60947-4-2 and ISO 13849, and is approved for use in explosive atmospheres according to ATEX 94/9/EC. The push-in terminals provide an easy and secure connection option.

• Safety limit switch with bypass for increased safety
• Approval for use in explosive atmospheres according to ATEX
• Adjustable range of the overload relay from 0.18 to 3 A
• Easy connection options through push-in terminals
• Complies with international standards such as IEC/EN 60947-4-2 and ISO 13849.
