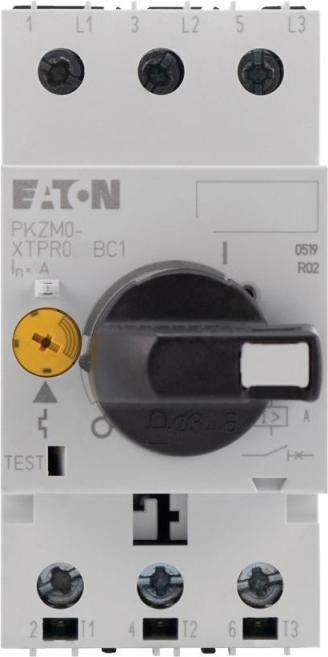

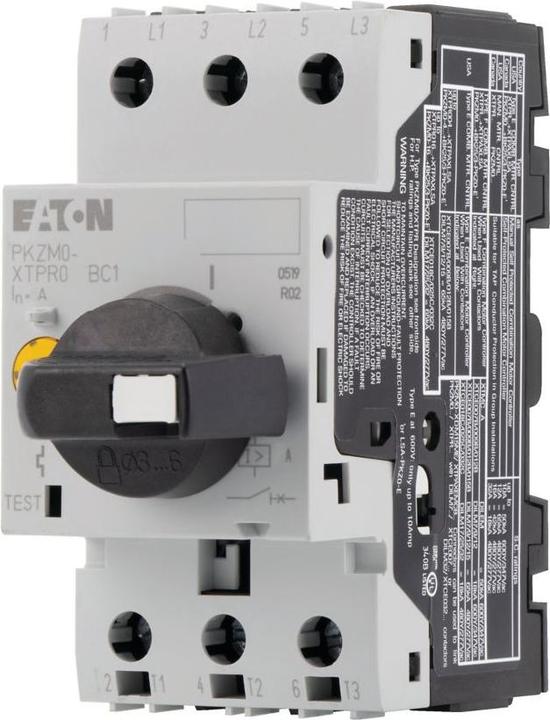

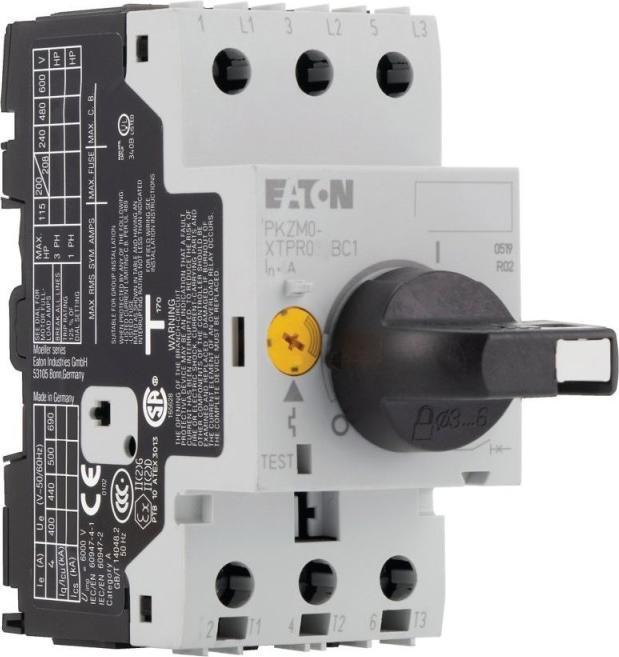

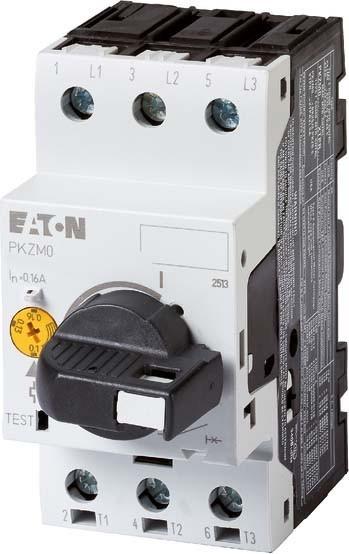

Eaton Motor protection switch
rated current2
Product details
The motor protection switch from Eaton is a reliable device designed according to the IEC/EN60947 standards. It provides an effective solution for protecting electric motors against overload and short circuits. With a lockable rotary knob, it allows for safe operation and is suitable for installation in various applications. The switch is sensitive to phase failure and features adjustable overload and instantaneous short circuit protection mechanisms. Installation can be done using either screw or snap mounting, simplifying the setup process. With a rated operating voltage of up to 690V and an IP20 protection rating, this motor protection switch is designed for use in industrial environments. It is also finger-safe according to VDE 0106 T. 100, providing additional safety. Accessories such as auxiliary switches and voltage release devices are also available to enhance functionality.
- Adjustable overload and short circuit protection mechanisms
- Finger-safe according to VDE 0106 T. 100
- Mounting options: screw and snap mounting
- Sensitive to phase failure
- Available accessories to expand functionality.
Circuit breaker type | Motor protection switch |
Length | 76 mm |
Width | 45 mm |
number of poles | 3 |
Item number | 36754640 |
Manufacturer | Eaton |
Category | Residual-current device |
Manufacturer no. | 265342 |
Release date | 28.6.2023 |
Circuit breaker type | Motor protection switch |
Mounting type | Screw fastening |
number of poles | 3 |
Tripping characteristic | Sluggish --- |
Rated current | 16 A |
voltage type | AC/DC |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 76 mm |
Width | 45 mm |
Height | 93 mm |
