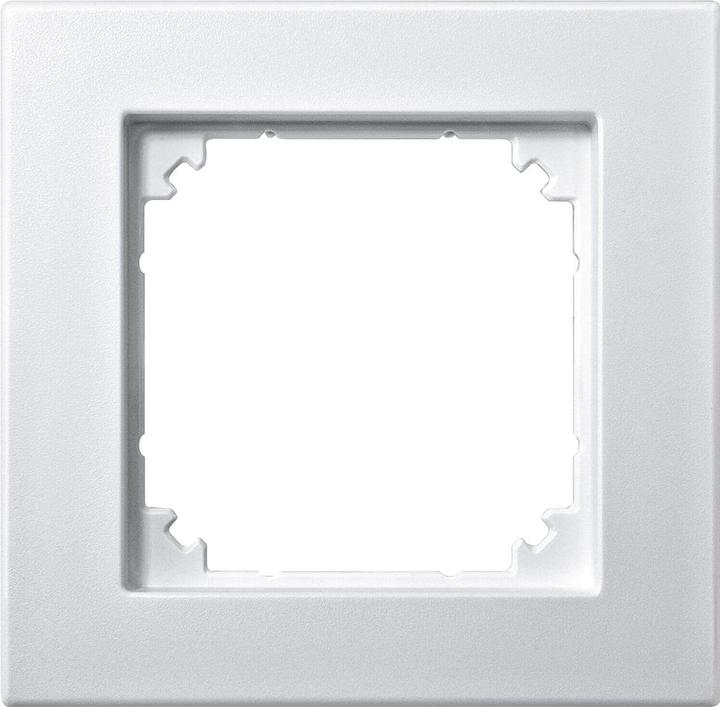

Merten Frame 1f.pws 488119

Manufacturer: Merten
Description: Frame 1f.pws flush mount
Type: 488119
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: no
Suitable for built-in installation: no
Text field/labeling area: no
Material: Polycarbonate
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Color: polar white
RAL number (similar): 9010
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Mounting type: clamp/screw fastening
Width: 85.8 mm
Height: 83.4 mm
Depth: 12.5 mm
Installation width: 85.8 mm
Installation height: 83.4 mm
Drilling diameter (opening): 60 mm

Merten Frame 1f.pws 488119: additional details
For flush mounting in the wall. To be completed with plaster adapter for M-PLAN II frame, flush-mounted installation M-PLAN II 512403. Accessory formwork adapter M-PLAN II 512499. Material thermoplastic fine matte. Color polar white. EAN: 4011281897506.
