Elbro Frame
More than 10 pieces in stock at supplier
Length2
Number of inlets3
Width2
Product details

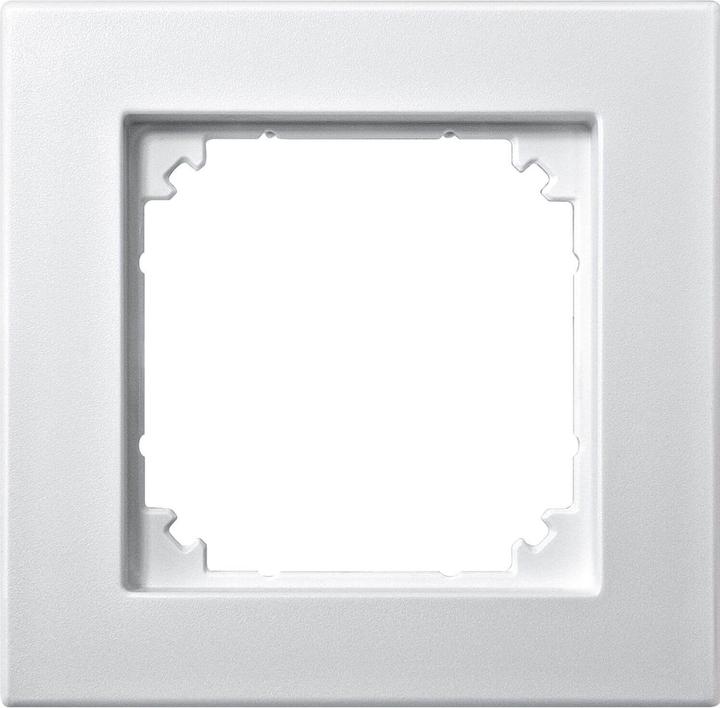

Merten Frame 1f.pws 486119
Manufacturer: Merten
Description: Frame 1f.pws
Type: 486119
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for floor box: no
Suitable for device installation channel: no
Suitable for built-in installation: no
Text field/labeling area: no
Material: Polycarbonate
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Color: polar white
RAL number (similar): 9010
Transparent: no
With flap cover: no
Protection class (IP): IP20
Impact resistance: IK02
Mounting type: clamp/screw fastening
Width: 85.8 mm
Height: 83.4 mm
Depth: 10.1 mm
Installation width: 0 mm
Installation height: 0 mm
Drilling diameter (opening): 60 mm
Merten Frame 1f.pws 486119: additional details material thermoplastic satin finish. Color polar white.
Colour | White |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Width | 85.80 mm |
Item number | 17942158 |
Manufacturer | Elbro |
Category | Accessories switch programme |
Manufacturer no. | 486119 |
Release date | 16.12.2021 |
Colour | White |
Exact colour description | Polar white |
Material group | Plastic |
Material | Polycarbonate |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
Mounting direction | Horizontal |
Additional properties | Halogen-free |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 10.10 mm |
Width | 85.80 mm |
Height | 83.40 mm |
Diameter | 60 mm |
Product Safety |
