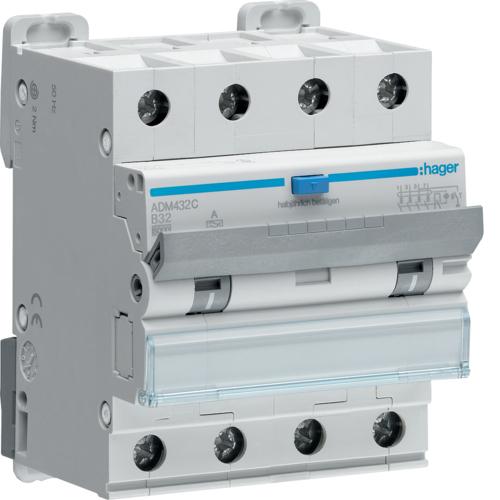

The Hager ADM432C is a combination RCD/MCB protection switch designed for use in electrical installations. With an input voltage of 230 to 400 V, this device offers a reliable solution for protecting electrical systems against overload and fault currents. The protection switch is suitable for mounting on a DIN rail and features a compact design that allows for easy integration into existing control cabinets. With a rated current of 32 A and a type B tripping characteristic, the ADM432C is ideal for use in residential and commercial buildings. The IPX2 protection rating ensures that the device is protected against water ingress, enhancing safety and durability.
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Length | 70 mm |
Width | 71 mm |
number of poles | 4 |
Item number | 35580920 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | ADM432C |
Release date | 17.5.2023 |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Mounting type | Screw fastening |
number of poles | 4 |
Tripping characteristic | B |
Rated current | 32 A |
Rated current | 0.03 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IPX2 |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 71 mm |
Height | 84 mm |
