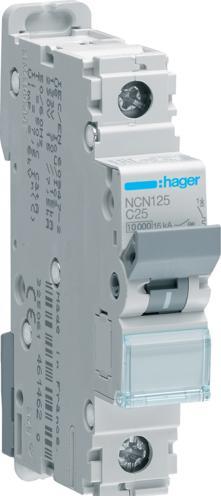

The Hager NCN125 is a high-quality circuit breaker designed for use in electrical installations. With a type C tripping characteristic and a rated current of 25 A, this single-pole switch provides reliable protection against overload and short circuits. It meets the requirements of the DIN EN 60898-1 standard, making it suitable for safe operation in various applications. The switch is designed for an AC input voltage of 230 to 400 V and offers a high rated insulation voltage of 500 V. The IP20 protection class ensures that the switch is protected against contact, enhancing safety during installation and use. The Hager NCN125 is easy to install and allows for flexible handling with the option to add additional devices later. It also features a practical labeling option directly on the device, making identification and use easier.
Circuit breaker type | Miniature circuit breaker |
Length | 70 mm |
number of poles | 1 |
Mounting type | Top-hat rail |
Item number | 32147306 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | NCN125 |
Release date | 16.11.2022 |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Top-hat rail |
number of poles | 1 |
Tripping characteristic | C/10 ka |
Rated current | 25 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
