Hager MBN206. Number of poles: 2P. AC input frequency: 50/60 Hz, Nominal current output: 6 A.

Price in EUR including VAT
Ratings
Delivered between Sat, 11.10. and Tue, 14.10.
10 pieces in stock at supplier
free shipping

Product details

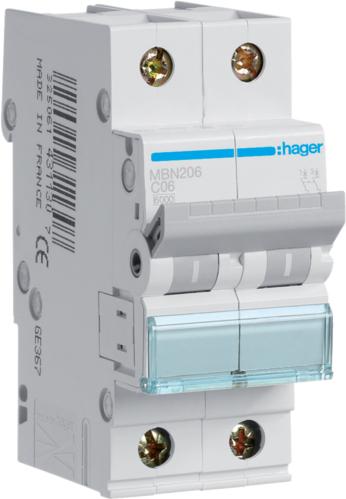

Hager Circuit Breaker MBN206

Manufacturer: Hager
Designation: 2-pole Circuit Breaker B-6A, 6kA
Type: MBN206
Installation Depth: 70 mm
Tripping Characteristic: B
Total Number of Poles: 2
Number of Protected Poles: 2
Rated Current: 6 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Uimp: 4 kV
Type of Voltage: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Rated Switching Capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50..60 Hz
Power Loss: 2.5 W
Energy Limitation Class: 3
Flush Mounting: yes
Switched Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: yes
Width in Division Units: 2
Protection Class (IP): IP20
Ambient Temperature During Operation: -25..70 °C
Connectable Conductor Cross-section Multi-stranded: 1..25 mm²
Connectable Conductor Cross-section Single-stranded: 1..35 mm²
Explosion Protected: no

Hager Circuit Breaker MBN206: Additional Details
2-pole circuit breaker 6kA B-characteristic 6A 2 modules. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
70 mm
Width
35 mm
number of poles
2
Mounting type
Flush-mounted
Item number
17815249

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MBN206
Release date
9.12.2021

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
Mounting type
Screw fastening
number of poles
2
Tripping characteristic
B
Rated current
0.03 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
35 mm
Height
83 mm
