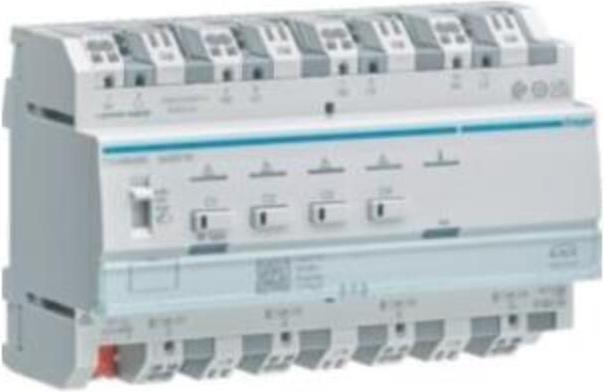

Hager Universal Dimmer Actuator TYAS664AN

Manufacturer: Hager
Designation: Universal Dimmer Actuator 4-fold KNX Secure
Type: TYAS664AN
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Design: Dimmer Actuator
Mounting Type: REG
Width in Division Units: 8
With Bus Coupling: yes
Bus Module Removable: no
Secondary Input: no
Local/Manual Operation: yes
With LED Display: yes
Number of Outputs: 4
Output Power: 300-1200 W
Power Add-On Usable: no
Load Type: universal
Max Control Current: 5200 mA
Max Switching Power LED: 1200 W
Voltage: 30 V
Parallel Operation Possible: yes
Frequency: 50-60 Hz
Protection Class (IP): IP20

The Hager Universal Dimmer Actuator TYAS664AN is a 4-fold KNX Secure dimmer actuator with 4x300W, suitable for ESL/LED and combinable. It allows for switching and dimming as well as automatic load type detection via push button mode on the external sensor, on the device, or through an object. The professional mode allows for mode selection on the device or via bus access.

It can control dimmable LEDs, energy-saving lamps, incandescent lamps, high-voltage halogen lamps, and low-voltage halogen lamps with conventional or electronic transformers. The device translates bus information into corresponding commands.

Functions: Dimming, Switching, Forced Operation, Timing, Switch-Off Warning, Scene Recall (64 per channel, each with its own ramp-up time), manual operation per dimming output (lockable) and LED switching status display. The dimming channels can be connected in various combinations for increased power.

Protection against overheating, overload, and short circuit is provided. Additionally, the device detects the current flow of the light source via a status object. There is a labeling option directly on the device and the possibility of remote firmware updates via the ETS app.
