Hensel Cable Junction Box FK 0404

Manufacturer: Hensel
Designation: Cable junction box 1.5 to 4 mm², 5-pole
Type: FK 0404
Max. conductor cross-section: 4 mm²
Fitted with: Screw terminal
Shape: Square
Mounting type: Wall/Ceiling mounting
For pipe diameter: Other
Rear entry: No

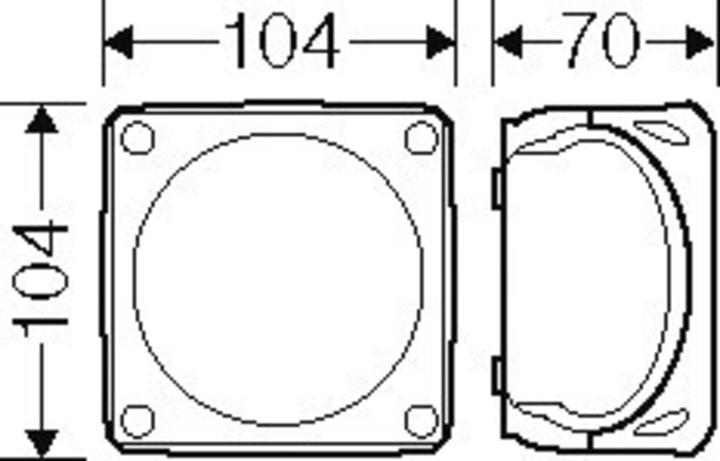

Length: 104 mm
Width: 104 mm
Depth: 70 mm
Stackable: No
Number of entries: 7
Type of housing entry: Pre-formed
Material: Plastic
Halogen-free: Yes
Surface protection: Other
Color: Orange
Protection class (IP): IP66
Cover design: Other
Cover fastening: Screwed
Pourable: No
Supplied with casting compound: No
Seal-able: Yes
Rated insulation voltage Ui: 400 V
Function maintenance: E90
With shielding: No
Weather-resistant: No
Operating temperature: -25 to 40 °C
Explosion-proof version: No
For Ex-zone gas: None
For Ex-zone dust: None

Hensel Cable Junction Box FK 0404: Additional Details

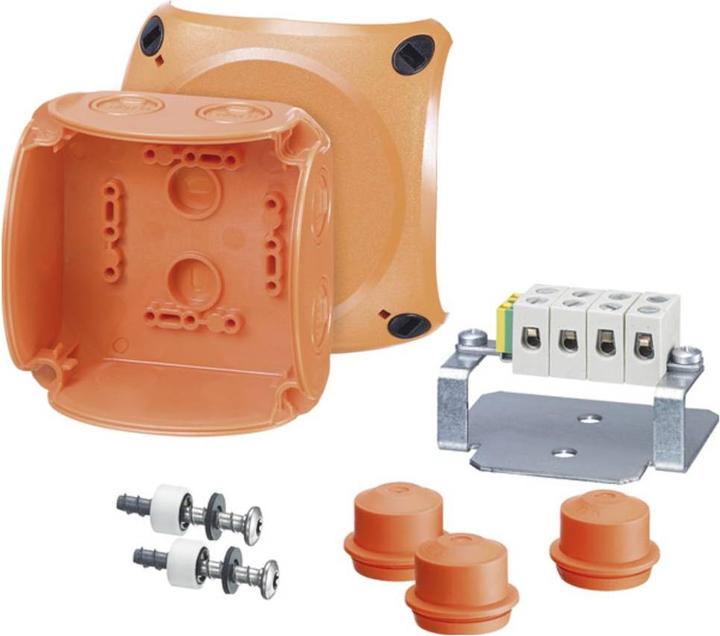

Cable junction box made of high-quality thermoplastic with function maintenance in case of fire when used with function-maintaining cables. Function maintenance class E30 to E90. Suitable for surface-mounted applications in buildings or protected outdoor installations. Standardly equipped with screw anchors, high-temperature resistant ceramic terminal for copper conductors, cable entry through metric pre-formed entries in the housing walls via the included plug-in cable bushings. Cover fastening with quick locks. With 5-pole terminal. As a junction box for up to 2.5 mm² or connection box for up to 4 mm². Mounting cable bushings type AKMF available as accessories.
