Hensel cable junction box FK 0402

Manufacturer: Hensel
Designation: Cable junction box 1.5 and 2.5 qmm, 5 pin
Type: FK 0402
Max. conductor cross-section: 2.5 mm²
Fitting: Terminal
Shape: Square
Mounting type: Wall/ceiling mounting
For pipe diameter: Other
Entry from rear: No
Length: 104 mm
Width: 104 mm
Depth: 70 mm
Bayable: No
Number of entries: 7
Type of housing feed-through: Pre-stamped
Material: Plastic
Halogen-free: Yes
Surface protection: Other
Color: Orange
Protection class (IP): IP66
Cover design: Other
Cover fixing: Screwed
Pourable: No
Supplied with potting compound: No
Sealable: Yes
Rated insulation voltage Ui: 400 V
Functional integrity: E90
With shielding: No
Weatherproof: No
Operating temperature: -25 to 40 °C
Explosion-proof design: No
For Ex-zone gas: Without
For Ex-zone dust: Without

Further details:

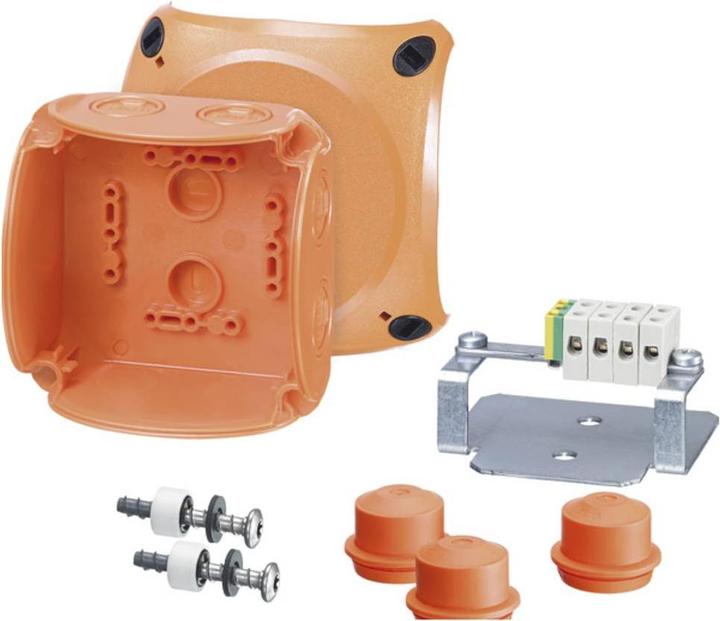

Cable junction box made of high-quality thermoplastic with functional integrity in case of fire in connection with function-preserving cables. Functional integrity class E30 to E90. For surface-mounted applications in buildings or protected installation outdoors. Standard with screw anchor, high temperature resistant ceramic clamp for copper conductors, cable entry via metric pre-stamping in enclosure walls via enclosed plug-in cable glands. Cover fastening with quick-release fasteners. With 5-pole terminal. As junction box up to 1.5 mm² or connection box up to 2.5 mm². Add-on cable glands types AKMF in accessories.
EAN: 4012591126027.
