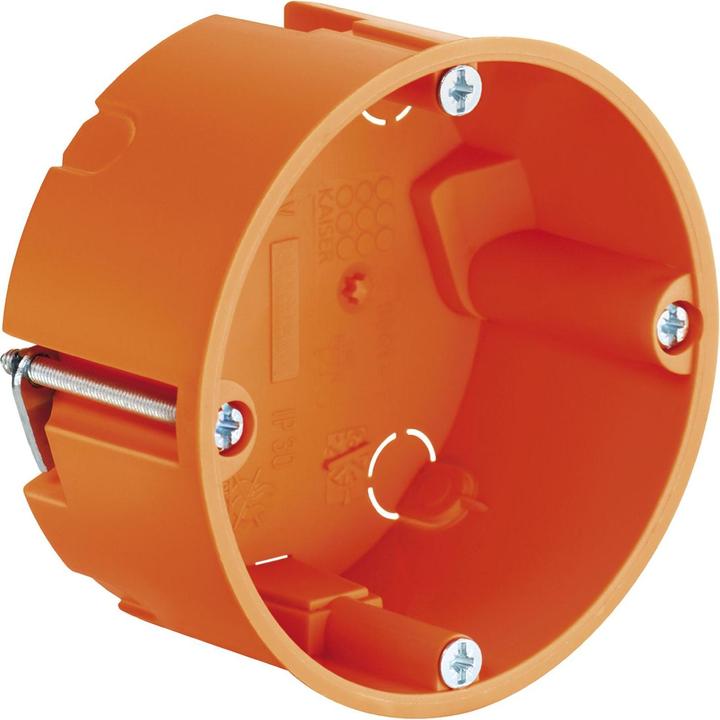

Kaiser Hollow Wall Box 9061-00

Manufacturer: Kaiser
Description: Hollow wall box 68x33.5mm
Type: 9061-00
Mounting type: Hollow wall
Shape: round
Design: Device box
Version: Single
With rotating ring: no
Couplable: yes
Filling: none

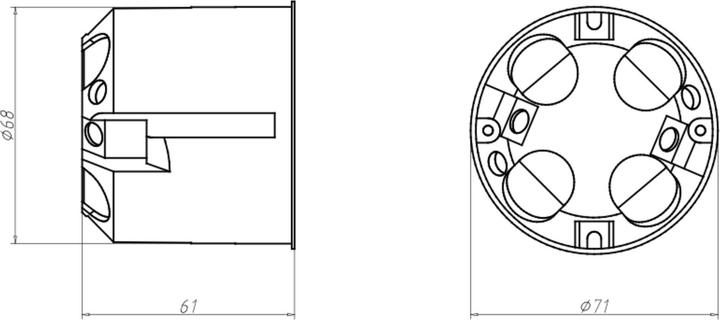

Diameter: 68 mm
Depth: 35 mm
Internal depth: 33.5 mm
For number of device inserts: 1
Device fastening: screws
With screws: yes
Housing entry through breakout opening: yes
Housing entry through sealing membrane: no
Housing entry through pipe connector: no
Housing entry through stepped membrane: no
Roar locking: no
Optional roar locking: no
Rear entry: yes
Number of entries: 4
Material: Plastic
Halogen-free: no
Color: orange
Protection class (IP): IP3X
Cover design: none
Transparent cover: no
Seal-able: no
Function maintenance: without
With shielding: no
Air-tight: no
Light hook fastening: no
Connector: tunnel connector
Special application: other
With partition wall: no

Kaiser Hollow Wall Box 9061-00: further details device box, depth 35 mm (9061-00). The new Kaiser hollow wall installation boxes feature proven tab fastening technology and improved product characteristics. A practical design and a targeted selection of cable and conduit entries allow for a wide range of applications. Additional boxes for special applications, such as installation in thinly clad walls or solid wood walls, complete the diverse range. The VDE certification documents the high quality standards. Installation type: basic installation | Application area: for built-in devices | Milling hole Ø: 68 mm | Depth: 35 mm.
